DAMA-15S-F0

Active

ITT Cannon, LLC

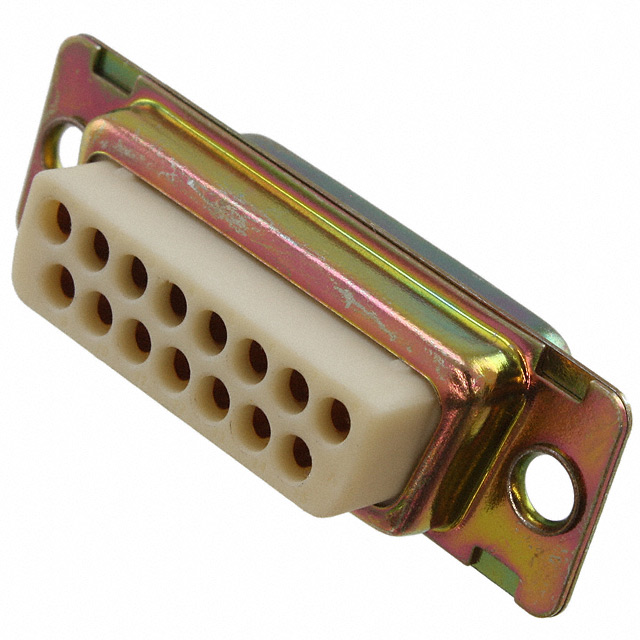

CONN D-SUB HD HOUSING RCPT 15POS

Deep-Dive with AI

DocumentsDAMA15SF0

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	DAMA-15S-F0

Connector Style	High Density, D-Sub
Connector Type	Receptacle for Female Contacts
Contact Type	Signal
Dielectric Material	Thermoplastic
Flange Feature	Housing/Shell (Unthreaded)
Mating Cycles	200
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	15
Number of Rows	3
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Material, Finish	Steel, Yellow Chromate Plated Zinc
Shell Size, Connector Layout [custom]	DE, E
Shell Size, Connector Layout [custom]	1
Shell Size, Connector Layout [custom]	High Density

DAMA Series

Part	Material Flammability Rating	Termination	Current Rating (Amps)	Shell Material, Finish	Contact Type	Color	Contact Finish	Flange Feature	Operating Temperature [Min]	Operating Temperature [Max]	Dielectric Material	Number of Positions	Number of Rows	Shell Size, Connector Layout	Connector Style	Contact Material	Connector Type	Note	Mating Cycles	Mounting Type	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Contact Finish Thickness	Contact Finish Thickness	Shell Size, Connector Layout	Features
ITT Cannon, LLC DAMA15PNM	UL94 V-0	Crimp	7.5 A	Brass Yellow Chromate Plated Cadmium	Signal	White	Gold	Housing/Shell (Unthreaded)	-55 °C	125 °C	Polycyclohexylenedimethylene Terephthalate (PCT)	15	2	2	D-Sub	Copper Alloy	Male Pins Plug
ITT Cannon, LLC DAMA-15S-F0				Steel Yellow Chromate Plated Zinc	Signal			Housing/Shell (Unthreaded)	-55 °C	125 °C	Thermoplastic	15	3		D-Sub High Density		Receptacle for Female Contacts	Contacts Not Included	200	Free Hanging (In-Line)	DE E	1	High Density
ITT Cannon, LLC DAMAM15SA183	UL94 V-0	Crimp	7.5 A	Steel Yellow Chromate Plated Zinc	Signal	Black	Gold	Housing/Shell (Unthreaded)	-55 °C	150 °C	Polycyclohexylenedimethylene Terephthalate (PCT)	15	2	2	D-Sub	Copper Alloy	Receptacle Female Sockets
ITT Cannon, LLC DAMAM15PA101	UL94 V-0	Crimp	7.5 A	Steel Yellow Chromate Plated Cadmium	Signal	Black	Gold	Housing/Shell (Unthreaded)	-55 °C	150 °C	Polycyclohexylenedimethylene Terephthalate (PCT)	15	2	2	D-Sub	Copper Alloy	Male Pins Plug							0.76 Ám	30 Áin
ITT Cannon, LLC DAMAM26SF225	UL94 V-0	Crimp	7.5 A	Stainless Steel	Signal	Black	Gold	Housing/Shell (Unthreaded)	-55 °C	150 °C	Polycyclohexylenedimethylene Terephthalate (PCT)	26	3	2	D-Sub High Density	Copper Alloy	Receptacle Female Sockets							1.27 µm	50 µin	(DA A) High Density
ITT Cannon, LLC DAMAM26PF225	UL94 V-0	Crimp	7.5 A	Stainless Steel	Signal	Black	Gold	Housing/Shell (Unthreaded)	-55 °C	150 °C	Polycyclohexylenedimethylene Terephthalate (PCT)	26	3	2	D-Sub High Density	Copper Alloy	Male Pins Plug							0.76 Ám	30 Áin	(DA A) High Density
ITT Cannon, LLC DAMAM26SA197	UL94 V-0	Crimp	7.5 A	Steel Tin-Nickel Plated	Signal	Black	Gold	Housing/Shell (Unthreaded)	-55 °C	150 °C	Polycyclohexylenedimethylene Terephthalate (PCT)	26	3	2	D-Sub High Density	Copper Alloy	Receptacle Female Sockets							1.27 µm	50 µin	(DA A) High Density
ITT Cannon, LLC DAMAM26PK87	UL94 V-0	Crimp	7.5 A	Steel Tin-Nickel Plated	Signal	Black	Gold	Housing/Shell (Unthreaded)	-55 °C	150 °C	Polycyclohexylenedimethylene Terephthalate (PCT)	26	3	2	D-Sub High Density	Copper Alloy	Male Pins Plug							0.76 Ám	30 Áin	(DA A) High Density	Grounding Indents
ITT Cannon, LLC DAMA15SK126	UL94 V-0	Crimp	7.5 A	Steel Tin-Nickel Plated	Signal	White	Gold	Housing/Shell (Unthreaded)	-55 °C	125 °C	Polycyclohexylenedimethylene Terephthalate (PCT)	15	2	2	D-Sub	Copper Alloy	Receptacle Female Sockets							0.76 Ám	30 Áin
ITT Cannon, LLC DAMAMK15P	UL94 V-0	Crimp	7.5 A	Steel Yellow Chromate Plated Zinc	Signal	Black	Gold	Housing/Shell (Unthreaded)	-55 °C	150 °C	Polycyclohexylenedimethylene Terephthalate (PCT)	15	2	2	D-Sub	Copper Alloy	Male Pins Plug							1.27 µm	50 µin

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 31.09
		10	$ 24.00
		25	$ 21.75
		50	$ 20.23
		100	$ 18.85
		250	$ 17.22
		500	$ 16.13

Description

General part information

DAMA Series

Receptacle for Female Contacts Housing D-Sub, High Density Connector 15 Position

Documents

Technical documentation and resources

DAMA15SF0

Datasheet
