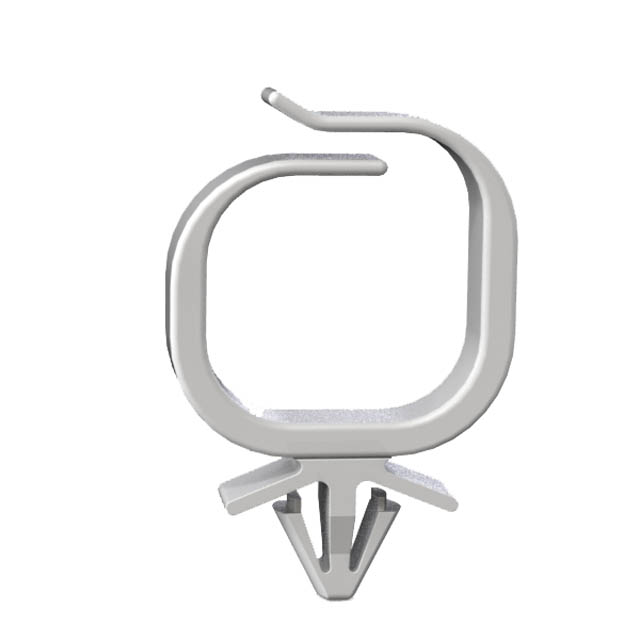

OFNS-16-312-01

Active

Essentra Access Solutions

FASTENER, SADDLE CLAMP, NYLON 6.6 (POLYAMIDE 6.6), NATURAL, 34.3 MM, 6.9 MM

Search across all available documentation for this part.

Active

Essentra Access Solutions

FASTENER, SADDLE CLAMP, NYLON 6.6 (POLYAMIDE 6.6), NATURAL, 34.3 MM, 6.9 MM

Technical Specifications

Parameters and characteristics for this part

Specification	OFNS-16-312-01

Color	Natural
Height [z]	1.35 "
Height [z]	34.29 mm
Length	34.29 mm
Length	1.35 "
Material	Polyamide (PA66), Nylon 6/6
Material Flammability Rating	UL94 V-2
Mounting Type	Arrowhead, Winged
Opening Size [x]	1.13 in
Opening Size [x]	28.7 mm
Opening Size [y]	25.15 mm
Opening Size [y]	0.99 in
Panel Hole Size	0.312 in
Panel Hole Size	7.92 mm
Type	Clip, Wire Saddle
Type Attributes	Round
Width [x]	6.86 mm
Width [x]	0.27 in

Part	Width [x]	Width [x]	Panel Hole Size	Panel Hole Size	Type Attributes	Material Flammability Rating	Features	Material	Type	Length	Length	Mounting Type	Height [z]	Height [z]	Opening Size [y]	Opening Size [y]	Opening Size [x]	Opening Size [x]	Panel Thickness [Max]	Panel Thickness [Min]	Panel Thickness [Max]	Panel Thickness [Min]	Color
Essentra Access Solutions OFNS16-S9.5M-19	6.86 mm	0.27 in	0.374 in	9.5 mm	Round	UL94 V-0	Flame Retardant	Polyamide (PA66) Nylon 6/6	Clip Wire Saddle	34.29 mm	1.35 "	Arrowhead	1.35 "	34.29 mm	25.15 mm	0.99 in	1.13 in	28.7 mm	0.079 "	0.031 "	2 mm	0.79 mm	Natural
Essentra Access Solutions OFNS-16-312-01	6.86 mm	0.27 in	0.312 in	7.92 mm	Round	UL94 V-2		Polyamide (PA66) Nylon 6/6	Clip Wire Saddle	34.29 mm	1.35 "	Arrowhead Winged	1.35 "	34.29 mm	25.15 mm	0.99 in	1.13 in	28.7 mm					Natural

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Clip, Wire Saddle Natural Arrowhead, Winged 1.130" L x 0.990" H (28.70mm x 25.15mm)
