N4614-2000-RB

Active

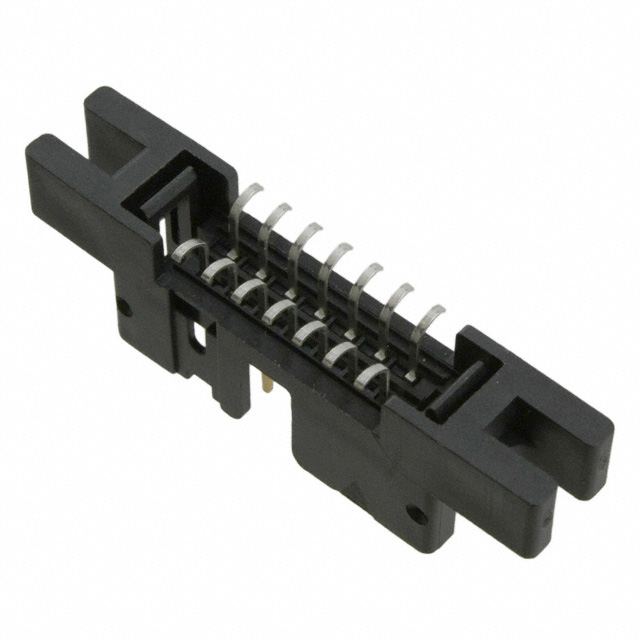

CONN HEADER SMD 14POS 2.54MM

Search across all available documentation for this part.

Active

CONN HEADER SMD 14POS 2.54MM

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	N4614-2000-RB	N4614 Series

Connector Type	Header	Header
Contact Finish - Mating	Gold	Gold
Contact Finish - Post	Tin	Tin
Contact Finish Thickness - Mating	30 Áin	30 Áin
Contact Finish Thickness - Mating	0.76 Ám	0.76 Ám
Contact Finish Thickness - Post	300 µin	300 µin
Contact Finish Thickness - Post	7.62 µm	7.62 µm
Contact Material	Copper Alloy	Copper Alloy
Contact Shape	Square	Square
Contact Type	Male Pin	Male Pin
Current Rating (Amps)	1.25 A	1.25 A
Fastening Type	Push-Pull	Push-Pull, Latch Lock/Eject Hooks, Long
Insulation Color	Black	Black
Insulation Height	0.525 in	0.525 in
Insulation Height	13.34 mm	13.34 mm
Insulation Material	Polyester, Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT)	Polyester, Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT)
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Surface Mount	Surface Mount
Number of Positions	14	14
Number of Positions Loaded	All	All
Number of Rows	2	2
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-55 °C	-55 °C
Pitch - Mating	0.1 in	0.1 in
Pitch - Mating	2.54 mm	2.54 mm
Row Spacing - Mating [x]	2.54 mm	2.54 mm
Row Spacing - Mating [x]	0.1 in	0.1 in
Shrouding	Shrouded - 4 Wall	Shrouded - 4 Wall
Style	Board to Cable/Wire	Board to Cable/Wire
Termination	Solder	Solder

CONN HEADER SMD 14POS 2.54MM

Part	Operating Temperature [Max]	Operating Temperature [Min]	Insulation Height	Insulation Height	Current Rating (Amps)	Contact Material	Number of Positions Loaded	Mounting Type	Termination	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Rows	Fastening Type	Pitch - Mating	Pitch - Mating	Style	Number of Positions	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Shape	Material Flammability Rating	Insulation Material	Contact Type	Connector Type	Insulation Color	Contact Finish - Post	Shrouding	Contact Finish - Mating	Contact Finish Thickness - Post	Contact Finish Thickness - Post
3M N4614-2000-RB	105 ░C	-55 °C	0.525 in	13.34 mm	1.25 A	Copper Alloy	All	Surface Mount	Solder	30 Áin	0.76 Ám	2	Push-Pull	0.1 in	2.54 mm	Board to Cable/Wire	14	2.54 mm	0.1 in	Square	UL94 V-0	Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	Male Pin	Header	Black	Tin	Shrouded - 4 Wall	Gold	300 µin	7.62 µm
3M N4614-2300-RB	105 ░C	-55 °C	0.525 in	13.34 mm	1.25 A	Copper Alloy	All	Surface Mount	Solder	30 Áin	0.76 Ám	2	Latch Lock/Eject Hooks, Long	0.1 in	2.54 mm	Board to Cable/Wire	14	2.54 mm	0.1 in	Square	UL94 V-0	Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	Male Pin	Header	Black	Tin	Shrouded - 4 Wall	Gold	300 µin	7.62 µm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Connector Header Surface Mount 14 position 0.100" (2.54mm)
