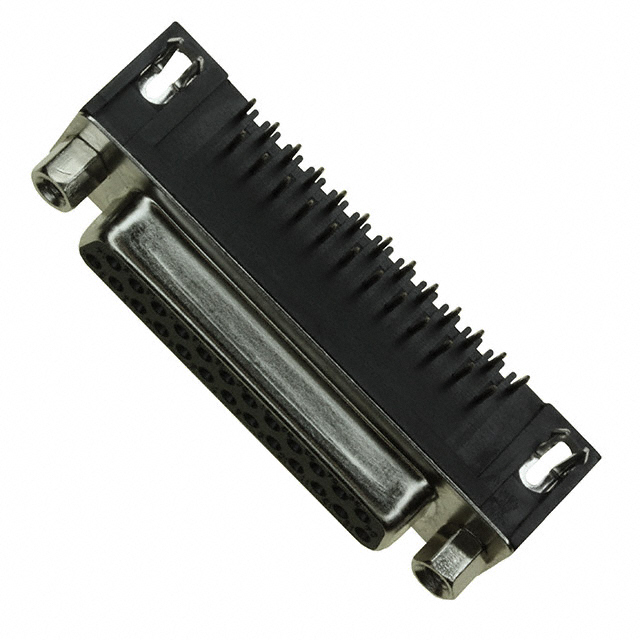

D SUB CONNECTOR, RIGHT ANGLE, DB25, 25 CONTACTS, RECEPTACLE, SOLDER, DB, 182 SERIES, STEEL BODY

182-025-213R561

Active

NorComp Inc.

D SUB CONNECTOR, RIGHT ANGLE, DB25, 25 CONTACTS, RECEPTACLE, SOLDER, DB, 182 SERIES, STEEL BODY

Description Specifications Series Pricing CAD Documents

Description

General part information

182-025 Series

The 182 series 0.318-inch footprint economy version right angle D-sub Connectors. It has gold flash-plated brass contact with PA9T insulator and nickel plated, steel shell. It also has copper alloy nickel-plated rivet, SPCC tin-plated board lock and zinc alloy nickel-plated screw lock.

Technical Specifications

Parameters and characteristics for this part

Specification	182-025-213R561

Backset Spacing	0.318 in
Color	Black
Connector Layout	DB, B
Connector Style	D-Sub
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	0
Contact Finish Thickness	Flash
Contact Finish Thickness (string set options)	Flash
Contact Type	Signal
Current Rating	5 A
Dielectric Material	Polyamide (PA9T), Nylon 9T
Features	Board Lock
Finish	Nickel Plated
Flange Feature	Female Screwlock (4-40), Mating Side
Material Flammability Rating	UL94 V-0
Mounting Type	Panel Mount, Through Hole, Right Angle
Number of Positions	25
Number of Rows	2
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-55 °C
Shell Material	Steel
Shell Size	3
Termination	Solder

182-025 Series

Part	Termination	Backset Spacing	Contact Finish	Connector Style	Number of Positions	Mounting Type	Current Rating	Shell Material	Finish	Number of Rows	Connector Type	Contact Type	Flange Feature	Features	Material Flammability Rating	Contact Finish Thickness (string set options)	Contact Finish Thickness	Shell Size	Connector Layout	Dielectric Material	Contact Material	Operating Temperature (Min)	Operating Temperature (Max)	Color
NorComp Inc. 182-025-113R451	Solder	0.318 in	Gold	D-Sub	25	Panel Mount Right Angle Through Hole	5 A	Steel	Nickel Plated	2	Male Pins Plug	Signal	Housing Shell (4-40)	Grounding Indents	UL94 V-0	Flash	Flash	3	B DB	Nylon 9T Polyamide (PA9T)	Brass	-55 °C	105 °C	Black
NorComp Inc. 182-025-113R431	Solder	0.318 in	Gold	D-Sub	25	Panel Mount Right Angle Through Hole	5 A	Steel	Nickel Plated	2	Male Pins Plug	Signal	Housing Shell (Unthreaded)	Grounding Indents	UL94 V-0	Flash	Flash	3	B DB	Nylon 9T Polyamide (PA9T)	Brass	-55 °C	105 °C	Black
NorComp Inc. 182-025-112-431	Solder	0.318 in	Gold	D-Sub	25	Panel Mount Right Angle Through Hole	5 A	Steel	Tin Plated	2	Male Pins Plug	Signal	Housing Shell (Unthreaded)	Grounding Indents	UL94 V-0	Flash	Flash	3	B DB	Glass Filled Polyester		-55 °C	105 °C	Black
NorComp Inc. 182-025-112-181	Solder	0.318 in	Gold	D-Sub	25	Panel Mount Right Angle Through Hole	5 A	Steel	Tin Plated	2	Male Pins Plug	Signal	Female Screwlock (4-40) Mating Side	Ground Strap Grounding Indents	UL94 V-0	Flash	Flash	3	B DB	Glass Filled Polyester		-55 °C	105 °C	Black
NorComp Inc. 182-025-212-531	Solder	0.318 in	Gold	D-Sub	25	Panel Mount Right Angle Through Hole	5 A	Steel	Tin Plated	2	Female Sockets Receptacle	Signal	Housing Shell (4-40)	Board Lock	UL94 V-0	Flash	Flash	3	B DB	Glass Filled Polyester		-55 °C	105 °C	Black
NorComp Inc. 182-025-212-451	Solder	0.318 in	Gold	D-Sub	25	Panel Mount Right Angle Through Hole	5 A	Steel	Tin Plated	2	Female Sockets Receptacle	Signal	Housing Shell (4-40)		UL94 V-0	Flash	Flash	3	B DB	Glass Filled Polyester		-55 °C	105 °C	Black
NorComp Inc. 182-025-213R481	Solder	0.318 in	Gold	D-Sub	25	Panel Mount Right Angle Through Hole	5 A	Steel	Nickel Plated	2	Female Sockets Receptacle	Signal	Female Screwlock (4-40) Mating Side		UL94 V-0	Flash	Flash	3	B DB	Nylon 9T Polyamide (PA9T)		-55 °C	105 °C	Black
NorComp Inc. 182-025-112-171	Solder	0.318 in	Gold	D-Sub	25	Panel Mount Right Angle Through Hole	5 A	Steel	Tin Plated	2	Male Pins Plug	Signal	Housing Shell (4-40)	Ground Strap Grounding Indents	UL94 V-0	Flash	Flash	3	B DB	Glass Filled Polyester		-55 °C	105 °C	Black
NorComp Inc. 182-025-213R561	Solder	0.318 in	Gold	D-Sub	25	Panel Mount Right Angle Through Hole	5 A	Steel	Nickel Plated	2	Female Sockets Receptacle	Signal	Female Screwlock (4-40) Mating Side	Board Lock	UL94 V-0	Flash	Flash	3	B DB	Nylon 9T Polyamide (PA9T)		-55 °C	105 °C	Black
NorComp Inc. 182-025-213R431	Solder	0.318 in	Gold	D-Sub	25	Panel Mount Right Angle Through Hole	5 A	Steel	Nickel Plated	2	Female Sockets Receptacle	Signal	Housing Shell (Unthreaded)		UL94 V-0	Flash	Flash	3	B DB	Nylon 9T Polyamide (PA9T)		-55 °C	105 °C	Black
