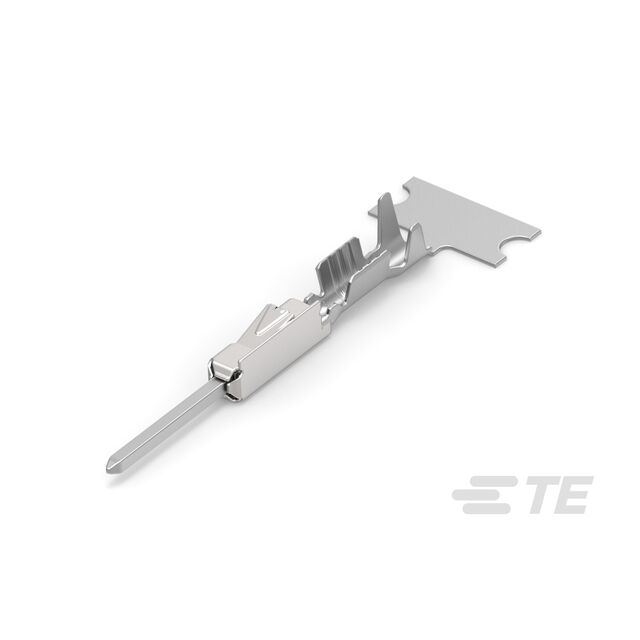

5-963716-1
ActiveTE Connectivity AMP Connectors
CONN PIN 18-20AWG CRIMP TIN
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
5-963716-1
ActiveTE Connectivity AMP Connectors
CONN PIN 18-20AWG CRIMP TIN
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 5-963716-1 | 963716 Series |
|---|---|---|
| Contact Finish | Tin | Tin |
| Contact Termination | Crimp | Crimp |
| Pin or Socket | Pin | Tab, Pin |
| Type | - | Stamped |
| Wire Gauge [Max] | 20 AWG | 20 AWG |
| Wire Gauge [Min] | 17.5 AWG | 17.5 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.19 | |
| 10 | $ 0.16 | |||
| 25 | $ 0.15 | |||
| 50 | $ 0.14 | |||
| 100 | $ 0.14 | |||
| 250 | $ 0.13 | |||
| 500 | $ 0.12 | |||
| 1000 | $ 0.11 | |||
| 2500 | $ 0.11 | |||
| Tape & Reel (TR) | 10000 | $ 0.11 | ||
| 30000 | $ 0.11 | |||
963716 Series
TERM MQS 0.63 SN TAB LL 0.5-0.75
| Part | Contact Termination | Type | Contact Finish | Pin or Socket | Wire Gauge [Min] | Wire Gauge [Max] |
|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 6-963716-1 | Crimp | Stamped | Tin | Tab | 17.5 AWG | 20 AWG |
TE Connectivity AMP Connectors 963716-1 | Crimp | Tin | Pin | 17.5 AWG | 20 AWG | |
TE Connectivity AMP Connectors 5-963716-1 | Crimp | Tin | Pin | 17.5 AWG | 20 AWG |
Description
General part information
963716 Series
Pin Contact Tin 18-20 AWG Crimp
