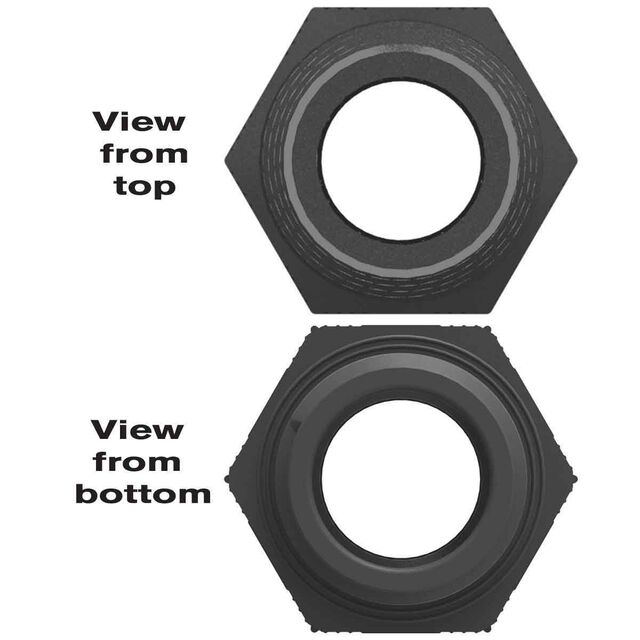

FPB-13R

Active

SAB North America

CABLE GLAND 5-9MM PG13.5

Search across all available documentation for this part.

Active

SAB North America

CABLE GLAND 5-9MM PG13.5

Technical Specifications

Parameters and characteristics for this part

Specification	FPB-13R

Color	Black
Ingress Protection	IP68 - Dust Tight, Waterproof
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-20 C
Outside Cable Diameter (Max) [Max] [diameter]	9 mm
Outside Cable Diameter (Max) [Max] [diameter]	0.354 in
Outside Cable Diameter (Min) [Min]	5 mm
Outside Cable Diameter (Min) [Min]	0.197 in
Panel Hole Size	0.803 in
Panel Hole Size	20.4 mm
Thread Length	10 mm
Thread Length	0.394 in
Thread Size	PG13.5
Type	Cable Gland

CABLE GLAND 5-9MM PG13.5

Part	Type	Color	Panel Hole Size	Panel Hole Size	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Max) [Max] [diameter]	Operating Temperature [Max]	Operating Temperature [Min]	Ingress Protection	Outside Cable Diameter (Min) [Min]	Outside Cable Diameter (Min) [Min]	Thread Size	Thread Length	Thread Length
SAB North America FPB-13R	Cable Gland	Black	0.803 in	20.4 mm	9 mm	0.354 in	100 °C	-20 C	IP68 - Dust Tight, Waterproof	5 mm	0.197 in	PG13.5	10 mm	0.394 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Gland Polyamide (PA6), Nylon 6 PG13.5 Black
