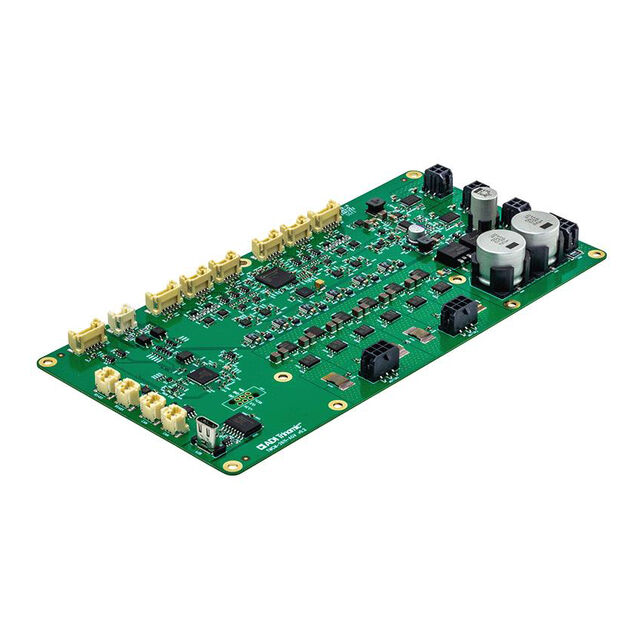

TMCM-2611-AGV
ActiveTHE TMCM-2611-AGV IS A DUAL AXIS SERVO DRIVE PLATFORM FOR 3-PHASE BLDC MOTORS RUNNING WITH UP TO 14ARMS AT +48V.
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | TMCM-2611-AGV |
|---|---|
| Control / Drive Type | Servo DC |
| Current - Output | 10 A |
| Interface | CAN, USB, RS-485 |
| Motor Type | Brushless (BLDC) |
| Mounting Type | Chassis Mount |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | -30 ░C |
| Type | Board |
| Voltage - Load | 48 V |
| Voltage - Supply | 24 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 1075.00 | |
Description
General part information
TMCM-2611-AGV Series
The TMCM-2611-AGV is a dual axis servo drive platform for 3-phase BLDC motors running with up to 14ARMS at +48V. It offers RS485, CAN, and USB interfaces with TMCL™ protocol for communication. TMCM-2611-AGV supports various positions feedback options: incremental quadrature encoder and digital hall sensor.APPLICATIONSRoboticsLaboratory AutomationManufacturingFactory AutomationServo DrivesIndustrial Motor Drives
