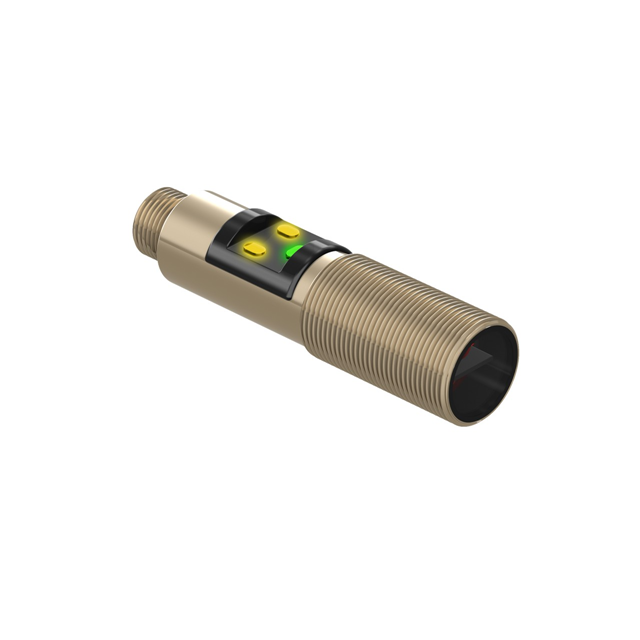

M18-3VPFF75-Q8

Active

BANNER ENGINEERING

M18-3 SERIES: NICKEL PLATED BRASS: FIXED FIELD

Search across all available documentation for this part.

Active

BANNER ENGINEERING

M18-3 SERIES: NICKEL PLATED BRASS: FIXED FIELD

Technical Specifications

Parameters and characteristics for this part

Specification	M18-3VPFF75-Q8

Adjustment Type	Adjustable, 250° Turn Potentiometer
Cable Length	78.74 in
Cable Length	2 m
Connection Method	Cable with Connector
Ingress Protection	IEC 60529 IP67, IP69K
Light Source	Red LED
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-40 °C
Output Configuration	PNP
Response Time	1.5 ms
Sensing Distance	2.953 in
Sensing Distance	75 mm
Voltage - Supply [Max]	30 VDC
Voltage - Supply [Min]	10 VDC

Part	Sensing Method	Sensing Distance	Sensing Distance	Output Configuration	Voltage - Supply [Max]	Voltage - Supply [Min]	Response Time	Ingress Protection	Connection Method	Light Source	Operating Temperature [Min]	Operating Temperature [Max]	Cable Length	Cable Length	Adjustment Type
BANNER ENGINEERING M18-3VNDL-Q8	Diffuse	750 mm	29.528 in	NPN	30 VDC	10 VDC	1.5 ms	IEC 60529 IP67 IP69K	Cable with Connector	Red LED	-40 °C	70 °C	78.74 in	2 m	Adjustable 250° Turn Potentiometer
BANNER ENGINEERING M18-3VPFF50-Q8		50 mm	1.969 in	PNP	30 VDC	10 VDC	1.5 ms	IEC 60529 IP67 IP69K	Cable with Connector	Red LED	-40 °C	70 °C	78.74 in	2 m	Adjustable 250° Turn Potentiometer
BANNER ENGINEERING M18-3VPFF75-Q8		75 mm	2.953 in	PNP	30 VDC	10 VDC	1.5 ms	IEC 60529 IP67 IP69K	Cable with Connector	Red LED	-40 °C	70 °C	78.74 in	2 m	Adjustable 250° Turn Potentiometer
BANNER ENGINEERING M18-3VPFF30-Q8		30 mm	1.181 in	PNP	30 VDC	10 VDC	1.5 ms	IEC 60529 IP67 IP69K	Cable with Connector	Red LED	-40 °C	70 °C	78.74 in	2 m	Adjustable 250° Turn Potentiometer
BANNER ENGINEERING M18-3VPFF150-Q8		15 cm	5.906 in	PNP	30 VDC	10 VDC	1.5 ms	IEC 60529 IP67 IP69K	Cable with Connector	Red LED	-40 °C	70 °C	78.74 in	2 m	Adjustable 250° Turn Potentiometer
BANNER ENGINEERING M18-3VPLV-Q8	Retroreflective	7.5 m	24.61 ft	PNP	30 VDC	10 VDC	1.5 ms	IEC 60529 IP67 IP69K	Cable with Connector	Red LED	-40 °C	70 °C	78.74 in	2 m	Adjustable 250° Turn Potentiometer

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 118.00
Newark	Each	1	$ 120.00

General part information

Optical Sensor 2.953" (75mm) PNP
