826467-5
ActiveTE Connectivity AMP Connectors

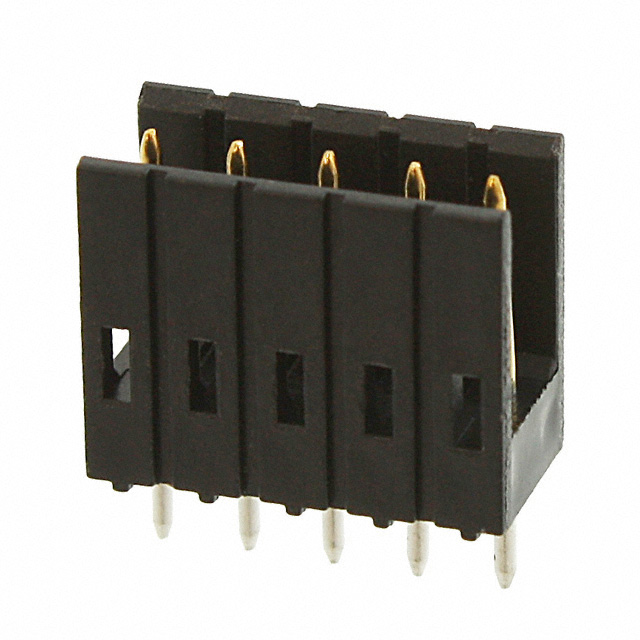

CONN HEADER VERT 5POS 2.54MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
826467-5
ActiveTE Connectivity AMP Connectors
CONN HEADER VERT 5POS 2.54MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 826467-5 | 826467 Series |
|---|---|---|
| Connector Type | Header | Header |
| Contact Finish - Mating | Gold | Gold |
| Contact Finish - Post | Tin | Tin |
| Contact Finish Thickness - Mating | 0.099 µm | 0.099 µm |
| Contact Finish Thickness - Mating | 3.9 µin | 3.9 µin |
| Contact Finish Thickness - Post | 3 µm | 3 µm |
| Contact Finish Thickness - Post | 118.1 µin | 118.1 µin |
| Contact Length - Post | 3.2 mm | 3.2 mm |
| Contact Length - Post [x] | 0.126 in | 0.126 in |
| Contact Material | Phosphor Bronze | Phosphor Bronze |
| Contact Shape | Circular | Circular |
| Contact Type | Male Pin | Male Pin |
| Fastening Type | Latch Holder | Latch Holder |
| Insulation Color | Black | Black |
| Insulation Height | 10 mm | 10 mm |
| Insulation Height | 0.394 " | 0.394 " |
| Insulation Material | Polycyclohexylenedimethylene Terephthalate (PCT), Glass Filled | Polycyclohexylenedimethylene Terephthalate (PCT), Glass Filled |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Type | Through Hole | Through Hole |
| Number of Positions | - | 2 - 12 |
| Number of Positions Loaded | All | All |
| Number of Rows | 1 | 1 |
| Operating Temperature [Max] | 105 ░C | 105 ░C |
| Operating Temperature [Min] | -55 °C | -55 °C |
| Pitch - Mating | 0.1 in | 0.1 in |
| Pitch - Mating | 2.54 mm | 2.54 mm |
| Shrouding | Shrouded - 2 Wall | Shrouded - 2 Wall |
| Style | Board to Board, Cable | Board to Board, Cable |
| Termination | Solder | Solder |
826467 Series
CONN HEADER VERT 4POS 2.54MM
| Part | Pitch - Mating | Pitch - Mating | Shrouding | Insulation Material | Fastening Type | Style | Number of Positions | Contact Length - Post | Contact Length - Post [x] | Material Flammability Rating | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Termination | Mounting Type | Connector Type | Contact Finish - Mating | Contact Type | Insulation Height | Insulation Height | Number of Positions Loaded | Contact Shape | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Number of Rows | Contact Finish - Post | Contact Material | Insulation Color | Operating Temperature [Max] | Operating Temperature [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 826467-4 | 0.1 in | 2.54 mm | Shrouded - 2 Wall | Polycyclohexylenedimethylene Terephthalate (PCT), Glass Filled | Latch Holder | Board to Board, Cable | 4 | 3.2 mm | 0.126 in | UL94 V-0 | 3 µm | 118.1 µin | Solder | Through Hole | Header | Gold | Male Pin | 10 mm | 0.394 " | All | Circular | 0.099 µm | 3.9 µin | 1 | Tin | Phosphor Bronze | Black | 105 ░C | -55 °C |
TE Connectivity AMP Connectors 826467-3 | 0.1 in | 2.54 mm | Shrouded - 2 Wall | Polycyclohexylenedimethylene Terephthalate (PCT), Glass Filled | Latch Holder | Board to Board, Cable | 3.2 mm | 0.126 in | UL94 V-0 | 3 µm | 118.1 µin | Solder | Through Hole | Header | Gold | Male Pin | 10 mm | 0.394 " | All | Circular | 0.099 µm | 3.9 µin | 1 | Tin | Phosphor Bronze | Black | 105 ░C | -55 °C | |
TE Connectivity AMP Connectors 826467-2 | 0.1 in | 2.54 mm | Shrouded - 2 Wall | Polycyclohexylenedimethylene Terephthalate (PCT), Glass Filled | Latch Holder | Board to Board, Cable | 2 | 3.2 mm | 0.126 in | UL94 V-0 | 3 µm | 118.1 µin | Solder | Through Hole | Header | Gold | Male Pin | 10 mm | 0.394 " | All | Circular | 0.099 µm | 3.9 µin | 1 | Tin | Phosphor Bronze | Black | 105 ░C | -55 °C |
TE Connectivity AMP Connectors 826467-6 | 0.1 in | 2.54 mm | Shrouded - 2 Wall | Polycyclohexylenedimethylene Terephthalate (PCT), Glass Filled | Latch Holder | Board to Board, Cable | 6 | 3.2 mm | 0.126 in | UL94 V-0 | 3 µm | 118.1 µin | Solder | Through Hole | Header | Gold | Male Pin | 10 mm | 0.394 " | All | Circular | 0.099 µm | 3.9 µin | 1 | Tin | Phosphor Bronze | Black | 105 ░C | -55 °C |
TE Connectivity AMP Connectors 826467-7 | 0.1 in | 2.54 mm | Shrouded - 2 Wall | Polycyclohexylenedimethylene Terephthalate (PCT), Glass Filled | Latch Holder | Board to Board, Cable | 7 | 3.2 mm | 0.126 in | UL94 V-0 | 3 µm | 118.1 µin | Solder | Through Hole | Header | Gold | Male Pin | 10 mm | 0.394 " | All | Circular | 0.099 µm | 3.9 µin | 1 | Tin | Phosphor Bronze | Black | 105 ░C | -55 °C |
TE Connectivity AMP Connectors 826467-5 | 0.1 in | 2.54 mm | Shrouded - 2 Wall | Polycyclohexylenedimethylene Terephthalate (PCT), Glass Filled | Latch Holder | Board to Board, Cable | 3.2 mm | 0.126 in | UL94 V-0 | 3 µm | 118.1 µin | Solder | Through Hole | Header | Gold | Male Pin | 10 mm | 0.394 " | All | Circular | 0.099 µm | 3.9 µin | 1 | Tin | Phosphor Bronze | Black | 105 ░C | -55 °C | |
TE Connectivity AMP Connectors 1-826467-2 | 0.1 in | 2.54 mm | Shrouded - 2 Wall | Polycyclohexylenedimethylene Terephthalate (PCT), Glass Filled | Latch Holder | Board to Board, Cable | 12 | 3.2 mm | 0.126 in | UL94 V-0 | 3 µm | 118.1 µin | Solder | Through Hole | Header | Gold | Male Pin | 10 mm | 0.394 " | All | Circular | 0.099 µm | 3.9 µin | 1 | Tin | Phosphor Bronze | Black | 105 ░C | -55 °C |
TE Connectivity AMP Connectors 826467-9 | 0.1 in | 2.54 mm | Shrouded - 2 Wall | Polycyclohexylenedimethylene Terephthalate (PCT), Glass Filled | Latch Holder | Board to Board, Cable | 9 | 3.2 mm | 0.126 in | UL94 V-0 | 3 µm | 118.1 µin | Solder | Through Hole | Header | Gold | Male Pin | 10 mm | 0.394 " | All | Circular | 0.099 µm | 3.9 µin | 1 | Tin | Phosphor Bronze | Black | 105 ░C | -55 °C |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.64 | |
| 10 | $ 1.36 | |||
| 300 | $ 1.03 | |||
| 600 | $ 0.97 | |||
| 1200 | $ 0.92 | |||
| 5100 | $ 0.82 | |||
| 10200 | $ 0.78 | |||
Description
General part information
826467 Series
Connector Header Through Hole 5 position 0.100" (2.54mm)
