826467-4

TE Connectivity AMP Connectors

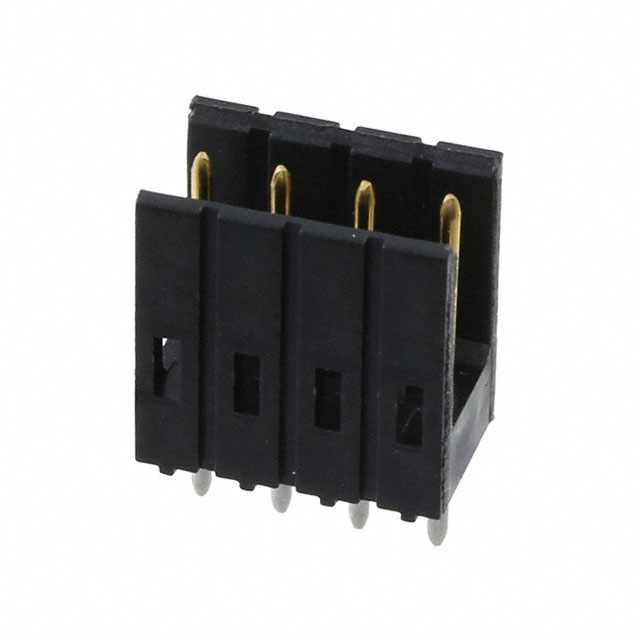

CONN HEADER VERT 4POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

826467-4

TE Connectivity AMP Connectors

CONN HEADER VERT 4POS 2.54MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1.52
		10	$ 1.26
		100	$ 1.04
		500	$ 0.92
		1000	$ 0.87

Description

General part information

826467 Series

Connector Header Through Hole 4 position 0.100" (2.54mm)

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	826467-4	826467 Series

Connector Type	Header	Header
Contact Finish - Mating	Gold	Gold
Contact Finish - Post	Tin	Tin
Contact Finish Thickness - Mating	0.099 µm	0.099 µm
Contact Finish Thickness - Mating	3.9 µin	3.9 µin
Contact Finish Thickness - Post	3 µm	3 µm
Contact Finish Thickness - Post	118.1 µin	118.1 µin
Contact Length - Post	3.2 mm	3.2 mm
Contact Length - Post [x]	0.126 in	0.126 in
Contact Material	Phosphor Bronze	Phosphor Bronze
Contact Shape	Circular	Circular
Contact Type	Male Pin	Male Pin
Fastening Type	Latch Holder	Latch Holder
Insulation Color	Black	Black
Insulation Height	10 mm	10 mm
Insulation Height	0.394 "	0.394 "
Insulation Material	Polycyclohexylenedimethylene Terephthalate (PCT), Glass Filled	Polycyclohexylenedimethylene Terephthalate (PCT), Glass Filled
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole	Through Hole
Number of Positions	4	2 - 12
Number of Positions Loaded	All	All
Number of Rows	1	1
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-55 °C	-55 °C
Pitch - Mating	0.1 in	0.1 in
Pitch - Mating	2.54 mm	2.54 mm
Shrouding	Shrouded - 2 Wall	Shrouded - 2 Wall
Style	Board to Board, Cable	Board to Board, Cable
Termination	Solder	Solder

826467 Series

CONN HEADER VERT 4POS 2.54MM

Part	Pitch - Mating	Pitch - Mating	Shrouding	Insulation Material	Fastening Type	Style	Number of Positions	Contact Length - Post	Contact Length - Post [x]	Material Flammability Rating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Termination	Mounting Type	Connector Type	Contact Finish - Mating	Contact Type	Insulation Height	Insulation Height	Number of Positions Loaded	Contact Shape	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Rows	Contact Finish - Post	Contact Material	Insulation Color	Operating Temperature [Max]	Operating Temperature [Min]
TE Connectivity AMP Connectors 826467-4	0.1 in	2.54 mm	Shrouded - 2 Wall	Polycyclohexylenedimethylene Terephthalate (PCT), Glass Filled	Latch Holder	Board to Board, Cable	4	3.2 mm	0.126 in	UL94 V-0	3 µm	118.1 µin	Solder	Through Hole	Header	Gold	Male Pin	10 mm	0.394 "	All	Circular	0.099 µm	3.9 µin	1	Tin	Phosphor Bronze	Black	105 ░C	-55 °C
