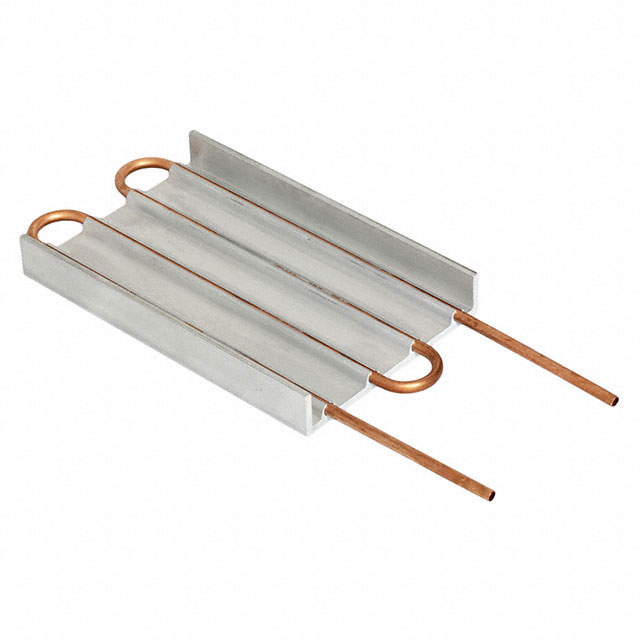

180-12-12SS

Active

Wakefield-Vette

COLD PLATE HEAT SINK 0.018C/W

Search across all available documentation for this part.

Active

Wakefield-Vette

COLD PLATE HEAT SINK 0.018C/W

Technical Specifications

Parameters and characteristics commom to parts in this series

COLD PLATE HEAT SINK 0.038C/W

Part	Product Type	Thermal Resistance @ GPM	Dimensions - Overall [z]	Dimensions - Overall [x]	Dimensions - Overall [y]	Dimensions - Overall [y]	Dimensions - Overall [x]	Dimensions - Overall [z]	Weight	Weight	Dimensions - Overall [y]	Dimensions - Overall [z]
Wakefield-Vette 180-12-6C	Cold Plate, Passive	0.038 °C/W	16.7 mm	13.41 in	196.9 mm	7.75 in	340.5 mm	0.66 in	1 kg	2.3 lbs
Wakefield-Vette 180-12-12SS	Cold Plate, Passive	0.018 °C/W		19.41 "		7.75 in	492.9 mm	0.66 in			196.9 mm	16.7 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Passive, Cold Plate 0.018°C/W @ 1.0 GPM
