Q-2P0040003002M

Active

Amphenol Custom Cable

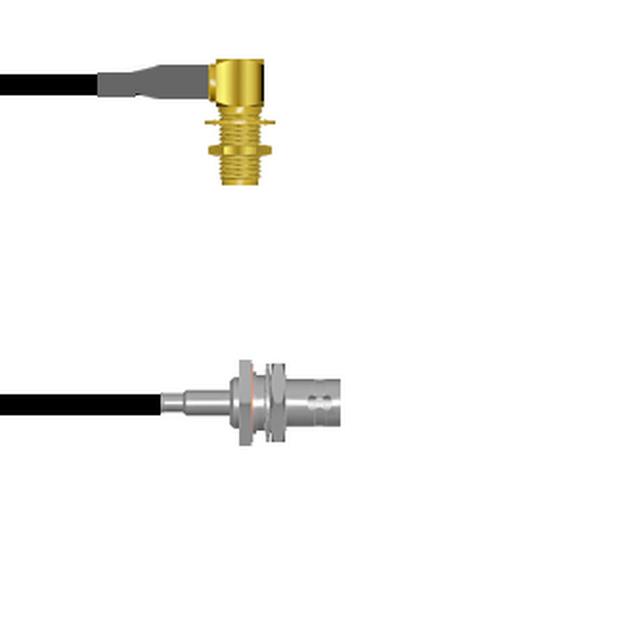

CBL ASSY BNC-SMA JACK-JACK 6.6'

Search across all available documentation for this part.

Active

Amphenol Custom Cable

CBL ASSY BNC-SMA JACK-JACK 6.6'

Technical Specifications

Parameters and characteristics for this part

Specification	Q-2P0040003002M

1st Connector	BNC Jack
1st Connector Mounting Feature	Bulkhead - Front Side Nut
1st Connector Mounting Type	Panel Mount
1st Contact Gender	Female
2nd Connector	SMA Jack, Right Angle
2nd Connector Mounting Feature	Bulkhead - Front Side Nut
2nd Connector Mounting Type	Panel Mount
2nd Contact Gender	Female
Cable Impedance	50 Ohms
Cable Type	RG-174
Color	Black
Connector Impedance	50 Ohms
Features	Shielded
Frequency - Max [Max]	1 GHz
Length	6.6 ft
Length	78.7 in
Length	2 m
Overall Impedance	50 Ohms
Style	BNC to SMA

Part	1st Contact Gender	Style	Cable Impedance	2nd Connector	Color	Overall Impedance	1st Connector	Cable Type	Frequency - Max [Max]	Length	Length	Length	1st Connector Mounting Feature	2nd Contact Gender	Connector Impedance	Features	1st Connector Mounting Type	2nd Connector Mounting Type	2nd Connector Mounting Feature
Amphenol Custom Cable Q-2P0040003003M	Female	BNC to SMA	50 Ohms	SMA Jack Right Angle	Black	50 Ohms	BNC Jack	RG-174	1 GHz	3 m	118.1 in	9.8 '	Bulkhead - Front Side Nut	Female	50 Ohms	Shielded	Panel Mount	Panel Mount	Bulkhead - Front Side Nut
Amphenol Custom Cable Q-2P0040003002M	Female	BNC to SMA	50 Ohms	SMA Jack Right Angle	Black	50 Ohms	BNC Jack	RG-174	1 GHz	2 m	78.7 in	6.6 ft	Bulkhead - Front Side Nut	Female	50 Ohms	Shielded	Panel Mount	Panel Mount	Bulkhead - Front Side Nut

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Assembly Coaxial BNC to SMA RG-174 78.7" (2.0m) 6.6'
