AAA3528SURKSYKC

Active

Kingbright

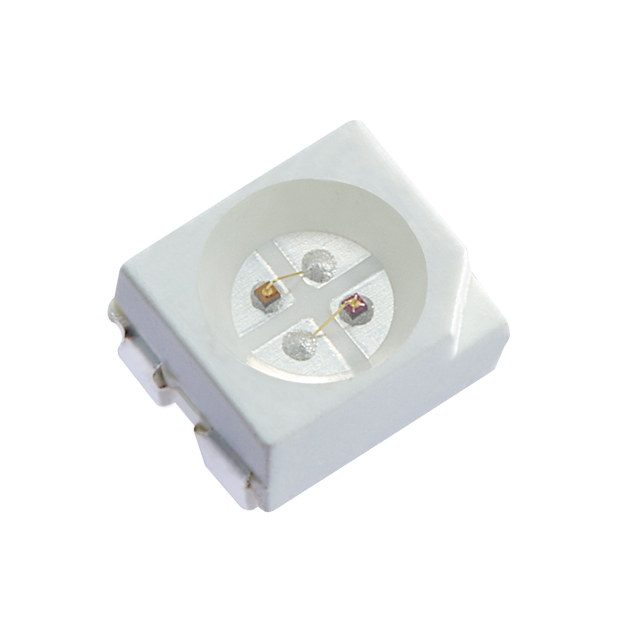

LED RED/YLW CLEAR 4SMD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

AAA3528SURKSYKC

Active

Kingbright

LED RED/YLW CLEAR 4SMD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 0.69
		10	$ 0.41
		100	$ 0.27
		500	$ 0.21
		1000	$ 0.20
	Digi-Reel®	1	$ 0.69
		10	$ 0.41
		100	$ 0.27
		500	$ 0.21
		1000	$ 0.20
	Tape & Reel (TR)	2000	$ 0.18
		4000	$ 0.17
		6000	$ 0.17
		10000	$ 0.16
		14000	$ 0.16
		20000	$ 0.15
		50000	$ 0.14

Description

General part information

AAA3528 Series

Red, Yellow 630nm Red, 590nm Yellow LED Indication - Discrete 1.95V Red, 2V Yellow 4-PLCC

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	AAA3528SURKSYKC	AAA3528 Series

Color	Yellow, Red	Red, Green, Blue, Yellow
Configuration	Independent	Common Anode, Independent, Single, Common Cathode
Current	-	20 mA
Current	-	20 mA
Current	-	20 mA
Current	-	20 mA
Current	-	20mA Yellow, 20mA Green
Current - Test	20mA Red, 20mA Yellow	20mA Red, 20mA Yellow
Current - Test	-	2 - 20 mA
Current - Test	-	2 - 20 mA
Current - Test	-	2 - 20 mA
Current - Test	-	20 mA
Height (Max) [Max] [z]	2.15 mm	2.1 - 2.15 mm
Lens Color	Colorless	Colorless
Lens Size [diameter]	2.4 mm	2.4 - 2.85 mm
Lens Style	-	Round with Domed Top
Lens Transparency	Clear	Clear
Lens Type	-	Clear
Millicandela Rating	320 mcd, 240 mcd	30 - 600 mcd
Millicandela Rating	-	20 - 1600 mcd
Millicandela Rating	-	20 - 320 mcd
Millicandela Rating	-	30 - 330 mcd
Millicandela Rating	-	130mcd Yellow, 300mcd Green
Mounting Type	Surface Mount	Surface Mount, Surface Mount, Right Angle, Surface Mount, Bottom Entry
Package / Case	4-PLCC	4-PLCC, 4-SMD, Gull Wing
Size / Dimension [x]	3.2 mm	3.2 mm
Size / Dimension [y]	2.8 mm	2.8 mm
Supplier Device Package	4-SMD	4-SMD, SMD
Viewing Angle	120 °	50 - 120 °
Voltage - Forward (Vf) (Typ)	1.95 V, 2 V	1.85 - 3.3 V
Voltage - Forward (Vf) (Typ)	-	2.1 - 3.3 V
Voltage - Forward (Vf) (Typ)	-	1.8 - 2.2 V
Voltage - Forward (Vf) (Typ)	-	2.7 - 3.3 V
Voltage Rating	-	2.1 V
Voltage Rating	-	1.95 V
Voltage Rating	-	3.3V Green, 3.3V Blue, 2V Red
Wavelength - Dominant	630 nm, 590 nm	465 - 640 nm
Wavelength - Dominant	-	635 nm
Wavelength - Dominant	-	570 nm
Wavelength - Peak	-	460 - 465 nm
Wavelength - Peak	-	515 - 574 nm
Wavelength - Peak	-	460 - 645 nm
Wavelength - Peak	-	574 - 645 nm
Wavelength - Peak [custom]	590 nm	590 nm
Wavelength - Peak [custom]	645 nm	630 - 660 nm

AAA3528 Series

STANDARD LEDS - SMD 3.5X2.8MM RGB SM RGB SMD

Part	Height (Max) [Max] [z]	Wavelength - Dominant	Configuration	Lens Size [diameter]	Package / Case	Viewing Angle	Lens Color	Mounting Type	Color	Millicandela Rating	Current - Test [custom]	Current - Test [custom]	Current - Test [custom]	Supplier Device Package	Wavelength - Peak [custom]	Wavelength - Peak [custom]	Wavelength - Peak [custom]	Lens Transparency	Voltage - Forward (Vf) (Typ)	Size / Dimension [y]	Size / Dimension [x]	Millicandela Rating [custom]	Millicandela Rating [custom]	Millicandela Rating [custom]	Wavelength - Dominant [custom]	Wavelength - Dominant [custom]	Voltage - Forward (Vf) (Typ) [custom]	Voltage - Forward (Vf) (Typ) [custom]	Current - Test	Wavelength - Peak	Voltage Rating	Voltage Rating	Wavelength - Peak [custom]	Lens Type	Lens Style	Current	Voltage - Forward (Vf) (Typ) [custom]	Wavelength - Peak [custom]	Current - Test	Voltage Rating	Current [custom]	Current [custom]	Current [custom]
Kingbright AAA3528SEEZGKQBKS	2.1 mm	465 nm, 525 nm, 621 nm	Common Anode	2.4 mm	4-PLCC	120 °	Colorless	Surface Mount	Blue, Green, Red	100 mcd, 220 mcd, 500 mcd	20 mA	20 mA	20 mA	4-SMD	630 nm	460 nm	515 nm	Clear	2 V, 3.3 V, 3.3 V	2.8 mm	3.2 mm
Kingbright AAA3528RBGS/08-09	2.1 mm	465 nm, 525 nm, 630 nm	Common Anode	2.4 mm	4-SMD, Gull Wing	120 °	Colorless	Surface Mount	Blue, Green, Red		20 mA	20 mA	20 mA	SMD	645 nm	460 nm	515 nm	Clear		2.8 mm	3.2 mm	500 mcd	110 mcd	100 mcd
Kingbright AAA3528SURKCGKC	2.1 mm		Independent	2.4 mm	4-PLCC	120 °	Colorless	Surface Mount	Green, Red					4-SMD	650 nm		574 nm	Clear		2.8 mm	3.2 mm	80 mcd	200 mcd		635 nm	570 nm	2.1 V	1.95 V	20 mA, 20 mA
Kingbright AAA3528SURKCGKCT	2.15 mm	570 nm, 630 nm	Independent	2.4 mm	4-PLCC	120 °	Colorless	Surface Mount	Green, Red					4-SMD				Clear		2.8 mm	3.2 mm	80 mcd	320 mcd				2.1 V	1.95 V	20 mA, 20 mA	574 nm, 645 nm
Kingbright AAA3528AVU/SURKCGKCT			Single	2.85 mm		50 °		Surface Mount, Right Angle	Green, Red													20 mcd	40 mcd								2.1 V	1.95 V	574 nm, 645 nm	Clear	Round with Domed Top	20 mA, 20 mA
Kingbright AAA3528SURKCGKC09	2.1 mm	570 nm, 630 nm	Independent	2.4 mm	4-SMD, Gull Wing	120 °	Colorless	Surface Mount, Bottom Entry	Green, Red	80 mcd, 100 mcd				SMD				Clear		2.8 mm	3.2 mm						2.1 V	1.95 V	20 mA, 20 mA	574 nm, 645 nm
Kingbright AAA3528CGKSRC	2.1 mm	570 nm, 640 nm	Independent	2.4 mm	4-PLCC	120 °	Colorless	Surface Mount	Green, Red					4-SMD	660 nm		574 nm	Clear	1.85 V, 2.1 V	2.8 mm	3.2 mm	80 mcd	150 mcd						20 mA, 20 mA
Kingbright AAA3528LSEEZGKQBKS	2.1 mm	465 nm, 525 nm, 621 nm	Common Anode	2.4 mm	4-PLCC	120 °	Colorless	Surface Mount	Blue, Green, Red		2 mA	2 mA	2 mA	4-SMD	630 nm	460 nm	515 nm	Clear		2.8 mm	3.2 mm	180 mcd	20 mcd	30 mcd			2.7 V	1.8 V									2.7 V
Kingbright AAA3528SURKSYKC	2.15 mm	590 nm, 630 nm	Independent	2.4 mm	4-PLCC	120 °	Colorless	Surface Mount	Red, Yellow	240 mcd, 320 mcd				4-SMD	645 nm			Clear	1.95 V, 2 V	2.8 mm	3.2 mm																	590 nm	20mA Red, 20mA Yellow
Kingbright AAA3528AVU/ARBGS-112			Single	2.85 mm		60 °		Surface Mount, Right Angle	Blue, Green, Red													200 mcd	80 mcd	80 mcd						465 nm, 515 nm, 630 nm				Clear	Round with Domed Top					2V Red, 3.3V Blue, 3.3V Green	20 mA	20 mA	20 mA
