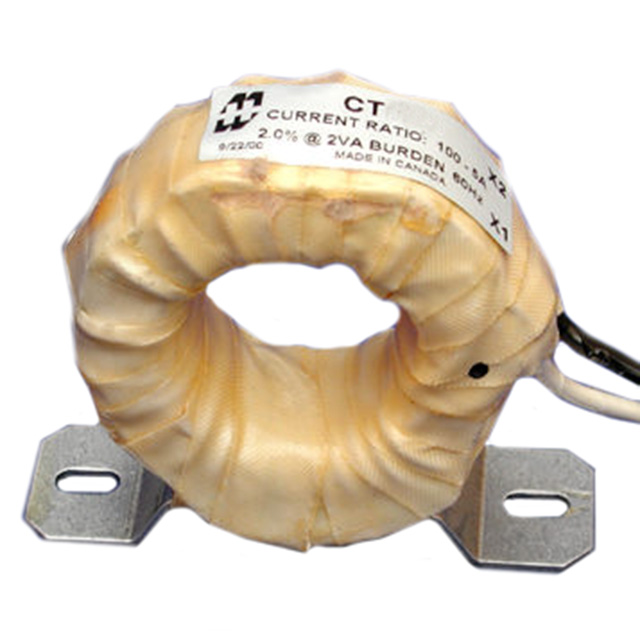

CT300A
ActiveHammond Manufacturing
CURR SENSE XFMR 5A CHAS MNT
Deep-Dive with AI
Search across all available documentation for this part.
CT300A
ActiveHammond Manufacturing
CURR SENSE XFMR 5A CHAS MNT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | CT300A |
|---|---|
| Current Rating (Amps) | 5 A |
| Current Ratio | 300:5 |
| Height - Seated (Max) [Max] [z] | 107.95 mm |
| Height - Seated (Max) [Max] [z] | 4.25 in |
| Mounting Type | Chassis Mount |
| Size / Dimension [x] | 4.75 " |
| Size / Dimension [x] | 120.65 mm |
| Size / Dimension [y] | 44.45 mm |
| Size / Dimension [y] | 1.75 in |
| Termination Style | Wire Leads |
| Type | Non-Invasive (Solid Core) |
| Weight | 1.5 lb |
| Weight | 680.4 g |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 64.89 | |
| 10 | $ 62.36 | |||
| 25 | $ 68.03 | |||
| 50 | $ 62.99 | |||
Description
General part information
CT300 Series
5 A Current Sense Transformer Chassis Mount
Documents
Technical documentation and resources
No documents available
