FTMH-105-02-L-DH

Active

Samtec Inc.

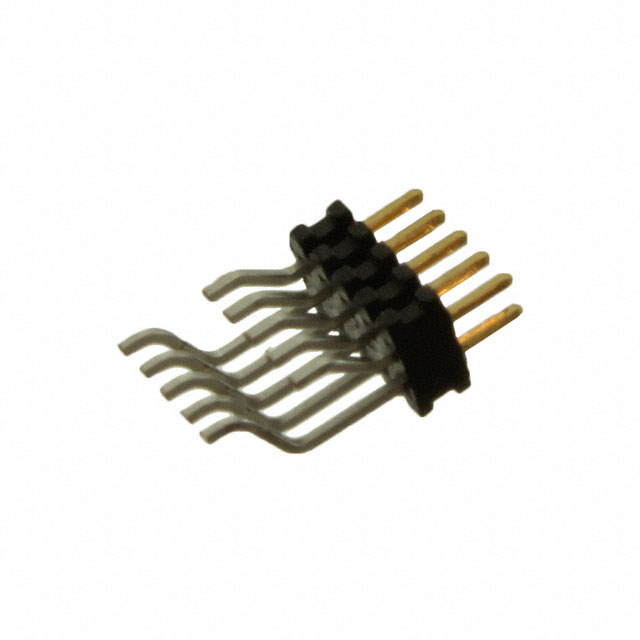

CONN MICRO TERMINAL STRIP HDR 10 POS 1MM SOLDER RA SIDE ENTRY SMD TUBE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet FTMH Series Other Related Documents 01 +1

FTMH-105-02-L-DH

Active

Samtec Inc.

CONN MICRO TERMINAL STRIP HDR 10 POS 1MM SOLDER RA SIDE ENTRY SMD TUBE

Deep-Dive with AI

DocumentsDatasheet FTMH Series Other Related Documents 01 +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	FTMH-105-02-L-DH

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	10 çin
Contact Finish Thickness - Mating	0.25 çm
Contact Length - Mating [x]	1.9 mm
Contact Length - Mating [x]	0.075 in
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	2.8 A per Contact
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.125 in
Insulation Height	3.18 mm
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount, Right Angle
Number of Positions	10
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.039 in
Pitch - Mating	1 mm
Row Spacing - Mating	0.039 "
Row Spacing - Mating	1 mm
Shrouding	Unshrouded
Termination	Solder

FTMH-105 Series

Part	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Termination	Contact Finish - Mating	Mounting Type	Contact Finish - Post	Pitch - Mating	Pitch - Mating	Current Rating (Amps)	Fastening Type	Row Spacing - Mating	Row Spacing - Mating	Number of Rows	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Color	Insulation Height	Insulation Height	Number of Positions	Number of Positions Loaded	Insulation Material	Material Flammability Rating	Contact Length - Mating [x]	Contact Length - Mating [x]	Contact Shape	Contact Type	Contact Material	Shrouding	Connector Type	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Length - Mating	Contact Length - Mating	Features
Samtec Inc. FTMH-105-02-F-DV-TR	3 µin	0.076 µm	Solder	Gold	Surface Mount	Tin	0.039 in	1 mm	2.8 A per Contact	Push-Pull	0.039 "	1 mm	2	-55 °C	125 °C	Black	1.5 mm	0.059 "	10	All	Liquid Crystal Polymer (LCP)	UL94 V-0	1.9 mm	0.075 in	Square	Male Pin	Phosphor Bronze	Unshrouded	Header
Samtec Inc. FTMH-105-03-H-DV	30 Áin	0.76 Ám	Solder	Gold	Surface Mount	Gold	0.039 in	1 mm	2.8 A per Contact	Push-Pull	0.039 "	1 mm	2	-55 °C	125 °C	Black	1.5 mm	0.059 "	10	All	Liquid Crystal Polymer (LCP)	UL94 V-0			Square	Male Pin	Phosphor Bronze	Unshrouded	Header	3 µin	0.076 µm	0.065 in	1.65 mm
Samtec Inc. FTMH-105-03-L-DH-K	10 çin	0.25 çm	Solder	Gold	Surface Mount Right Angle	Tin	0.039 in	1 mm	2.8 A per Contact	Push-Pull	0.039 "	1 mm	2	-55 °C	125 °C	Black	3.18 mm	0.125 in	10	All	Liquid Crystal Polymer (LCP)	UL94 V-0			Square	Male Pin	Phosphor Bronze	Unshrouded	Header			0.065 in	1.65 mm	Pick and Place
Samtec Inc. FTMH-105-02-L-DH-K-TR	10 çin	0.25 çm	Solder	Gold	Surface Mount Right Angle	Tin	0.039 in	1 mm	2.8 A per Contact	Push-Pull	0.039 "	1 mm	2	-55 °C	125 °C	Black	3.18 mm	0.125 in	10	All	Liquid Crystal Polymer (LCP)	UL94 V-0	1.9 mm	0.075 in	Square	Male Pin	Phosphor Bronze	Unshrouded	Header					Pick and Place
Samtec Inc. FTMH-105-03-FM-DV-ES	3 µin	0.076 µm	Solder	Gold	Surface Mount	Tin	0.039 in	1 mm	2.8 A per Contact	Push-Pull	0.039 "	1 mm	2	-55 °C	125 °C	Black	1.5 mm	0.059 "	10	All	Liquid Crystal Polymer (LCP)	UL94 V-0			Square	Male Pin	Phosphor Bronze	Unshrouded	Header			0.065 in	1.65 mm	End Shrouds
Samtec Inc. FTMH-105-02-G-DV-A	10 çin	0.25 çm	Solder	Gold	Surface Mount	Gold	0.039 in	1 mm	2.8 A per Contact	Push-Pull	0.039 "	1 mm	2	-55 °C	125 °C	Black	1.5 mm	0.059 "	10	All	Liquid Crystal Polymer (LCP)	UL94 V-0	1.9 mm	0.075 in	Square	Male Pin	Phosphor Bronze	Unshrouded	Header	3 µin	0.076 µm			Board Guide
Samtec Inc. FTMH-105-03-F-DV-A-TR	3 µin	0.076 µm	Solder	Gold	Surface Mount	Tin	0.039 in	1 mm	2.8 A per Contact	Push-Pull	0.039 "	1 mm	2	-55 °C	125 °C	Black	1.5 mm	0.059 "	10	All	Liquid Crystal Polymer (LCP)	UL94 V-0			Square	Male Pin	Phosphor Bronze	Unshrouded	Header			0.065 in	1.65 mm	Board Guide
Samtec Inc. FTMH-105-02-G-DV	10 çin	0.25 çm	Solder	Gold	Surface Mount	Gold	0.039 in	1 mm	2.8 A per Contact	Push-Pull	0.039 "	1 mm	2	-55 °C	125 °C	Black	1.5 mm	0.059 "	10	All	Liquid Crystal Polymer (LCP)	UL94 V-0	1.9 mm	0.075 in	Square	Male Pin	Phosphor Bronze	Unshrouded	Header	3 µin	0.076 µm
Samtec Inc. FTMH-105-02-L-DV-ES-A	10 çin	0.25 çm	Solder	Gold	Surface Mount	Tin	0.039 in	1 mm	2.8 A per Contact	Push-Pull	0.039 "	1 mm	2	-55 °C	125 °C	Black	1.5 mm	0.059 "	10	All	Liquid Crystal Polymer (LCP)	UL94 V-0	1.9 mm	0.075 in	Square	Male Pin	Phosphor Bronze	Unshrouded	Header					Board Guide End Shrouds
Samtec Inc. FTMH-105-02-L-DH	10 çin	0.25 çm	Solder	Gold	Surface Mount Right Angle	Tin	0.039 in	1 mm	2.8 A per Contact	Push-Pull	0.039 "	1 mm	2	-55 °C	125 °C	Black	3.18 mm	0.125 in	10	All	Liquid Crystal Polymer (LCP)	UL94 V-0	1.9 mm	0.075 in	Square	Male Pin	Phosphor Bronze	Unshrouded	Header
