776262-4
ActiveTE Connectivity AMP Connectors

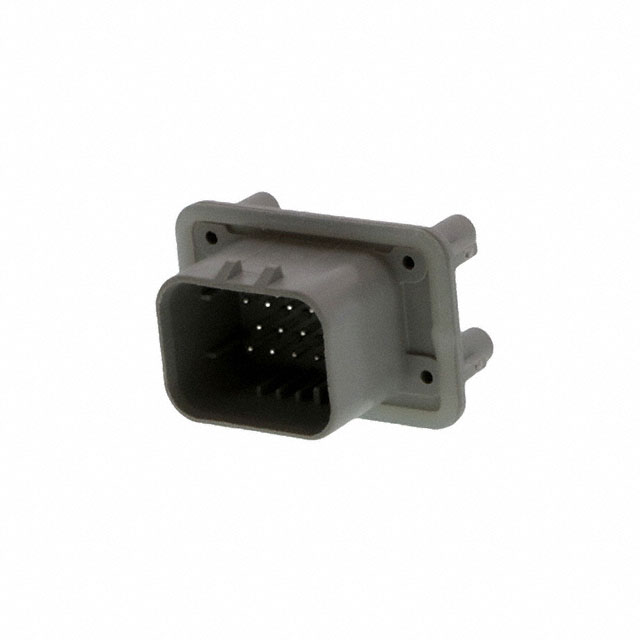

CONN HEADER VERT 14POS 4MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
776262-4
ActiveTE Connectivity AMP Connectors
CONN HEADER VERT 14POS 4MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 776262-4 | 776262 Series |
|---|---|---|
| Applications | Industrial, Automotive | Industrial, Automotive |
| Connector Type | Header | Header |
| Contact Finish - Mating | - | Gold-Palladium |
| Contact Material | Brass | Brass |
| Contact Shape | Circular | Circular |
| Contact Type | Male Pin | Male Pin |
| Current Rating (Amps) | Varies by Wire Gauge | Varies by Wire Gauge |
| Fastening Type | Locking Ramp | Locking Ramp |
| Features | Sealed, Mounting Flange | Sealed, Mounting Flange |
| Insulation Color | Gray | Black, Gray, Blue |
| Insulation Material | Polybutylene Terephthalate (PBT), Glass Filled | Polybutylene Terephthalate (PBT), Glass Filled |
| Mounting Type | Through Hole, Panel Mount | Through Hole, Panel Mount |
| Number of Positions | 14 | 14 |
| Number of Positions Loaded | All | All |
| Number of Rows | 3 | 3 |
| Operating Temperature [Max] | 105 ░C | 105 - 125 ░C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Pitch - Mating | 0.157 " | 0.157 " |
| Pitch - Mating | 4 mm | 4 mm |
| Row Spacing - Mating | 0.157 in | 0.157 in |
| Row Spacing - Mating | 4 mm | 4 mm |
| Shrouding | Shrouded - 4 Wall | Shrouded - 4 Wall |
| Style | Board to Cable/Wire | Board to Cable/Wire |
| Termination | Solder | Solder |
| Voltage Rating | 250 VAC | 250 VAC |
776262 Series
CONN HEADER VERT 14POS 4MM
| Part | Contact Type | Operating Temperature [Min] | Operating Temperature [Max] | Termination | Connector Type | Contact Material | Insulation Material | Number of Positions | Features | Style | Contact Shape | Voltage Rating | Shrouding | Current Rating (Amps) | Row Spacing - Mating | Row Spacing - Mating | Insulation Color | Number of Positions Loaded | Number of Rows | Pitch - Mating | Pitch - Mating | Applications | Fastening Type | Mounting Type | Contact Finish - Mating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 776262-1 | Male Pin | -40 °C | 105 ░C | Solder | Header | Brass | Polybutylene Terephthalate (PBT), Glass Filled | 14 | Mounting Flange, Sealed | Board to Cable/Wire | Circular | 250 VAC | Shrouded - 4 Wall | Varies by Wire Gauge | 0.157 in | 4 mm | Black | All | 3 | 0.157 " | 4 mm | Automotive, Industrial | Locking Ramp | Panel Mount, Through Hole | |
TE Connectivity AMP Connectors 776262-4 | Male Pin | -40 °C | 105 ░C | Solder | Header | Brass | Polybutylene Terephthalate (PBT), Glass Filled | 14 | Mounting Flange, Sealed | Board to Cable/Wire | Circular | 250 VAC | Shrouded - 4 Wall | Varies by Wire Gauge | 0.157 in | 4 mm | Gray | All | 3 | 0.157 " | 4 mm | Automotive, Industrial | Locking Ramp | Panel Mount, Through Hole | |
TE Connectivity AMP Connectors 1-776262-4 | Male Pin | -40 °C | 125 °C | Solder | Header | Brass | Polybutylene Terephthalate (PBT), Glass Filled | 14 | Mounting Flange, Sealed | Board to Cable/Wire | Circular | 250 VAC | Shrouded - 4 Wall | Varies by Wire Gauge | 0.157 in | 4 mm | Gray | All | 3 | 0.157 " | 4 mm | Automotive, Industrial | Locking Ramp | Panel Mount, Through Hole | Gold-Palladium |
TE Connectivity AMP Connectors 776262-5 | Male Pin | -40 °C | 105 ░C | Solder | Header | Brass | Polybutylene Terephthalate (PBT), Glass Filled | 14 | Mounting Flange, Sealed | Board to Cable/Wire | Circular | 250 VAC | Shrouded - 4 Wall | Varies by Wire Gauge | 0.157 in | 4 mm | Blue | All | 3 | 0.157 " | 4 mm | Automotive, Industrial | Locking Ramp | Panel Mount, Through Hole |
