776262-1

Active

TE Connectivity AMP Connectors

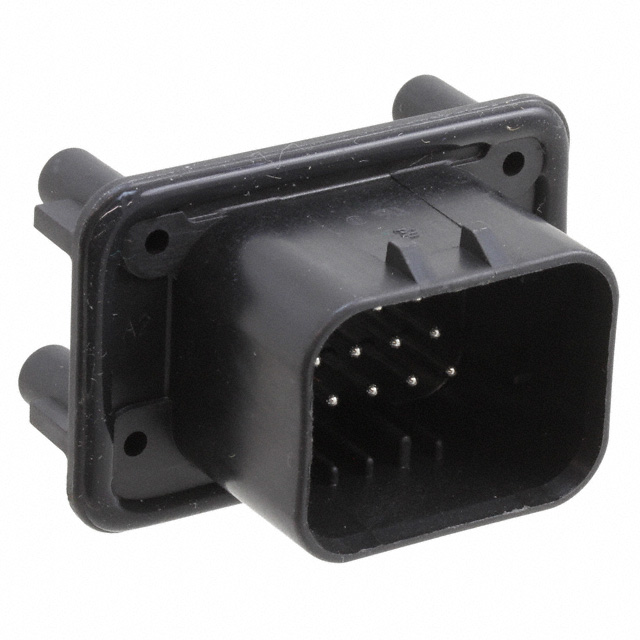

CONN HEADER VERT 14POS 4MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

776262-1

Active

TE Connectivity AMP Connectors

CONN HEADER VERT 14POS 4MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 9.70
		10	$ 8.46
		180	$ 7.52
		1080	$ 6.28

Description

General part information

776262 Series

Connector Header Panel Mount, Through Hole 14 position 0.157" (4.00mm)

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	776262-1	776262 Series

Applications	Industrial, Automotive	Industrial, Automotive
Connector Type	Header	Header
Contact Finish - Mating	-	Gold-Palladium
Contact Material	Brass	Brass
Contact Shape	Circular	Circular
Contact Type	Male Pin	Male Pin
Current Rating (Amps)	Varies by Wire Gauge	Varies by Wire Gauge
Fastening Type	Locking Ramp	Locking Ramp
Features	Sealed, Mounting Flange	Sealed, Mounting Flange
Insulation Color	Black	Black, Gray, Blue
Insulation Material	Polybutylene Terephthalate (PBT), Glass Filled	Polybutylene Terephthalate (PBT), Glass Filled
Mounting Type	Through Hole, Panel Mount	Through Hole, Panel Mount
Number of Positions	14	14
Number of Positions Loaded	All	All
Number of Rows	3	3
Operating Temperature [Max]	105 ░C	105 - 125 ░C
Operating Temperature [Min]	-40 °C	-40 °C
Pitch - Mating	0.157 "	0.157 "
Pitch - Mating	4 mm	4 mm
Row Spacing - Mating	0.157 in	0.157 in
Row Spacing - Mating	4 mm	4 mm
Shrouding	Shrouded - 4 Wall	Shrouded - 4 Wall
Style	Board to Cable/Wire	Board to Cable/Wire
Termination	Solder	Solder
Voltage Rating	250 VAC	250 VAC

776262 Series

CONN HEADER VERT 14POS 4MM

Part	Contact Type	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Connector Type	Contact Material	Insulation Material	Number of Positions	Features	Style	Contact Shape	Voltage Rating	Shrouding	Current Rating (Amps)	Row Spacing - Mating	Row Spacing - Mating	Insulation Color	Number of Positions Loaded	Number of Rows	Pitch - Mating	Pitch - Mating	Applications	Fastening Type	Mounting Type	Contact Finish - Mating
TE Connectivity AMP Connectors 776262-1	Male Pin	-40 °C	105 ░C	Solder	Header	Brass	Polybutylene Terephthalate (PBT), Glass Filled	14	Mounting Flange, Sealed	Board to Cable/Wire	Circular	250 VAC	Shrouded - 4 Wall	Varies by Wire Gauge	0.157 in	4 mm	Black	All	3	0.157 "	4 mm	Automotive, Industrial	Locking Ramp	Panel Mount, Through Hole
TE Connectivity AMP Connectors 776262-4	Male Pin	-40 °C	105 ░C	Solder	Header	Brass	Polybutylene Terephthalate (PBT), Glass Filled	14	Mounting Flange, Sealed	Board to Cable/Wire	Circular	250 VAC	Shrouded - 4 Wall	Varies by Wire Gauge	0.157 in	4 mm	Gray	All	3	0.157 "	4 mm	Automotive, Industrial	Locking Ramp	Panel Mount, Through Hole
TE Connectivity AMP Connectors 1-776262-4	Male Pin	-40 °C	125 °C	Solder	Header	Brass	Polybutylene Terephthalate (PBT), Glass Filled	14	Mounting Flange, Sealed	Board to Cable/Wire	Circular	250 VAC	Shrouded - 4 Wall	Varies by Wire Gauge	0.157 in	4 mm	Gray	All	3	0.157 "	4 mm	Automotive, Industrial	Locking Ramp	Panel Mount, Through Hole	Gold-Palladium
TE Connectivity AMP Connectors 776262-5	Male Pin	-40 °C	105 ░C	Solder	Header	Brass	Polybutylene Terephthalate (PBT), Glass Filled	14	Mounting Flange, Sealed	Board to Cable/Wire	Circular	250 VAC	Shrouded - 4 Wall	Varies by Wire Gauge	0.157 in	4 mm	Blue	All	3	0.157 "	4 mm	Automotive, Industrial	Locking Ramp	Panel Mount, Through Hole
