336206-14-0075

Active

Amphenol RF

CBL ASSY U.FL-RPTNC PL-JK 2.953"

Deep-Dive with AI

Search across all available documentation for this part.

336206-14-0075

Active

Amphenol RF

CBL ASSY U.FL-RPTNC PL-JK 2.953"

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	336206-14-0075

1st Connector	U.FL (UMCC), AMC Plug, Right Angle
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Female
2nd Connector	RP-TNC Jack
2nd Connector Mounting Feature	Bulkhead - Front Side Nut
2nd Connector Mounting Type	Panel Mount
2nd Contact Gender	Male
Cable Type [diameter]	1.37 mm
Color	Black
Frequency - Max [Max]	6000 MHz
Length	2.953 in
Length	75 mm
Overall Impedance	50 Ohms
Style	U.FL (UMCC), AMC to RP-TNC

336206 Series

Part	Color	2nd Connector	Overall Impedance	2nd Connector Mounting Type	Frequency - Max [Max]	Style	1st Connector	1st Connector Mounting Type	2nd Contact Gender	1st Contact Gender	2nd Connector Mounting Feature	Cable Type	Length	Length	Cable Type [diameter]	Length [x]	Length [x]
Amphenol RF 336206-12-0200	Black	RP-TNC Jack	50 Ohms	Panel Mount	6000 MHz	AMC to RP-TNC U.FL (UMCC)	U.FL (UMCC) AMC Plug Right Angle	Free Hanging (In-Line)	Male	Female	Bulkhead - Front Side Nut	1.13mm OD Coaxial Cable	7.874 in	200 mm
Amphenol RF 336206-14-0300	Black	RP-TNC Jack	50 Ohms	Panel Mount	6000 MHz	AMC to RP-TNC U.FL (UMCC)	U.FL (UMCC) AMC Plug Right Angle	Free Hanging (In-Line)	Male	Female	Bulkhead - Front Side Nut				1.37 mm	300 mm	11.811 in
Amphenol RF 336206-12-0150	Black	RP-TNC Jack	50 Ohms	Panel Mount	6000 MHz	AMC to RP-TNC U.FL (UMCC)	U.FL (UMCC) AMC Plug Right Angle	Free Hanging (In-Line)	Male	Female	Bulkhead - Front Side Nut	1.13mm OD Coaxial Cable				150 mm	5.906 "
Amphenol RF 336206-12-0250	Black	RP-TNC Jack	50 Ohms	Panel Mount	6000 MHz	AMC to RP-TNC U.FL (UMCC)	U.FL (UMCC) AMC Plug Right Angle	Free Hanging (In-Line)	Male	Female	Bulkhead - Front Side Nut	1.13mm OD Coaxial Cable				250 mm	9.843 "
Amphenol RF 336206-12-0100	Black	RP-TNC Jack	50 Ohms	Panel Mount	6000 MHz	AMC to RP-TNC U.FL (UMCC)	U.FL (UMCC) AMC Plug Right Angle	Free Hanging (In-Line)	Male	Female	Bulkhead - Front Side Nut	1.13mm OD Coaxial Cable				0.1 m	3.937 in
Amphenol RF 336206-12-0050	Black	RP-TNC Jack	50 Ohms	Panel Mount	6000 MHz	AMC to RP-TNC U.FL (UMCC)	U.FL (UMCC) AMC Plug Right Angle	Free Hanging (In-Line)	Male	Female	Bulkhead - Front Side Nut	1.13mm OD Coaxial Cable				50 mm	1.969 in
Amphenol RF 336206-14-0075	Black	RP-TNC Jack	50 Ohms	Panel Mount	6000 MHz	AMC to RP-TNC U.FL (UMCC)	U.FL (UMCC) AMC Plug Right Angle	Free Hanging (In-Line)	Male	Female	Bulkhead - Front Side Nut		2.953 in	75 mm	1.37 mm
Amphenol RF 336206-14-0150	Black	RP-TNC Jack	50 Ohms	Panel Mount	6000 MHz	AMC to RP-TNC U.FL (UMCC)	U.FL (UMCC) AMC Plug Right Angle	Free Hanging (In-Line)	Male	Female	Bulkhead - Front Side Nut				1.37 mm	150 mm	5.906 "
Amphenol RF 336206-14-0100	Black	RP-TNC Jack	50 Ohms	Panel Mount	6000 MHz	AMC to RP-TNC U.FL (UMCC)	U.FL (UMCC) AMC Plug Right Angle	Free Hanging (In-Line)	Male	Female	Bulkhead - Front Side Nut				1.37 mm	0.1 m	3.937 in
Amphenol RF 336206-14-0250	Black	RP-TNC Jack	50 Ohms	Panel Mount	6000 MHz	AMC to RP-TNC U.FL (UMCC)	U.FL (UMCC) AMC Plug Right Angle	Free Hanging (In-Line)	Male	Female	Bulkhead - Front Side Nut				1.37 mm	250 mm	9.843 "

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 21.34
		10	$ 18.68
		25	$ 17.88
		50	$ 17.30
		100	$ 16.72
		250	$ 15.80
		500	$ 15.34

Description

General part information

336206 Series

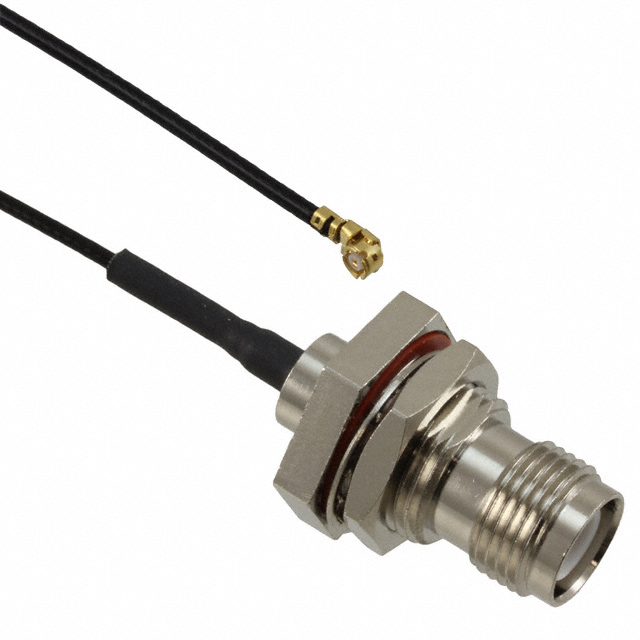

Cable Assembly Coaxial U.FL (UMCC), AMC to RP-TNC 1.37mm OD Coaxial Cable 2.953" (75.00mm)
