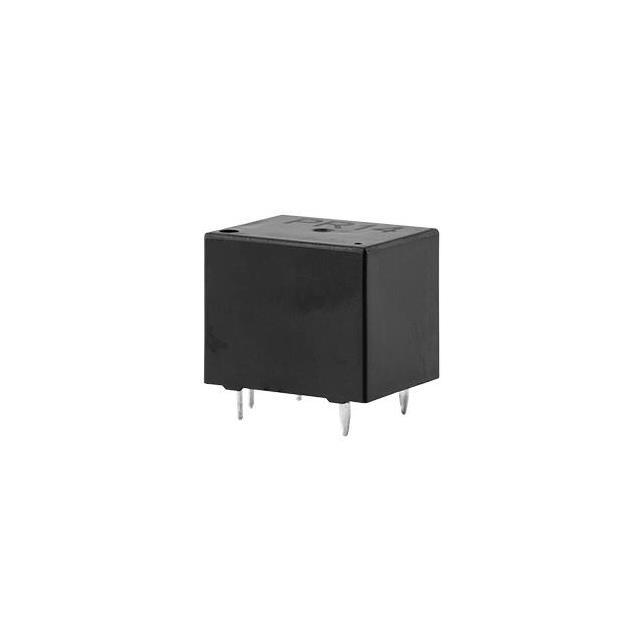

PR14-5V-360-1A
ActiveCUI Devices
RELAY GEN PURPOSE SPST 10A 5V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
PR14-5V-360-1A
ActiveCUI Devices
RELAY GEN PURPOSE SPST 10A 5V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | PR14-5V-360-1A |
|---|---|
| Coil Current | 90.9 mA |
| Coil Resistance | 55 Ohms |
| Coil Type | Non Latching |
| Coil Voltage | 5 VDC |
| Contact Form | SPST-NO (1 Form A) |
| Contact Material | Silver Alloy |
| Contact Rating (Current) | 10 A |
| Load - Max Switching | 2500 VA, 300 W |
| Mounting Type | Through Hole |
| Must Operate Voltage | 3.5 VDC |
| Must Release Voltage | 0.5 VDC |
| Operate Time | 10 ms |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Relay Type | General Purpose |
| Release Time | 5 ms |
| Switching Voltage [Max] | 30 VDC, 250 VAC |
| Termination Style | PC Pin |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 0.82 | |
| 10 | $ 0.77 | |||
| 25 | $ 0.68 | |||
| 50 | $ 0.65 | |||
| 100 | $ 0.61 | |||
| 250 | $ 0.60 | |||
Description
General part information
PR14-5V Series
General Purpose Relay SPST-NO (1 Form A) 5VDC Coil Through Hole
