CC79R-2024-01-F
ActiveSamtec Inc.

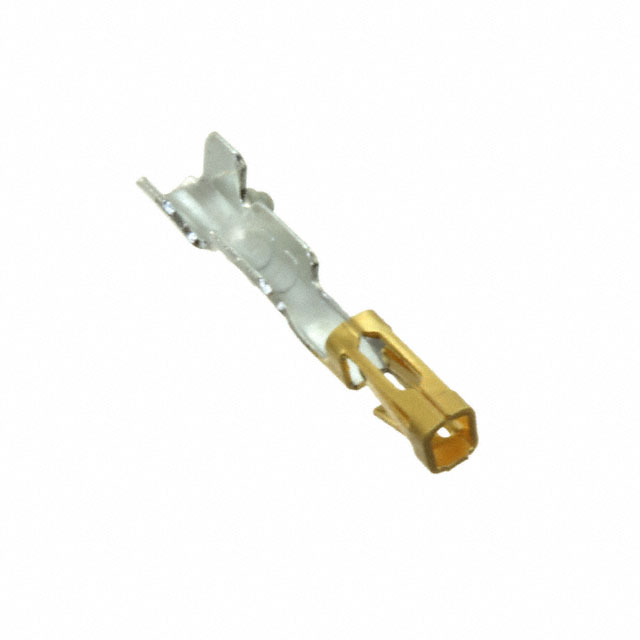

CONTACT, CC79 SERIES, SOCKET, CRIMP, 20 AWG, GOLD PLATED CONTACTS, IPD1 SERIES CONNECTORS
Deep-Dive with AI
Search across all available documentation for this part.
CC79R-2024-01-F
ActiveSamtec Inc.
CONTACT, CC79 SERIES, SOCKET, CRIMP, 20 AWG, GOLD PLATED CONTACTS, IPD1 SERIES CONNECTORS
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | CC79R-2024-01-F |
|---|---|
| Contact Finish | Gold |
| Contact Finish Thickness | 3 Áin |
| Contact Finish Thickness | 0.076 Ám |
| Contact Termination | Crimp |
| Pin or Socket | Socket |
| Type | Stamped |
| Wire Gauge [Max] | 24 AWG |
| Wire Gauge [Min] | 20 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.26 | |
| 10 | $ 0.20 | |||
| 25 | $ 0.18 | |||
| 50 | $ 0.16 | |||
| 100 | $ 0.15 | |||
| 250 | $ 0.14 | |||
| 500 | $ 0.13 | |||
| 1000 | $ 0.12 | |||
| 2500 | $ 0.11 | |||
| Tape & Reel (TR) | 12000 | $ 0.07 | ||
| LCSC | Piece | 5 | $ 0.13 | |
| 50 | $ 0.12 | |||
| 150 | $ 0.12 | |||
| 500 | $ 0.12 | |||
| Newark | Each (Supplied on Cut Tape) | 1 | $ 0.19 | |
| 10 | $ 0.13 | |||
| 100 | $ 0.11 | |||
| 500 | $ 0.10 | |||
| 1000 | $ 0.09 | |||
| 2500 | $ 0.08 | |||
| 10000 | $ 0.07 | |||
Description
General part information
CC79R-2024 Series
Socket Contact Gold 20-24 AWG Crimp Stamped
