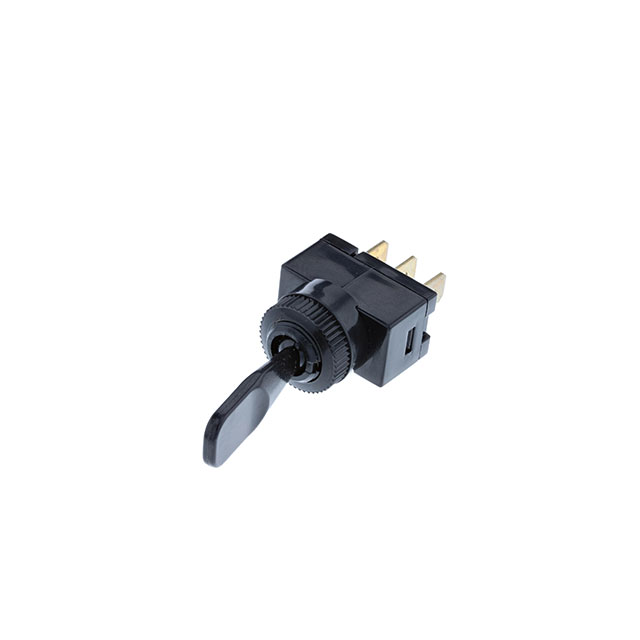

TE1-1D-DC-1-PB

Active

Switch Components

SWITCH TOGGLE SPDT 20A 12V

Search across all available documentation for this part.

Active

Switch Components

SWITCH TOGGLE SPDT 20A 12V

Technical Specifications

Parameters and characteristics for this part

Specification	TE1-1D-DC-1-PB

Actuator Length [x]	27 mm
Actuator Material	Polycarbonate (PC)
Actuator Type	Flatted
Bushing Thread	M12
Bushing Thread	1 x 1
Circuit	SPDT
Current Rating (Amps)	20 A
Electrical Life	6000 Cycles
Illumination	Non-Illuminated
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Panel Cutout Dimensions [diameter]	12.2 mm
Switch Function	On-On
Termination Style	Quick Connect - 0.250" (6.3mm)
Voltage Rating - DC	12 V

SWITCH TOGGLE SPDT 20A 12V

Part	Operating Temperature [Min]	Operating Temperature [Max]	Actuator Length [x]	Actuator Material	Electrical Life	Circuit	Termination Style	Actuator Type	Current Rating (Amps)	Panel Cutout Dimensions [diameter]	Switch Function	Bushing Thread	Bushing Thread	Illumination	Voltage Rating - DC
Switch Components TE1-1D-DC-1-PB	-25 °C	85 °C	27 mm	Polycarbonate (PC)	6000 Cycles	SPDT	Quick Connect - 0.250" (6.3mm)	Flatted	20 A	12.2 mm	On-On	M12	1 x 1	Non-Illuminated	12 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Toggle Switch SPDT Panel Mount
