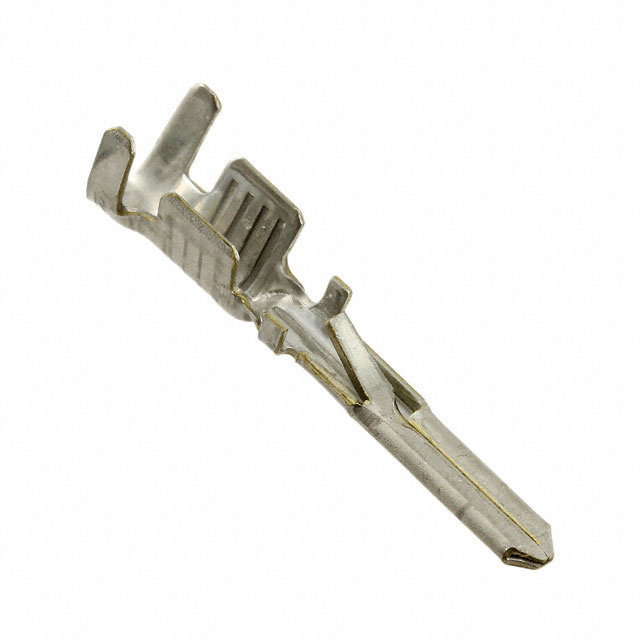

927893-1

Active

TE Connectivity AMP Connectors

CONN QC TAB 12-15AWG 0.110 CRIMP

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN QC TAB 12-15AWG 0.110 CRIMP

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	927893-1	927893 Series

Contact Finish	Tin	Tin
Contact Material	Copper	Copper
Gender	Male	Male
Insulation	Non-Insulated	Non-Insulated
Insulation Diameter [Max] [diameter]	3.51 mm	3.51 mm
Insulation Diameter [Max] [diameter]	0.138 in	0.138 in
Insulation Diameter [Min] [diameter]	2.31 mm	2.31 mm
Insulation Diameter [Min] [diameter]	0.091 in	0.091 in
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Tab Thickness	0.032 in	0.032 in
Tab Thickness	0.81 mm	0.81 mm
Tab Width	2.79 mm	2.79 mm
Tab Width	0.11 "	0.11 "
Terminal Type	Standard	Standard
Termination	Crimp	Crimp
Wire Gauge [Max]	15 AWG	15 AWG
Wire Gauge [Min]	12 AWG	12 AWG

CONN QC TAB 12-15AWG 0.110 CRIMP

Part	Gender	Contact Material	Tab Width	Tab Width	Tab Thickness	Tab Thickness	Termination	Contact Finish	Insulation	Wire Gauge [Min]	Wire Gauge [Max]	Insulation Diameter [Max] [diameter]	Insulation Diameter [Max] [diameter]	Insulation Diameter [Min] [diameter]	Insulation Diameter [Min] [diameter]	Terminal Type	Mounting Type
TE Connectivity AMP Connectors 927893-1	Male	Copper	2.79 mm	0.11 "	0.032 in	0.81 mm	Crimp	Tin	Non-Insulated	12 AWG	15 AWG	3.51 mm	0.138 in	2.31 mm	0.091 in	Standard	Free Hanging (In-Line)
TE Connectivity AMP Connectors 927893-5	Male	Copper	2.79 mm	0.11 "	0.032 in	0.81 mm	Crimp	Tin	Non-Insulated	12 AWG	15 AWG	3.51 mm	0.138 in	2.31 mm	0.091 in	Standard	Free Hanging (In-Line)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

0.110" (2.79mm) Quick Connect Male 12-15 AWG Crimp Connector Non-Insulated
