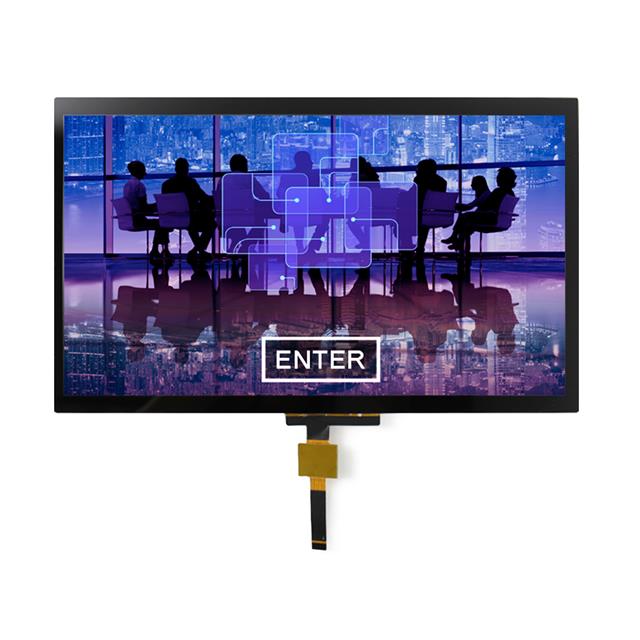

NHD-10.1-1024600AF-ASXV#-CTP

Obsolete

Newhaven Display Intl

10.1 PREMIUM RGB TFT W/ CAP TOUC

Search across all available documentation for this part.

Obsolete

Newhaven Display Intl

10.1 PREMIUM RGB TFT W/ CAP TOUC

Technical Specifications

Parameters and characteristics for this part

Part	Viewing Area [x]	Viewing Area [y]	Display Type	Dot Pixels [x]	Dot Pixels [y]	Controller Type	Touchscreen	Display Mode	Graphics Color	Diagonal Screen Size [custom]	Diagonal Screen Size [custom]	Backlight	Interface	Interface	Viewing Area [z]
Newhaven Display Intl NHD-10.1-1024600AF-LSXV#-CTP	224.44 mm	127 mm	TFT - Color	1024	600 pixels	FT5526EEZ HX8282-A	Capacitive	Transmissive	Blue Green Red	256.54 mm	10.1 in	LED - White	LVDS
Newhaven Display Intl NHD-10.1-1024600AF-ASXV#-CTP	224.44 mm	127 mm	TFT - Color	1024	600 pixels	HX8282	Capacitive	Transmissive	Blue Green Red	256.54 mm	10.1 in	LED - White	Parallel	24 Bit
Newhaven Display Intl NHD-10.1-1024600AF-LSXV#	226.42 mm		TFT - Color	1024	600 pixels	HX8282-A		Transmissive	Blue Green Red	256.54 mm	10.1 in	LED - White	LVDS		128.28 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Capacitive Graphic LCD Display Module Transmissive Red, Green, Blue (RGB) TFT - Color Parallel, 24-Bit (RGB) 10.1" (256.54mm) 1024 x 600
