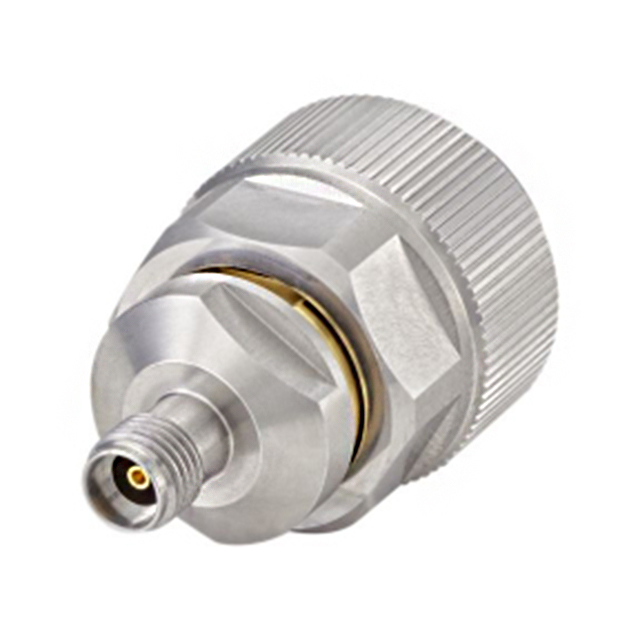

03K107-P00S3

Active

Rosenberger

PRECISION 3.5/7 ADAPTER

Search across all available documentation for this part.

Active

Rosenberger

PRECISION 3.5/7 ADAPTER

Technical Specifications

Parameters and characteristics for this part

Specification	03K107-P00S3

Adapter Series	RPC-7, RPC-3.50
Body Finish	Gold
Body Material	Beryllium Copper, Stainless Steel
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Center Gender	Female to Non-Gendered
Conversion Type	Between Series
Convert From (Adapter End)	3.5mm Jack, Female Socket
Convert To (Adapter End)	Non-Gendered
Convert To (Adapter End)	7 mm
Dielectric Material	Polyphenylene Ether (PPE)
Frequency - Max [Max]	18 GHz
Impedance	50 Ohms
Insertion Loss	0.17 dB
Mating Cycles	5000
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Style	Straight

PRECISION 3.5/7 ADAPTER

Part	Operating Temperature [Max]	Operating Temperature [Min]	Dielectric Material	Frequency - Max [Max]	Convert From (Adapter End)	Center Gender	Impedance	Mating Cycles	Center Contact Material	Convert To (Adapter End)	Convert To (Adapter End)	Mounting Type	Style	Center Contact Plating	Conversion Type	Body Material	Adapter Series	Insertion Loss	Body Finish
Rosenberger 03K107-P00S3	85 °C	-40 °C	Polyphenylene Ether (PPE)	18 GHz	3.5mm Jack, Female Socket	Female to Non-Gendered	50 Ohms	5000	Beryllium Copper	Non-Gendered	7 mm	Free Hanging (In-Line)	Straight	Gold	Between Series	Beryllium Copper, Stainless Steel	RPC-3.50, RPC-7	0.17 dB	Gold

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	5	$ 426.49

General part information

Adapter Coaxial Connector 3.5mm Jack, Female Socket To 7mm, Non-Gendered 50 Ohms
