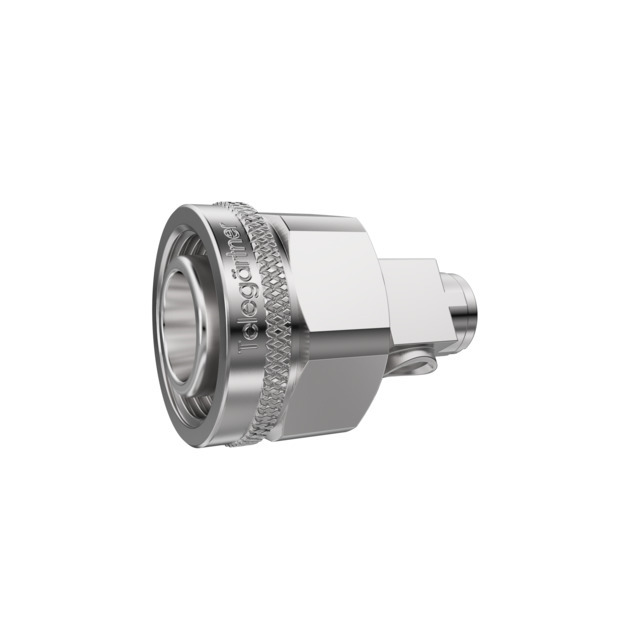

2.2-5 PLG 90 SD/SD S G10

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

100025462

Active

Telegartner Inc

2.2-5 PLG 90 SD/SD S G10

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	100025462	J01460A0 Series

Body Finish	Silver	Silver, White Bronze
Body Material	Brass	Brass
Cable Group	RG-402	RG-402, RG-401, Flex, LMR-240
Cable Group	-	0.25 in
Center Contact Material	Brass	Brass
Center Contact Plating	Silver	Silver
Connector Style	2.2/5	2.2/5
Connector Type	Male Pin, Plug	Male Pin, Plug
Contact Termination	Solder	Solder, Crimp
Dielectric Material	Polytetrafluoroethylene (PTFE)	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	6000 MHz	3 - 6000 MHz
Housing Color	Silver	Silver
Impedance	50 Ohms	50 Ohms
Ingress Protection	IP68 - Dust Tight, Waterproof	IP68 - Dust Tight, Waterproof, IP67 - Dust Tight, Waterproof
Mounting Type	Free Hanging (In-Line), Right Angle	Free Hanging (In-Line), Right Angle
Number of Ports	1	1
Operating Temperature [Max]	90 °C	70 - 90 °C
Operating Temperature [Min]	-55 °C	-55 - -30 °C
Shield Termination	Solder	Solder, Clamp, Crimp
Voltage Rating	-	1000 VDC

J01460A0 Series

2.2-5 PLG STR SD/SD S G10

Part	Frequency - Max [Max]	Cable Group	Contact Termination	Operating Temperature [Max]	Operating Temperature [Min]	Center Contact Plating	Voltage Rating	Housing Color	Connector Type	Ingress Protection	Mounting Type	Dielectric Material	Connector Style	Impedance	Shield Termination	Number of Ports	Body Finish	Center Contact Material	Body Material	Cable Group
Telegartner Inc 100025457	6000 MHz	RG-402	Solder	90 °C	-55 °C	Silver	1000 VDC	Silver	Male Pin, Plug	IP68 - Dust Tight, Waterproof	Free Hanging (In-Line)	Polytetrafluoroethylene (PTFE)	2.2/5	50 Ohms	Solder	1	Silver
Telegartner Inc 100025463	6000 MHz	RG-401	Solder	90 °C	-55 °C	Silver		Silver	Male Pin, Plug	IP68 - Dust Tight, Waterproof	Free Hanging (In-Line), Right Angle	Polytetrafluoroethylene (PTFE)	2.2/5	50 Ohms	Solder	1	Silver	Brass	Brass
Telegartner Inc 100025465	5 GHz	Flex	Crimp, Solder	90 °C	-55 °C	Silver		Silver	Male Pin, Plug	IP67 - Dust Tight, Waterproof	Free Hanging (In-Line)	Polytetrafluoroethylene (PTFE)	2.2/5	50 Ohms	Clamp	1	White Bronze			0.25 in
Telegartner Inc 100027900	6000 MHz		Solder	90 °C	-55 °C	Silver	1000 VDC	Silver	Male Pin, Plug	IP68 - Dust Tight, Waterproof	Free Hanging (In-Line)	Polytetrafluoroethylene (PTFE)	2.2/5	50 Ohms	Solder	1	Silver
Telegartner Inc 100025462	6000 MHz	RG-402	Solder	90 °C	-55 °C	Silver		Silver	Male Pin, Plug	IP68 - Dust Tight, Waterproof	Free Hanging (In-Line), Right Angle	Polytetrafluoroethylene (PTFE)	2.2/5	50 Ohms	Solder	1	Silver	Brass	Brass
Telegartner Inc 100025466	3 GHz		Crimp, Solder	85 °C	-40 °C	Silver		Silver	Male Pin, Plug	IP68 - Dust Tight, Waterproof	Free Hanging (In-Line)	Polytetrafluoroethylene (PTFE)	2.2/5	50 Ohms	Clamp	1	White Bronze
Telegartner Inc 100025464	6000 MHz	LMR-240	Crimp	70 °C	-30 ░C	Silver		Silver	Male Pin, Plug	IP68 - Dust Tight, Waterproof	Free Hanging (In-Line)	Polytetrafluoroethylene (PTFE)	2.2/5	50 Ohms	Crimp	1	Silver

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 12.47
		10	$ 11.46
		25	$ 10.60
		50	$ 9.42

Description

General part information

J01460A0 Series

2.2/5 Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line), Right Angle Solder
