845-024-500-112
ActiveEDAC Inc.

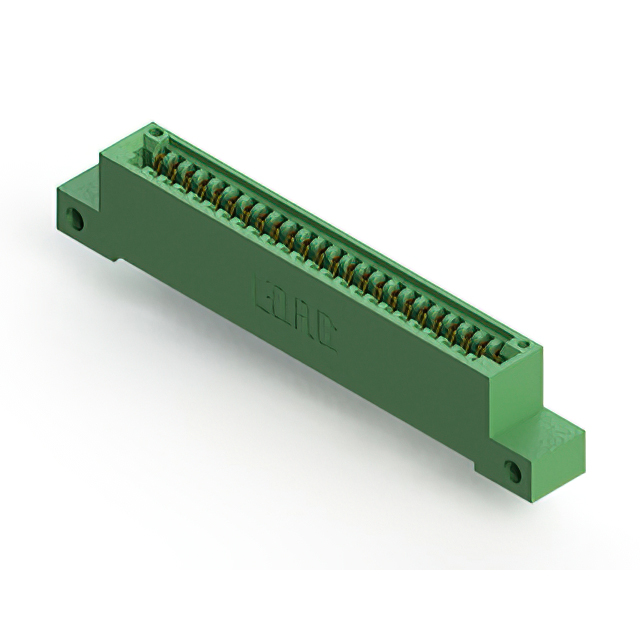

CONN EDGE SINGLE FML 24POS 0.100
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
845-024-500-112
ActiveEDAC Inc.
CONN EDGE SINGLE FML 24POS 0.100
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 845-024-500-112 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Single Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Unthreaded, Flush Mount, Side Opening |
| Flange Feature [diameter] | 3.25 mm |
| Flange Feature [diameter] | 0.128 " |
| Gender | Female |
| Material - Insulation | Diallyl Phthalate (DAP) |
| Mounting Type | Through Hole |
| Number of Positions | 24 |
| Number of Positions/Bay/Row [custom] | 24 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Read Out | Single |
| Termination | Solder Eyelet(s) |
| Termination Rows | 1 |
845-024 Series
...
| Part | Contact Finish Thickness | Contact Finish Thickness | Termination Rows | Color | Card Type | Contact Material | Material - Insulation | Pitch [x] | Pitch [x] | Operating Temperature [Max] | Operating Temperature [Min] | Number of Positions | Flange Feature | Contact Finish | Number of Positions/Bay/Row [custom] | Termination | Mounting Type | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Contact Type | Number of Rows | Read Out | Gender | Flange Feature [diameter] | Flange Feature [diameter] | Flange Feature | Flange Feature | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | 10 Áin | 0.25 Ám | 1 | Green | Non Specified - Single Edge | Copper Alloy | Diallyl Phthalate (DAP) | 2.54 mm | 0.1 in | 125 °C | -40 °C | 24 | 4-40 Flush Mount Threaded Insert Top Opening | Gold | 24 | Wire Wrap | Through Hole | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Cantilever | 1 | Single | Female | |||||
EDAC Inc. | 10 Áin | 0.25 Ám | 1 | Green | Non Specified - Single Edge | Copper Alloy | Diallyl Phthalate (DAP) | 2.54 mm | 0.1 in | 125 °C | -40 °C | 24 | Flush Mount Side Opening Unthreaded | Gold | 24 | Solder Eyelet(s) | Through Hole | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Cantilever | 1 | Single | Female | 3.25 mm | 0.128 " | |||
EDAC Inc. | 10 Áin | 0.25 Ám | 2 | Green | Non Specified - Dual Edge | Copper Alloy | Diallyl Phthalate (DAP) | 2.54 mm | 0.1 in | 125 °C | -40 °C | 24 | Gold | 12 | Solder | Through Hole Right Angle | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Cantilever | 2 | Dual | Female | 3.25 mm | 0.128 in | ||||
EDAC Inc. | 10 Áin | 0.25 Ám | 1 | Green | Non Specified - Single Edge | Copper Alloy | Diallyl Phthalate (DAP) | 2.54 mm | 0.1 in | 125 °C | -40 °C | 24 | M3 Threaded Insert Top Mount Opening | Gold | 24 | Wire Wrap | Through Hole | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Cantilever | 1 | Single | Female | |||||
EDAC Inc. | 10 Áin | 0.25 Ám | 2 | Green | Non Specified - Dual Edge | Copper Alloy | Diallyl Phthalate (DAP) | 2.54 mm | 0.1 in | 125 °C | -40 °C | 24 | M3 Threaded Insert Top Mount Opening | Gold | 12 | Solder | Through Hole | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Cantilever | 2 | Dual | Female | |||||
EDAC Inc. | 10 Áin | 0.25 Ám | 2 | Green | Non Specified - Dual Edge | Copper Alloy | Diallyl Phthalate (DAP) | 2.54 mm | 0.1 in | 125 °C | -40 °C | 24 | M3 Threaded Insert Top Mount Opening | Gold | 12 | Solder | Through Hole | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Cantilever | 2 | Dual | Female | |||||
EDAC Inc. | 10 Áin | 0.25 Ám | 2 | Green | Non Specified - Dual Edge | Copper Alloy | Diallyl Phthalate (DAP) | 2.54 mm | 0.1 in | 125 °C | -40 °C | 24 | Top Mount Opening Unthreaded | Gold | 12 | Solder | Through Hole | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Cantilever | 2 | Dual | Female | 3.96 mm | 0.156 in | |||
EDAC Inc. | 10 Áin | 0.25 Ám | 2 | Green | Non Specified - Dual Edge | Copper Alloy | Diallyl Phthalate (DAP) | 2.54 mm | 0.1 in | 125 °C | -40 °C | 24 | Gold | 12 | Solder | Board Edge Straddle Mount | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Cantilever | 2 | Dual | Female | 3.25 mm | 0.128 in | Card Extender | |||
EDAC Inc. | 10 Áin | 0.25 Ám | 2 | Green | Non Specified - Dual Edge | Copper Alloy | Diallyl Phthalate (DAP) | 2.54 mm | 0.1 in | 125 °C | -40 °C | 24 | Floating Bobbin Top Mount Opening | Gold | 12 | Solder | Through Hole | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Cantilever | 2 | Dual | Female | 2.95 mm | 0.116 in | |||
EDAC Inc. | 10 Áin | 0.25 Ám | 2 | Green | Non Specified - Dual Edge | Copper Alloy | Diallyl Phthalate (DAP) | 2.54 mm | 0.1 in | 125 °C | -40 °C | 24 | Floating Bobbin Top Mount Opening | Gold | 12 | Wire Wrap | Through Hole | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Cantilever | 2 | Dual | Female | 2.95 mm | 0.116 in |
