Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | MSP430F2330IYFFT | MSP430F2330 Series |
|---|---|---|
| Connectivity | IrDA, LINbus, SCI, UART/USART, I2C, SPI | IrDA, LINbus, SCI, UART/USART, I2C, SPI |
| Core Processor | MSP430 CPU16 | MSP430 CPU16 |
| Core Size | 16-Bit | 16-Bit |
| Data Converters | Slope A/D | Slope A/D |
| Mounting Type | Surface Mount | Surface Mount |
| Number of I/O | 32 I/O | 32 I/O |
| Operating Temperature [Max] | 85 °C | 85 - 105 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Oscillator Type | Internal | Internal |

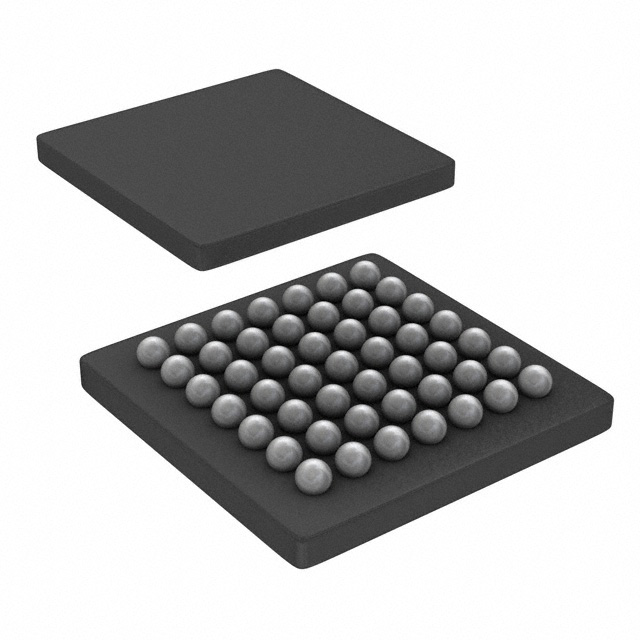

| Package / Case | DSBGA, 49-UFBGA | 40-VFQFN Exposed Pad, DSBGA, 49-UFBGA |
| Program Memory Size | 8 KB | 8 KB |
| Program Memory Type | FLASH | FLASH |
| RAM Size | 1K x 8 | 1K x 8 |
| Speed | 16 MHz | 16 MHz |
| Supplier Device Package | 49-DSBGA (2.8x2.8) | 40-VQFN (6x6), 49-DSBGA (2.8x2.8) |
| Voltage - Supply (Vcc/Vdd) [Max] | 3.6 V | 3.6 V |
| Voltage - Supply (Vcc/Vdd) [Min] | 1.8 V | 1.8 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
MSP430F2330 Series
16 MHZ MCU WITH 8KB FLASH, 1KB SRAM, COMPARATOR, I2C/SPI/UART, HW MULTIPLIER 40-VQFN -40 TO 105
| Part | Program Memory Type | Package / Case | Oscillator Type | RAM Size | Data Converters | Core Processor | Mounting Type | Speed | Number of I/O | Connectivity | Operating Temperature [Max] | Operating Temperature [Min] | Supplier Device Package | Program Memory Size | Voltage - Supply (Vcc/Vdd) [Max] | Voltage - Supply (Vcc/Vdd) [Min] | Core Size |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Texas Instruments MSP430F2330TRHATThe Texas Instruments MSP430 family of ultra-low-power microcontrollers consists of several devices featuring different sets of peripherals targeted for various applications. The architecture, combined with five low-power modes, is optimized to achieve extended battery life in portable measurement applications. The device features a powerful 16-bit RISC CPU, 16-bit registers, and constant generators that contribute to maximum code efficiency. The digitally controlled oscillator (DCO) allows wake-up from low-power modes to active mode in less than 1 µs.
The MSP430F23x0 series is an ultra-low-power microcontroller with two built-in 16-bit timers, one universal serial communication interface (USCI), a versatile analog comparator, and 32 I/O pins.
The Texas Instruments MSP430 family of ultra-low-power microcontrollers consists of several devices featuring different sets of peripherals targeted for various applications. The architecture, combined with five low-power modes, is optimized to achieve extended battery life in portable measurement applications. The device features a powerful 16-bit RISC CPU, 16-bit registers, and constant generators that contribute to maximum code efficiency. The digitally controlled oscillator (DCO) allows wake-up from low-power modes to active mode in less than 1 µs.
The MSP430F23x0 series is an ultra-low-power microcontroller with two built-in 16-bit timers, one universal serial communication interface (USCI), a versatile analog comparator, and 32 I/O pins. | FLASH | 40-VFQFN Exposed Pad | Internal | 1K x 8 | Slope A/D | MSP430 CPU16 | Surface Mount | 16 MHz | 32 I/O | I2C, IrDA, LINbus, SCI, SPI, UART/USART | 105 °C | -40 °C | 40-VQFN (6x6) | 8 KB | 3.6 V | 1.8 V | 16-Bit |
Texas Instruments MSP430F2330IYFFRMSP430 CPU16 MSP430F2xx Microcontroller IC 16-Bit 16MHz 8KB (8K x 8 + 256B) FLASH 49-DSBGA (2.8x2.8) | FLASH | 49-UFBGA, DSBGA | Internal | 1K x 8 | Slope A/D | MSP430 CPU16 | Surface Mount | 16 MHz | 32 I/O | I2C, IrDA, LINbus, SCI, SPI, UART/USART | 85 °C | -40 °C | 49-DSBGA (2.8x2.8) | 8 KB | 3.6 V | 1.8 V | 16-Bit |
Texas Instruments MSP430F2330IYFFTMSP430 CPU16 MSP430F2xx Microcontroller IC 16-Bit 16MHz 8KB (8K x 8 + 256B) FLASH 49-DSBGA (2.8x2.8) | FLASH | 49-UFBGA, DSBGA | Internal | 1K x 8 | Slope A/D | MSP430 CPU16 | Surface Mount | 16 MHz | 32 I/O | I2C, IrDA, LINbus, SCI, SPI, UART/USART | 85 °C | -40 °C | 49-DSBGA (2.8x2.8) | 8 KB | 3.6 V | 1.8 V | 16-Bit |
Texas Instruments MSP430F2330TRHARThe Texas Instruments MSP430 family of ultra-low-power microcontrollers consists of several devices featuring different sets of peripherals targeted for various applications. The architecture, combined with five low-power modes, is optimized to achieve extended battery life in portable measurement applications. The device features a powerful 16-bit RISC CPU, 16-bit registers, and constant generators that contribute to maximum code efficiency. The digitally controlled oscillator (DCO) allows wake-up from low-power modes to active mode in less than 1 µs.
The MSP430F23x0 series is an ultra-low-power microcontroller with two built-in 16-bit timers, one universal serial communication interface (USCI), a versatile analog comparator, and 32 I/O pins.
The Texas Instruments MSP430 family of ultra-low-power microcontrollers consists of several devices featuring different sets of peripherals targeted for various applications. The architecture, combined with five low-power modes, is optimized to achieve extended battery life in portable measurement applications. The device features a powerful 16-bit RISC CPU, 16-bit registers, and constant generators that contribute to maximum code efficiency. The digitally controlled oscillator (DCO) allows wake-up from low-power modes to active mode in less than 1 µs.
The MSP430F23x0 series is an ultra-low-power microcontroller with two built-in 16-bit timers, one universal serial communication interface (USCI), a versatile analog comparator, and 32 I/O pins. | FLASH | 40-VFQFN Exposed Pad | Internal | 1K x 8 | Slope A/D | MSP430 CPU16 | Surface Mount | 16 MHz | 32 I/O | I2C, IrDA, LINbus, SCI, SPI, UART/USART | 105 °C | -40 °C | 40-VQFN (6x6) | 8 KB | 3.6 V | 1.8 V | 16-Bit |
Texas Instruments MSP430F2330IRHARThe Texas Instruments MSP430 family of ultra-low-power microcontrollers consists of several devices featuring different sets of peripherals targeted for various applications. The architecture, combined with five low-power modes, is optimized to achieve extended battery life in portable measurement applications. The device features a powerful 16-bit RISC CPU, 16-bit registers, and constant generators that contribute to maximum code efficiency. The digitally controlled oscillator (DCO) allows wake-up from low-power modes to active mode in less than 1 µs.
The MSP430F23x0 series is an ultra-low-power microcontroller with two built-in 16-bit timers, one universal serial communication interface (USCI), a versatile analog comparator, and 32 I/O pins.
The Texas Instruments MSP430 family of ultra-low-power microcontrollers consists of several devices featuring different sets of peripherals targeted for various applications. The architecture, combined with five low-power modes, is optimized to achieve extended battery life in portable measurement applications. The device features a powerful 16-bit RISC CPU, 16-bit registers, and constant generators that contribute to maximum code efficiency. The digitally controlled oscillator (DCO) allows wake-up from low-power modes to active mode in less than 1 µs.
The MSP430F23x0 series is an ultra-low-power microcontroller with two built-in 16-bit timers, one universal serial communication interface (USCI), a versatile analog comparator, and 32 I/O pins. | FLASH | 40-VFQFN Exposed Pad | Internal | 1K x 8 | Slope A/D | MSP430 CPU16 | Surface Mount | 16 MHz | 32 I/O | I2C, IrDA, LINbus, SCI, SPI, UART/USART | 85 °C | -40 °C | 40-VQFN (6x6) | 8 KB | 3.6 V | 1.8 V | 16-Bit |
Description
General part information
MSP430F2330 Series
MSP430 CPU16 MSP430F2xx Microcontroller IC 16-Bit 16MHz 8KB (8K x 8 + 256B) FLASH 49-DSBGA (2.8x2.8)
