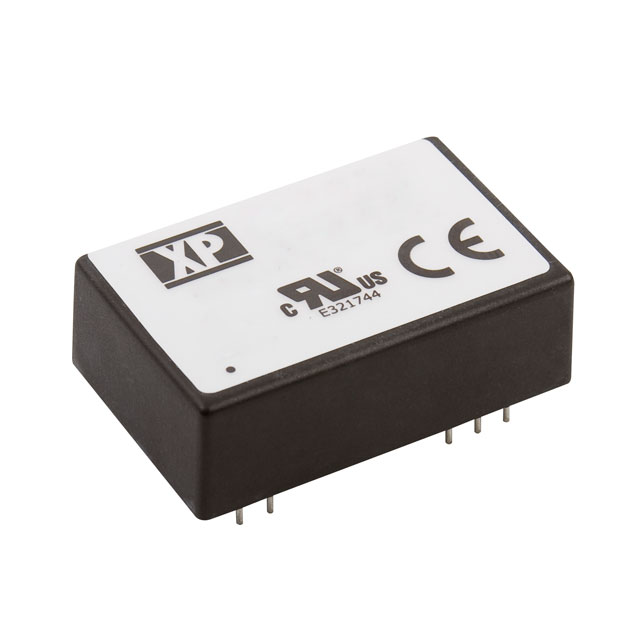

JHM0324D12 - MFG_JHM03

JHM0324D12

Active
XP POWER

ISOLATED BOARD MOUNT DC/DC CONVERTER, MEDICAL, DIP, THROUGH HOLE, FIXED, 30 V, 20 V, 2 ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheetJHM(03, 06) Series CB Report+1
JHM0324D12 - MFG_JHM03

JHM0324D12

Active
XP POWER

ISOLATED BOARD MOUNT DC/DC CONVERTER, MEDICAL, DIP, THROUGH HOLE, FIXED, 30 V, 20 V, 2 ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsDatasheetJHM(03, 06) Series CB Report+1

Technical Specifications

Parameters and characteristics for this part

SpecificationJHM0324D12
ApplicationsMedical
Current - Output (Max) [Max]125 mA
Efficiency80 %
FeaturesSCP, UVLO, OVP, OCP
Mounting TypeThrough Hole
Number of Outputs2
Operating Temperature [Max]100 °C
Operating Temperature [Min]-20 C
Package / Case9 PC Pad
Package / Case24-DIP Module
Power (Watts)3 W
Size / Dimension [x]1.25 "
Size / Dimension [x]31.8 mm
Size / Dimension [y]0.8 in
Size / Dimension [y]20.3 mm
Size / Dimension [z]10.4 mm
Size / Dimension [z]0.41 "
TypeIsolated Module
Voltage - Input (Max) [Max]30 V
Voltage - Input (Min) [Min]20 V
Voltage - Isolation3000 V
Voltage - Output 112 V
Voltage - Output 2-12 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyTube 10$ 31.95
NewarkEach 1$ 33.91
5$ 32.69
10$ 31.68
50$ 30.40
100$ 28.50

Description

General part information

JHM0324 Series

Isolated Module DC DC Converter 2 Output 12V -12V 125mA 20V - 30V Input
