895-059-521-403

Active

EDAC Inc.

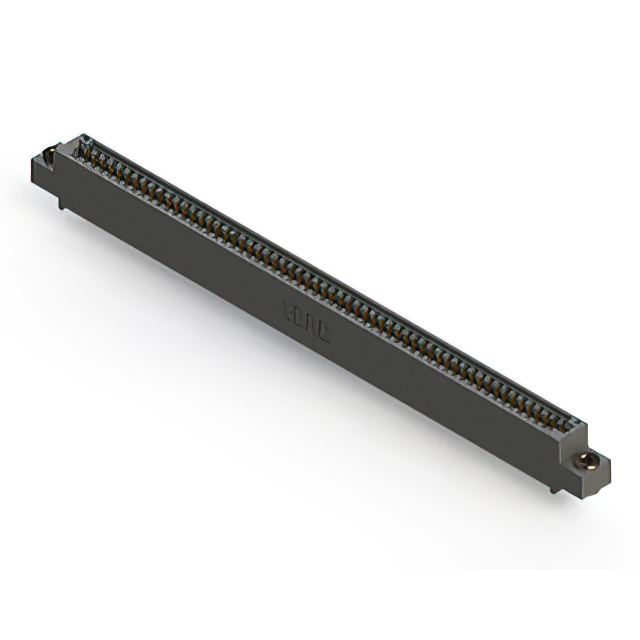

CONN EDGE SINGLE FML 59POS 0.100

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

895-059-521-403

Active

EDAC Inc.

CONN EDGE SINGLE FML 59POS 0.100

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	895-059-521-403

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Single Edge
Color	Black
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Cantilever
Flange Feature	Top Mount Opening, Floating Bobbin
Flange Feature [diameter]	2.95 mm
Flange Feature [diameter]	0.116 in
Gender	Female
Material - Insulation	Polyphenylene Sulfide (PPS)
Mounting Type	Through Hole
Number of Positions	59
Number of Positions/Bay/Row [custom]	59
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Read Out	Single
Termination	Solder
Termination Rows	1

895-059 Series

...

Part	Gender	Operating Temperature [Max]	Operating Temperature [Min]	Card Type	Material - Insulation	Contact Finish	Number of Rows	Mounting Type	Termination	Color	Pitch [x]	Pitch [x]	Flange Feature	Termination Rows	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Number of Positions/Bay/Row [custom]	Contact Material	Read Out	Number of Positions	Contact Type	Contact Finish Thickness	Contact Finish Thickness	Flange Feature [diameter]	Flange Feature [diameter]
EDAC Inc. 895-059-525-407	Female	125 °C	-40 °C	Non Specified - Single Edge	Polyphenylene Sulfide (PPS)	Gold	1	Through Hole	Solder	Black	2.54 mm	0.1 in	M3 Threaded Insert Top Mount Opening	1	1.37 mm	0.054 "	1.78 mm	0.07 in	59	Copper Alloy	Single	59	Cantilever	10 Áin	0.25 Ám
EDAC Inc. 895-059-521-604	Female	125 °C	-40 °C	Non Specified - Single Edge	Polyphenylene Sulfide (PPS)	Gold	1	Through Hole	Solder	Black	2.54 mm	0.1 in	Top Mount Opening Unthreaded	1	1.37 mm	0.054 "	1.78 mm	0.07 in	59	Copper Alloy	Single	59	Cantilever	10 Áin	0.25 Ám	0.156 in	3.96 mm
EDAC Inc. 895-059-523-403	Female	125 °C	-40 °C	Non Specified - Single Edge	Polyphenylene Sulfide (PPS)	Gold	1	Through Hole	Solder	Black	2.54 mm	0.1 in	Floating Bobbin Top Mount Opening	1	1.37 mm	0.054 "	1.78 mm	0.07 in	59	Copper Alloy	Single	59	Cantilever	10 Áin	0.25 Ám	0.116 in	2.95 mm
EDAC Inc. 895-059-523-108	Female	125 °C	-40 °C	Non Specified - Single Edge	Polyphenylene Sulfide (PPS)	Gold	1	Through Hole	Solder	Black	2.54 mm	0.1 in	4-40 Threaded Insert Top Mount Opening	1	1.37 mm	0.054 "	1.78 mm	0.07 in	59	Copper Alloy	Single	59	Cantilever	10 Áin	0.25 Ám
EDAC Inc. 895-059-524-112	Female	125 °C	-40 °C	Non Specified - Single Edge	Polyphenylene Sulfide (PPS)	Gold	1	Through Hole	Solder	Black	2.54 mm	0.1 in	Flush Mount Side Opening Unthreaded	1	1.37 mm	0.054 "	1.78 mm	0.07 in	59	Copper Alloy	Single	59	Cantilever	10 Áin	0.25 Ám	0.128 "	3.25 mm
EDAC Inc. 895-059-521-403	Female	125 °C	-40 °C	Non Specified - Single Edge	Polyphenylene Sulfide (PPS)	Gold	1	Through Hole	Solder	Black	2.54 mm	0.1 in	Floating Bobbin Top Mount Opening	1	1.37 mm	0.054 "	1.78 mm	0.07 in	59	Copper Alloy	Single	59	Cantilever	10 Áin	0.25 Ám	0.116 in	2.95 mm
EDAC Inc. 895-059-525-604	Female	125 °C	-40 °C	Non Specified - Single Edge	Polyphenylene Sulfide (PPS)	Gold	1	Through Hole	Solder	Black	2.54 mm	0.1 in	Top Mount Opening Unthreaded	1	1.37 mm	0.054 "	1.78 mm	0.07 in	59	Copper Alloy	Single	59	Cantilever	10 Áin	0.25 Ám	0.156 in	3.96 mm
EDAC Inc. 895-059-559-104	Female	125 °C	-40 °C	Non Specified - Single Edge	Polyphenylene Sulfide (PPS)	Gold	1	Through Hole Right Angle	Solder	Black	2.54 mm	0.1 in	Flush Mount Top Opening Unthreaded	1	1.37 mm	0.054 "	1.78 mm	0.07 in	59	Copper Alloy	Single	59	Cantilever	10 Áin	0.25 Ám	0.156 in	3.96 mm
EDAC Inc. 895-059-540-112	Female	125 °C	-40 °C	Non Specified - Single Edge	Polyphenylene Sulfide (PPS)	Gold	1	Through Hole	Wire Wrap	Black	2.54 mm	0.1 in	Flush Mount Side Opening Unthreaded	1	1.37 mm	0.054 "	1.78 mm	0.07 in	59	Copper Alloy	Single	59	Cantilever	10 Áin	0.25 Ám	0.128 "	3.25 mm
EDAC Inc. 895-059-541-403	Female	125 °C	-40 °C	Non Specified - Single Edge	Polyphenylene Sulfide (PPS)	Gold	1	Through Hole	Wire Wrap	Black	2.54 mm	0.1 in	Floating Bobbin Top Mount Opening	1	1.37 mm	0.054 "	1.78 mm	0.07 in	59	Copper Alloy	Single	59	Cantilever	10 Áin	0.25 Ám	0.116 in	2.95 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 136.70
Newark	Each	1	$ 164.05
		100	$ 103.23
		250	$ 90.14
		500	$ 82.23
		1000	$ 68.13

Description

General part information

895-059 Series

59 Position Female Connector Non Specified - Single Edge Gold 0.100" (2.54mm) Black
