EDAC Inc.

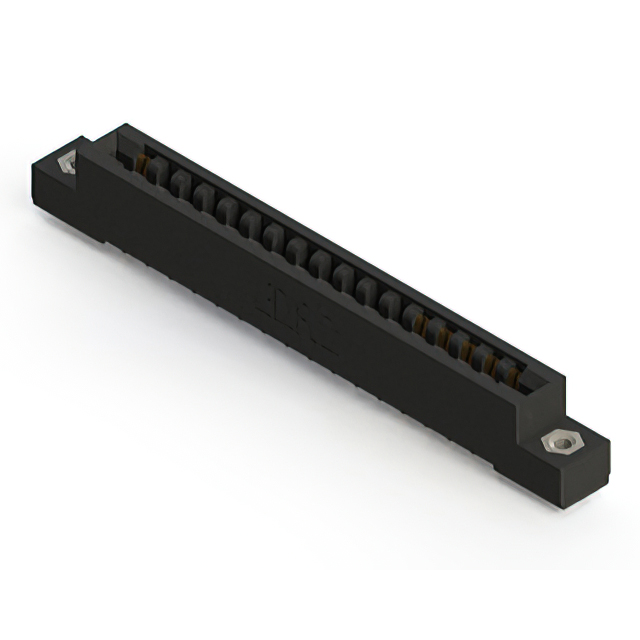

CARD EDGE CONNECTOR, 34 CONTACT(S), 2 ROW(S), FEMALE, RIGHT ANGLE, 0.156 INCH PITCH, SURFACE MOUNT TERMINAL, #4-40UNC, BLACK INSULATOR,

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

857-034-556-208

Active

EDAC Inc.

CARD EDGE CONNECTOR, 34 CONTACT(S), 2 ROW(S), FEMALE, RIGHT ANGLE, 0.156 INCH PITCH, SURFACE MOUNT TERMINAL, #4-40UNC, BLACK INSULATOR,

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	857-034-556-208

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Dual Edge
Color	Black
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Semi Bellows
Features	Card Extender
Flange Feature	Flush Mount, Threaded Insert, 4-40, Top Opening
Gender	Female
Material - Insulation	Polyphenylene Sulfide (PPS)
Mounting Type	Board Edge, Straddle Mount
Number of Positions	34
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.156 in
Pitch [x]	3.96 mm
Read Out	Dual
Termination	Solder
Termination Rows	2

857-034 Series

...

Part	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Read Out	Contact Type	Gender	Card Type	Number of Rows	Number of Positions	Number of Positions/Bay/Row [custom]	Operating Temperature [Max]	Operating Temperature [Min]	Color	Contact Material	Termination	Material - Insulation	Termination Rows	Flange Feature [diameter]	Flange Feature	Flange Feature [diameter]	Mounting Type	Pitch [x]	Pitch [x]	Contact Finish	Features	Contact Finish Thickness	Contact Finish Thickness	Flange Feature	Flange Feature
EDAC Inc. 857-034-457-103	1.37 mm	0.054 "	1.78 mm	0.07 in	Dual	Semi Bellows	Female	Non Specified - Dual Edge	2	68	34	125 °C	-40 °C	Black	Copper Alloy	Solder	Polyphenylene Sulfide (PPS)	1	0.116 in	Floating Bobbin Flush Mount	2.95 mm	Through Hole Right Angle	0.156 in	3.96 mm	Tin
EDAC Inc. 857-034-556-208	1.37 mm	0.054 "	1.78 mm	0.07 in	Dual	Semi Bellows	Female	Non Specified - Dual Edge	2	34		125 °C	-40 °C	Black	Copper Alloy	Solder	Polyphenylene Sulfide (PPS)	2		4-40 Flush Mount Threaded Insert Top Opening		Board Edge Straddle Mount	0.156 in	3.96 mm	Gold	Card Extender	10 Áin	0.25 Ám
EDAC Inc. 857-034-556-201	1.37 mm	0.054 "	1.78 mm	0.07 in	Dual	Semi Bellows	Female	Non Specified - Dual Edge	2	34		125 °C	-40 °C	Black	Copper Alloy	Solder	Polyphenylene Sulfide (PPS)	2				Board Edge Straddle Mount	0.156 in	3.96 mm	Gold	Card Extender	10 Áin	0.25 Ám
EDAC Inc. 857-034-547-112	1.37 mm	0.054 "	1.78 mm	0.07 in	Single	Semi Bellows	Female	Non Specified - Single Edge	1	34	34	125 °C	-40 °C	Black	Copper Alloy	Wire Wrap	Polyphenylene Sulfide (PPS)	1		Side Mount Opening Unthreaded		Through Hole	0.156 in	3.96 mm	Gold		10 Áin	0.25 Ám	3.25 mm	0.128 in
EDAC Inc. 857-034-547-108	1.37 mm	0.054 "	1.78 mm	0.07 in	Single	Semi Bellows	Female	Non Specified - Single Edge	1	34	34	125 °C	-40 °C	Black	Copper Alloy	Wire Wrap	Polyphenylene Sulfide (PPS)	1		4-40 Flush Mount Threaded Insert Top Opening		Through Hole	0.156 in	3.96 mm	Gold		10 Áin	0.25 Ám
EDAC Inc. 857-034-500-202	1.37 mm	0.054 "	1.78 mm	0.07 in	Dual	Semi Bellows	Female	Non Specified - Dual Edge	2	34		125 °C	-40 °C	Black	Copper Alloy	Solder Eyelet(s)	Polyphenylene Sulfide (PPS)	2	0.128 "	Flush Mount Top Opening Unthreaded	3.25 mm	Through Hole	0.156 in	3.96 mm	Gold		10 Áin	0.25 Ám
EDAC Inc. 857-034-459-204	1.37 mm	0.054 "	1.78 mm	0.07 in	Single	Semi Bellows	Female	Non Specified - Dual Edge	2	34		125 °C	-40 °C	Black	Copper Alloy	Solder	Polyphenylene Sulfide (PPS)	2	0.156 in	Flush Mount Top Opening Unthreaded	3.96 mm	Through Hole Right Angle	0.156 in	3.96 mm	Tin
EDAC Inc. 857-034-425-101	1.37 mm	0.054 "	1.78 mm	0.07 in	Single	Semi Bellows	Female	Non Specified - Single Edge	1	34	34	125 °C	-40 °C	Black	Copper Alloy	Solder	Polyphenylene Sulfide (PPS)	1				Through Hole	0.156 in	3.96 mm	Tin
EDAC Inc. 857-034-527-101	1.37 mm	0.054 "	1.78 mm	0.07 in	Single	Semi Bellows	Female	Non Specified - Single Edge	1	34	34	125 °C	-40 °C	Black	Copper Alloy	Solder	Polyphenylene Sulfide (PPS)	1				Through Hole	0.156 in	3.96 mm	Gold		10 Áin	0.25 Ám
EDAC Inc. 857-034-458-201	1.37 mm	0.054 "	1.78 mm	0.07 in	Single	Semi Bellows	Female	Non Specified - Dual Edge	2	34		125 °C	-40 °C	Black	Copper Alloy	Solder	Polyphenylene Sulfide (PPS)	2				Through Hole Right Angle	0.156 in	3.96 mm	Tin
