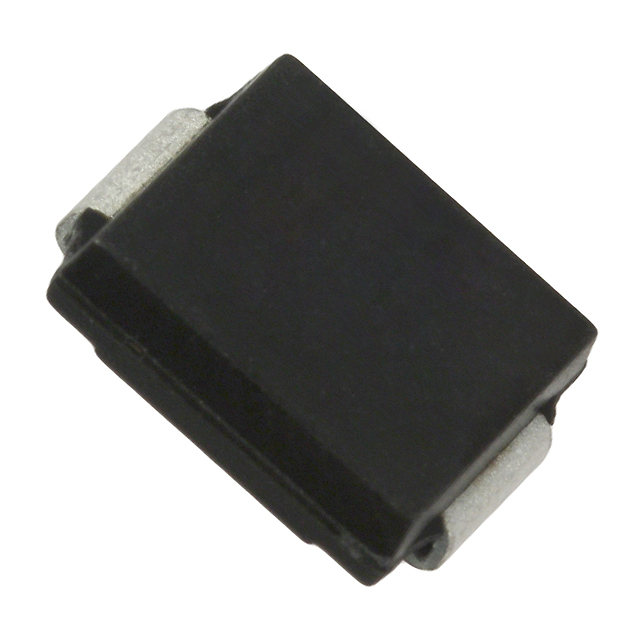

SMLJ64CA

Active

Bourns Inc.

TVS DIODE, SMLJ SERIES, BIDIRECTIONAL, 64 V, 103 V, DO-214AB (SMC), 2 PINS

Search across all available documentation for this part.

Active

Bourns Inc.

TVS DIODE, SMLJ SERIES, BIDIRECTIONAL, 64 V, 103 V, DO-214AB (SMC), 2 PINS

Technical Specifications

Parameters and characteristics for this part

Specification	SMLJ64CA

Applications	General Purpose
Bidirectional Channels [custom]	1
Current - Peak Pulse (10/1000µs)	29.2 A
Mounting Type	Surface Mount
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-55 °C
Package / Case	SMC, DO-214AB
Power - Peak Pulse	3000 W
Power - Peak Pulse	3 kW
Power Line Protection	False
Supplier Device Package	SMC (DO-214AB)
Type	Zener
Voltage - Breakdown (Min) [Min]	71.1 V
Voltage - Clamping (Max) @ Ipp [Max]	103 V
Voltage - Reverse Standoff (Typ)	64 V

Part	Power - Peak Pulse	Power - Peak Pulse	Power Line Protection	Voltage - Reverse Standoff (Typ)	Mounting Type	Applications	Voltage - Breakdown (Min) [Min]	Supplier Device Package	Bidirectional Channels [custom]	Voltage - Clamping (Max) @ Ipp [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Current - Peak Pulse (10/1000µs)	Type	Package / Case
Bourns Inc. SMLJ64CA	3000 W	3 kW		64 V	Surface Mount	General Purpose	71.1 V	SMC (DO-214AB)	1	103 V	-55 °C	150 °C	29.2 A	Zener	DO-214AB SMC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

103V Clamp 29.2A Ipp Tvs Diode Surface Mount SMC (DO-214AB)
