CCL012A

Active

Essentra Access Solutions

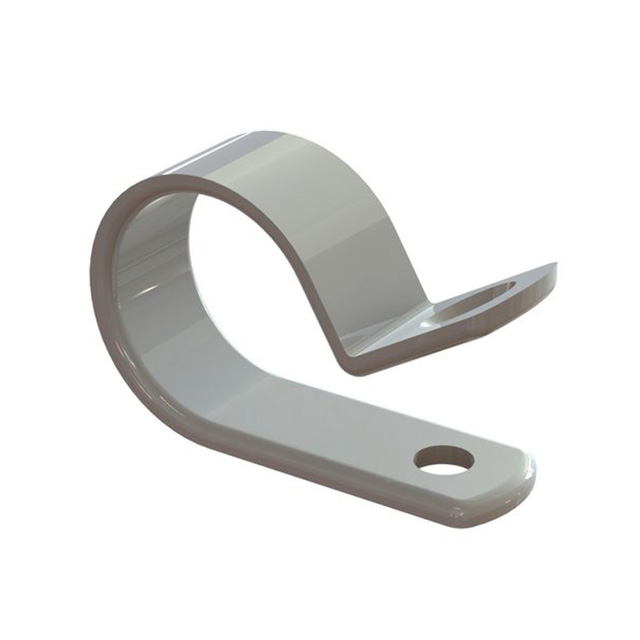

CABLE CLAMP - SCREW MOUNT, NYLON

Search across all available documentation for this part.

Active

Essentra Access Solutions

CABLE CLAMP - SCREW MOUNT, NYLON

Technical Specifications

Parameters and characteristics for this part

Specification	CCL012A

Bundle Center to Mounting Center	30 mm
Bundle Center to Mounting Center	1.181 in
Color	Natural
Material	Polyamide (PA66), Nylon 6/6
Material Flammability Rating	UL94 V-2
Material Thickness	0.063 in
Material Thickness	1.6 mm
Mounting Type	Fastener
Opening Size	36.73 mm
Opening Size [z]	1.446 in
Panel Hole Size	0.181 in
Panel Hole Size	4.6 mm
Screw Size	M4
Screw Size	#8
Type	Clamp, P-Type
Width	12 mm
Width	0.472 in

Part	Color	Material	Type	Opening Size [z]	Opening Size	Mounting Type	Panel Hole Size	Panel Hole Size	Screw Size	Screw Size	Bundle Center to Mounting Center	Bundle Center to Mounting Center	Width	Width	Material Flammability Rating	Material Thickness	Material Thickness
Essentra Access Solutions CCL012A	Natural	Polyamide (PA66) Nylon 6/6	Clamp P-Type	1.446 in	36.73 mm	Fastener	0.181 in	4.6 mm	M4	#8	30 mm	1.181 in	12 mm	0.472 in	UL94 V-2	0.063 in	1.6 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Clamp, P-Type Natural Fastener 1.446" (36.73mm)
