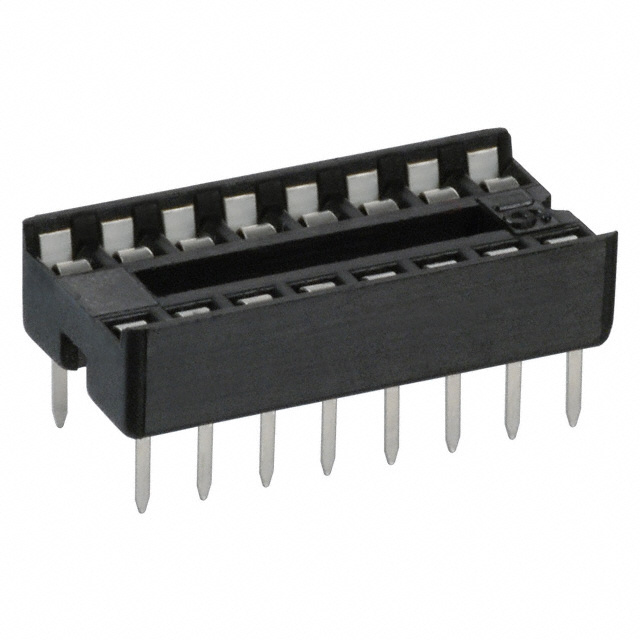

4816-3000-CP

Active

3M (TC)

IC & COMPONENT SOCKET, 16 CONTACTS, DIP SOCKET, 2.54 MM, 4800 SERIES, 7.62 MM, PHOSPHOR BRONZE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

4816-3000-CP

Active

3M (TC)

IC & COMPONENT SOCKET, 16 CONTACTS, DIP SOCKET, 2.54 MM, 4800 SERIES, 7.62 MM, PHOSPHOR BRONZE

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	4816-3000-CP

Contact Finish - Post	Tin
Contact Finish Thickness - Mating	35.4 µin
Contact Finish Thickness - Mating	0.9 µm
Contact Finish Thickness - Post	35 µin
Contact Finish Thickness - Post	0.9 µm
Contact Material - Mating	Phosphor Bronze
Contact Material - Post	Phosphor Bronze
Current Rating (Amps)	1 A
Features	Open Frame
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions or Pins (Grid)	16
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Pitch - Post	2.54 mm
Pitch - Post	0.1 in
Termination	Solder
Type	0.3 "
Type	7.62 mm
Type	DIP

4816 Series

Part	Mounting Type	Pitch - Mating	Pitch - Mating	Number of Positions or Pins (Grid)	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Current Rating (Amps)	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Material - Post	Contact Finish - Post	Material Flammability Rating	Termination	Features	Operating Temperature [Min]	Operating Temperature [Max]	Type	Type	Type	Contact Material - Mating	Pitch - Post	Pitch - Post
3M (TC) 4816-3004-CP	Through Hole	0.1 in	2.54 mm	16	35 µin	0.9 µm	1 A	35.4 µin	0.9 µm	Phosphor Bronze	Tin	UL94 V-0	Solder	Open Frame	-25 °C	85 °C	0.3 "	7.62 mm	DIP	Phosphor Bronze	2.54 mm	0.1 in
3M (TC) 4816-3000-CP	Through Hole	0.1 in	2.54 mm	16	35 µin	0.9 µm	1 A	35.4 µin	0.9 µm	Phosphor Bronze	Tin	UL94 V-0	Solder	Open Frame	-25 °C	85 °C	0.3 "	7.62 mm	DIP	Phosphor Bronze	2.54 mm	0.1 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 0.71
		10	$ 0.62
		25	$ 0.57
		50	$ 0.53
		100	$ 0.51
		250	$ 0.47
		500	$ 0.44
		1000	$ 0.37
		2500	$ 0.33
Newark	Each	1	$ 0.74
		10	$ 0.70
		25	$ 0.63
		50	$ 0.56
		100	$ 0.54
		250	$ 0.49
		500	$ 0.47
		1000	$ 0.38

Description

General part information

4816 Series

The 4816-3000-CP is a 16-way stamped and formed Dual-Wipe DIP Socket with matte tin-plated phosphor bronze contacts. The 4800 series socket has polyester glass filled insulation, 0.3-inch row spacing and straight tail. Dual leaf, high compression contact provides reliable termination.
