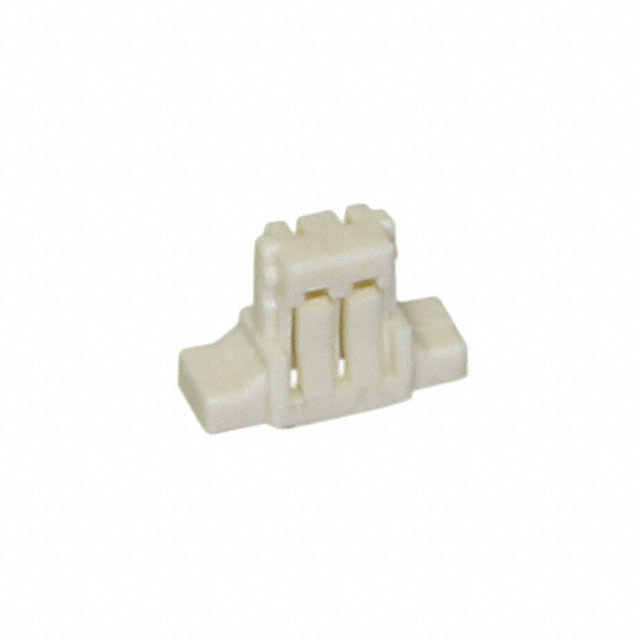

10145492-02LF

Active

Amphenol ICC (FCI)

CONN RCPT HSG 2POS 0.80MM

Deep-Dive with AI

Search across all available documentation for this part.

Documentsminitek 0 80 productpresentation Other Related Document Datasheet

10145492-02LF

Active

Amphenol ICC (FCI)

CONN RCPT HSG 2POS 0.80MM

Deep-Dive with AI

Documentsminitek 0 80 productpresentation Other Related Document Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	10145492-02LF

Color	Cream
Connector Type	Receptacle
Contact Termination	Crimp
Contact Type	Female Socket
Fastening Type	Push-Pull
Features	Glow Wire Compliant
Insulation Material	Liquid Crystal Polymer (LCP), Halogen Free
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	2
Number of Rows	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Pitch [x]	0.8 mm
Pitch [x]	0.031 in

10145492 Series

Part	Color	Connector Type	Contact Termination	Insulation Material	Pitch [x]	Pitch [x]	Mounting Type	Contact Type	Fastening Type	Number of Positions	Features	Note	Number of Rows	Operating Temperature [Min]	Operating Temperature [Max]
Amphenol ICC (FCI) 10145492-10LF	Cream	Receptacle	Crimp	Liquid Crystal Polymer (LCP) Halogen Free	0.8 mm	0.031 in	Free Hanging (In-Line)	Female Socket	Push-Pull	10	Glow Wire Compliant	Contacts Not Included	1	-25 °C	85 °C
Amphenol ICC (FCI) 10145492-07LF	Cream	Receptacle	Crimp	Liquid Crystal Polymer (LCP) Halogen Free	0.8 mm	0.031 in	Free Hanging (In-Line)	Female Socket	Push-Pull	7	Glow Wire Compliant	Contacts Not Included	1	-25 °C	85 °C
Amphenol ICC (FCI) 10145492-15LF	Cream	Receptacle	Crimp	Liquid Crystal Polymer (LCP) Halogen Free	0.8 mm	0.031 in	Free Hanging (In-Line)	Female Socket	Push-Pull	15	Glow Wire Compliant	Contacts Not Included	1	-25 °C	85 °C
Amphenol ICC (FCI) 10145492-03LF	Cream	Receptacle	Crimp	Liquid Crystal Polymer (LCP) Halogen Free	0.8 mm	0.031 in	Free Hanging (In-Line)	Female Socket	Push-Pull		Glow Wire Compliant	Contacts Not Included	1	-25 °C	85 °C
Amphenol ICC (FCI) 10145492-09LF	Natural	Receptacle	Crimp	Liquid Crystal Polymer (LCP) Halogen Free	0.8 mm	0.031 in	Free Hanging (In-Line)	Female Socket		9	Glow Wire Compliant		1	-40 °C	85 °C
Amphenol ICC (FCI) 10145492-02LF	Cream	Receptacle	Crimp	Liquid Crystal Polymer (LCP) Halogen Free	0.8 mm	0.031 in	Free Hanging (In-Line)	Female Socket	Push-Pull	2	Glow Wire Compliant	Contacts Not Included	1	-25 °C	85 °C
Amphenol ICC (FCI) 10145492-04LF	Cream	Receptacle	Crimp	Liquid Crystal Polymer (LCP) Halogen Free	0.8 mm	0.031 in	Free Hanging (In-Line)	Female Socket	Push-Pull	4	Glow Wire Compliant	Contacts Not Included	1	-25 °C	85 °C
Amphenol ICC (FCI) 10145492-12LF	Cream	Receptacle	Crimp	Liquid Crystal Polymer (LCP) Halogen Free	0.8 mm	0.031 in	Free Hanging (In-Line)	Female Socket	Push-Pull	12	Glow Wire Compliant	Contacts Not Included	1	-25 °C	85 °C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.21
		10	$ 0.16
		25	$ 0.14
		50	$ 0.13
		100	$ 0.12
		250	$ 0.11
		500	$ 0.10
		1000	$ 0.09
		2500	$ 0.09
