78M6631-EVM-1
ActiveAnalog Devices Inc./Maxim Integrated

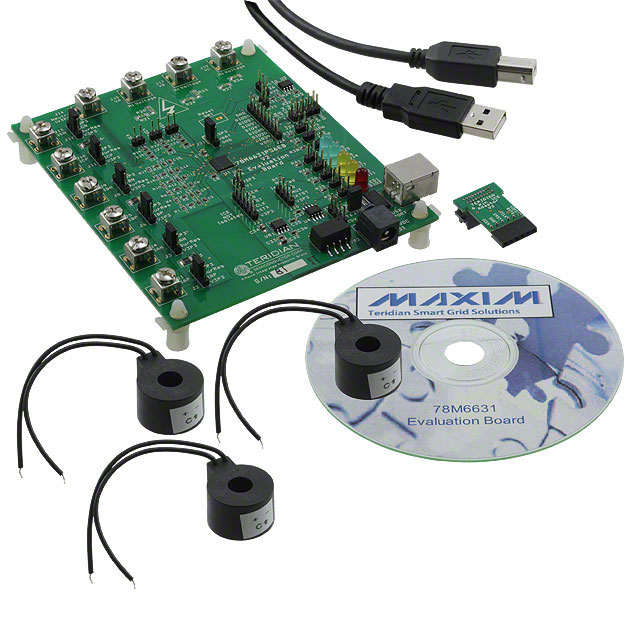

EVAL BOARD 78M6631
Deep-Dive with AI
Search across all available documentation for this part.
78M6631-EVM-1
ActiveAnalog Devices Inc./Maxim Integrated
EVAL BOARD 78M6631
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 78M6631-EVM-1 | 78M6631 Series |
|---|---|---|
| Current - Supply | - | 9.1 mA |
| Function | Energy/Power Meter | Energy/Power Meter |
| Input Impedance | - | 90 kOhm |
| Input Impedance | - | 40 kOhm |
| Measurement Error | - | 0.5 % |
| Meter Type | - | 3 Phase |
| Mounting Type | - | Surface Mount |
| Operating Temperature | - | 85 °C |
| Operating Temperature | - | -40 °C |
| Package / Case | - | 68-VFQFN Exposed Pad, 56-WFQFN Exposed Pad |
| Supplied Contents | Cable(s), Board(s) | Cable(s), Board(s) |
| Supplier Device Package | - | 68-SQFN (8x8), 56-TQFN (7x7) |
| Type | Power Management | Power Management |
| Utilized IC / Part | 78M6631 | 78M6631 |
| Voltage - I/O High | - | 2 V |
| Voltage - I/O Low | - | 0.8 V |
| Voltage - Supply | - | 3 V |
| Voltage - Supply | - | 3.6 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 360.00 | |
78M6631 Series
EVAL BOARD 78M6631
| Part | Utilized IC / Part | Supplied Contents | Function | Type | Voltage - Supply [Min] | Voltage - Supply [Max] | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - I/O Low | Current - Supply | Supplier Device Package | Package / Case | Voltage - I/O High | Meter Type | Input Impedance [Max] | Input Impedance [Min] | Mounting Type | Measurement Error |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Analog Devices Inc./Maxim Integrated 78M6631-EVM-1 | 78M6631 | Board(s), Cable(s) | Energy/Power Meter | Power Management | ||||||||||||||
Analog Devices Inc./Maxim Integrated 78M6631-IM/F/P2 | 3 V | 3.6 V | 85 °C | -40 °C | 0.8 V | 9.1 mA | 68-SQFN (8x8) | 68-VFQFN Exposed Pad | 2 V | 3 Phase | 90 kOhm | 40 kOhm | Surface Mount | 0.5 % | ||||
Analog Devices Inc./Maxim Integrated 78M6631-IMR/F/P48 | 3 V | 3.6 V | 85 °C | -40 °C | 0.8 V | 9.1 mA | 56-TQFN (7x7) | 56-WFQFN Exposed Pad | 2 V | 3 Phase | 90 kOhm | 40 kOhm | Surface Mount | 0.5 % | ||||
Analog Devices Inc./Maxim Integrated 78M6631-IM/F | 3 V | 3.6 V | 85 °C | -40 °C | 0.8 V | 9.1 mA | 56-TQFN (7x7) | 56-WFQFN Exposed Pad | 2 V | 3 Phase | 90 kOhm | 40 kOhm | Surface Mount | 0.5 % | ||||
Analog Devices Inc./Maxim Integrated 78M6631-IMR/F | 3 V | 3.6 V | 85 °C | -40 °C | 0.8 V | 9.1 mA | 56-TQFN (7x7) | 56-WFQFN Exposed Pad | 2 V | 3 Phase | 90 kOhm | 40 kOhm | Surface Mount | 0.5 % |
Description
General part information
78M6631 Series
78M6631 Energy/Power Meter Power Management Evaluation Board
Documents
Technical documentation and resources
No documents available
