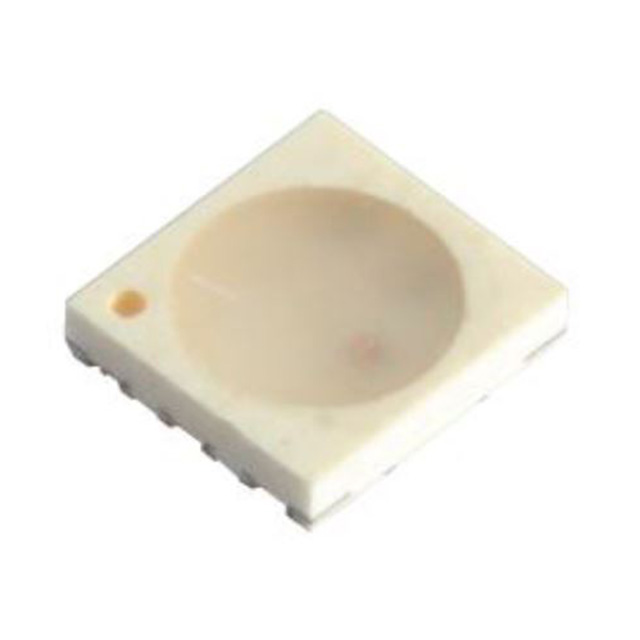

CRGB1314ASE-TR

Active

Stanley Electric Co

LED RGB DIFFUSED SMD

Search across all available documentation for this part.

Active

Stanley Electric Co

LED RGB DIFFUSED SMD

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	CRGB1314ASE-TR	CRGB1314 Series

Color	Red, Green, Blue	Red, Green, Blue
Configuration	Independent	Independent
Current - Test [custom]	22 mA	22 mA
Current - Test [custom]	14 mA	14 mA
Current - Test [custom]	23 mA	23 mA
Height (Max) [Max] [z]	0.7 mm	0.7 mm
Lens Color	White	White
Lens Size [diameter]	2.4 mm	2.4 mm
Lens Transparency	Diffused	Diffused
Millicandela Rating [custom]	300 mcd	300 mcd
Millicandela Rating [custom]	820 mcd	820 mcd
Millicandela Rating [custom]	2080 mcd	2080 mcd
Mounting Type	Surface Mount	Surface Mount
Package / Case	6-SMD, No Lead	6-SMD, No Lead
Size / Dimension [x]	3 mm	3 mm
Size / Dimension [y]	2.8 mm	2.8 mm
Voltage - Forward (Vf) (Typ) [custom]	2.1 V	2.1 V
Voltage - Forward (Vf) (Typ) [custom]	3.2 V	3.2 V
Voltage - Forward (Vf) (Typ) [custom]	3.1 V	3.1 V
Wavelength - Dominant [custom]	622 nm	622 nm
Wavelength - Dominant [custom]	532 nm	532 nm
Wavelength - Dominant [custom]	469 nm	469 nm

LED RGB DIFFUSED SMD

Part	Package / Case	Color	Millicandela Rating [custom]	Millicandela Rating [custom]	Millicandela Rating [custom]	Configuration	Lens Color	Current - Test [custom]	Current - Test [custom]	Current - Test [custom]	Height (Max) [Max] [z]	Lens Size [diameter]	Voltage - Forward (Vf) (Typ) [custom]	Voltage - Forward (Vf) (Typ) [custom]	Voltage - Forward (Vf) (Typ) [custom]	Size / Dimension [x]	Size / Dimension [y]	Lens Transparency	Mounting Type	Wavelength - Dominant [custom]	Wavelength - Dominant [custom]	Wavelength - Dominant [custom]
Stanley Electric Co CRGB1314ASE-TR	6-SMD, No Lead	Blue, Green, Red	300 mcd	820 mcd	2080 mcd	Independent	White	22 mA	14 mA	23 mA	0.7 mm	2.4 mm	2.1 V	3.2 V	3.1 V	3 mm	2.8 mm	Diffused	Surface Mount	622 nm	532 nm	469 nm
Stanley Electric Co CRGB1314ASE-500-TR	6-SMD, No Lead	Blue, Green, Red	300 mcd	820 mcd	2080 mcd	Independent	White	22 mA	14 mA	23 mA	0.7 mm	2.4 mm	2.1 V	3.2 V	3.1 V	3 mm	2.8 mm		Surface Mount	622 nm	532 nm	469 nm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Red, Green, Blue (RGB) 622nm Red, 532nm Green, 469nm Blue LED Indication - Discrete 2.1V Red, 3.2V Green, 3.1V Blue 6-SMD, No Lead
