Technical Specifications
Parameters and characteristics for this part
| Specification | STEVAL-ILL051V1 |
|---|---|
| Current - Output / Channel | 3 A |
| Features | Dimmable |
| Outputs and Type | 1 Non-Isolated Output |
| Supplied Contents | Board(s) |
| Utilized IC / Part | LED2000 |
| Voltage - Input [Max] | 18 V |
| Voltage - Input [Min] | 3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 32.50 | |
Description
General part information
STEVAL-ILL051V1 Series

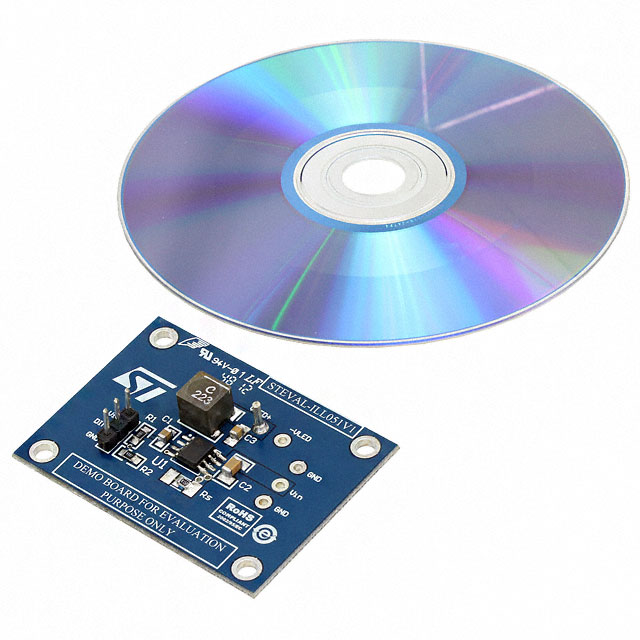

The STEVAL-ILL051V1 evaluation board provides a platform for evaluating the LED2000, an 850 kHz fixed switching frequency monolithic step-down DC-DC converter designed to operate as precise constant current source with an adjustable current capability up to 3 A DC.
The embedded PWM dimming circuitry features LED brightness control. The regulated output current is set by connecting a sensing resistor to the feedback pin.
Application size is minimized thanks to the high switching frequency and ceramic output capacitor compatibility.
