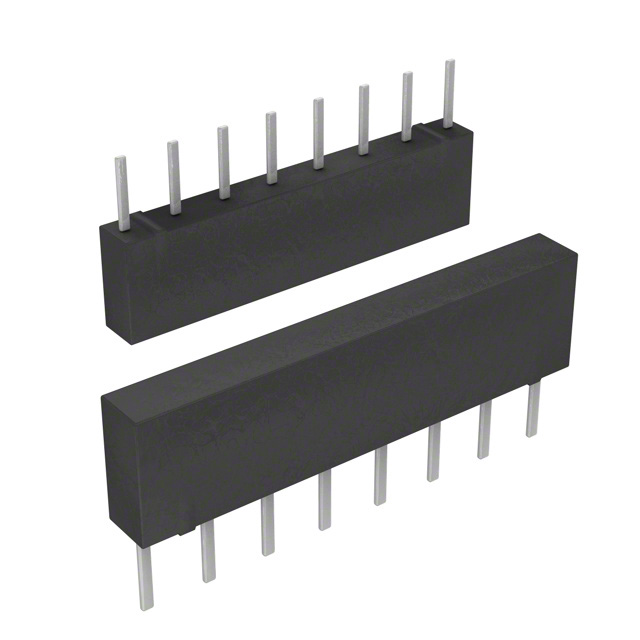

4308M-102-121LF

Active

Bourns Inc.

RES ARRAY 4 RES 120 OHM 8SIP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

4308M-102-121LF

Active

Bourns Inc.

RES ARRAY 4 RES 120 OHM 8SIP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	4308M-102-121LF

Circuit Type	Isolated
Height - Seated (Max)	6.35 mm
Height - Seated (Max) [Max]	0.25 in
Mounting Type	Through Hole
Number of Pins	8
Number of Resistors	4
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Package / Case	8-SIP
Resistance (Ohms)	120 Ohms
Resistor-Ratio-Drift	50 ppm/°C
Size / Dimension [x]	0.784 "
Size / Dimension [x]	19.91 mm
Size / Dimension [y]	0.085 in
Size / Dimension [y]	2.16 mm
Supplier Device Package	8-SIP
Temperature Coefficient	100 ppm/°C
Tolerance	2 %

4308M Series

Part	Height - Seated (Max)	Height - Seated (Max) [Max]	Tolerance	Resistance (Ohms)	Number of Pins	Number of Resistors	Resistor-Ratio-Drift	Operating Temperature [Min]	Operating Temperature [Max]	Temperature Coefficient	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Mounting Type	Package / Case	Supplier Device Package	Circuit Type	Resistance (Ohms)	Power Per Element
Bourns Inc. 4308M-102-222	6.35 mm	0.25 in	2 %	2.2 kOhms	8	4	50 ppm/°C	-55 °C	125 °C	100 ppm/°C	0.784 "	0.085 in	2.16 mm	19.91 mm	Through Hole	8-SIP	8-SIP	Isolated
Bourns Inc. 4308M-102-292LF	6.35 mm	0.25 in	2 %	2.9 kOhms	8	4	50 ppm/°C	-55 °C	125 °C	100 ppm/°C	0.784 "	0.085 in	2.16 mm	19.91 mm	Through Hole	8-SIP	8-SIP	Isolated
Bourns Inc. 4308M-102-121LF	6.35 mm	0.25 in	2 %	120 Ohms	8	4	50 ppm/°C	-55 °C	125 °C	100 ppm/°C	0.784 "	0.085 in	2.16 mm	19.91 mm	Through Hole	8-SIP	8-SIP	Isolated
Bourns Inc. 4308M-102-222LF	6.35 mm	0.25 in	2 %	2.2 kOhms	8	4	50 ppm/°C	-55 °C	125 °C	100 ppm/°C	0.784 "	0.085 in	2.16 mm	19.91 mm	Through Hole	8-SIP	8-SIP	Isolated
Bourns Inc. 4308M-101-473LF	6.35 mm	0.25 in	2 %		8	7	50 ppm/°C	-55 °C	125 °C	100 ppm/°C	0.784 "	0.085 in	2.16 mm	19.91 mm	Through Hole	8-SIP	8-SIP	Bussed	47k	250 mW
Bourns Inc. 4308M-102-101	6.35 mm	0.25 in	2 %	100 Ohms	8	4	50 ppm/°C	-55 °C	125 °C	100 ppm/°C	0.784 "	0.085 in	2.16 mm	19.91 mm	Through Hole	8-SIP	8-SIP	Isolated
Bourns Inc. 4308M-101-222LF	6.35 mm	0.25 in	2 %	2.2 kOhms	8	7	50 ppm/°C	-55 °C	125 °C	100 ppm/°C	0.784 "	0.085 in	2.16 mm	19.91 mm	Through Hole	8-SIP	8-SIP	Bussed		250 mW
Bourns Inc. 4308M-102-182LF	6.35 mm	0.25 in	2 %		8	4	50 ppm/°C	-55 °C	125 °C	100 ppm/°C	0.784 "	0.085 in	2.16 mm	19.91 mm	Through Hole	8-SIP	8-SIP	Isolated	1.8k
Bourns Inc. 4308M-102-220LF	6.35 mm	0.25 in	1 Ohm	22 Ohms	8	4	50 ppm/°C	-55 °C	125 °C	250 ppm/°C	0.784 "	0.085 in	2.16 mm	19.91 mm	Through Hole	8-SIP	8-SIP	Isolated
Bourns Inc. 4308M-101-392LF	6.35 mm	0.25 in	2 %	3.9 kOhms	8	7	50 ppm/°C	-55 °C	125 °C	100 ppm/°C	0.784 "	0.085 in	2.16 mm	19.91 mm	Through Hole	8-SIP	8-SIP	Bussed		250 mW

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	2000	$ 1.72

Description

General part information

4308M Series

120 Ohm ±2% 400mW Power Per Element Isolated 4 Resistor Network/Array ±100ppm/°C 8-SIP
