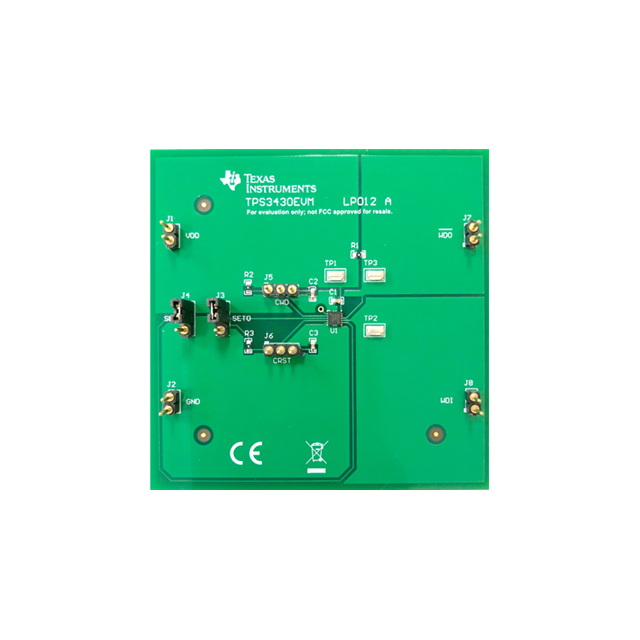

TPS3430EVM
ActiveDEVELOPMENT POWER MANAGEMENT
Deep-Dive with AI
Search across all available documentation for this part.
TPS3430EVM
ActiveDEVELOPMENT POWER MANAGEMENT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | TPS3430EVM | TPS3430 Series |
|---|---|---|
| Contents | Board(s) | Board(s) |
| Current - Supply | - | 10 µA |
| Embedded | False | False |
| Function | Timer | Timer |
| Grade | - | Automotive |
| Mounting Type | - | Surface Mount, Wettable Flank, Surface Mount |
| Operating Temperature | - | 125 °C |
| Operating Temperature | - | -40 °C |
| Package / Case | - | 10-VFDFN Exposed Pad |
| Primary Attributes | Watchdog Timer | Watchdog Timer |
| Qualification | - | AEC-Q100 |
| Secondary Attributes | On-Board Test Points | On-Board Test Points |
| Supplied Contents | Board(s) | Board(s) |
| Supplier Device Package | - | 10-VSON (3x3) |
| Type | Timing | Watchdog Circuit, Timing |
| Utilized IC / Part | TPS3430 | TPS3430 |
| Voltage - Supply | - | 6.5 V |
| Voltage - Supply | - | 1.6 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
TPS3430 Series
Automotive, window watchdog timer with programmable reset delay
| Part | Supplier Device Package | Package / Case | Qualification | Type | Operating Temperature [Max] | Operating Temperature [Min] | Current - Supply | Voltage - Supply [Max] | Voltage - Supply [Min] | Grade | Mounting Type | Function | Embedded | Primary Attributes | Utilized IC / Part | Contents | Secondary Attributes | Supplied Contents |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Texas Instruments TPS3430WQDRCRQ1The TPS3430-Q1 is a standalone automotive window watchdog timer with programmable watchdog window and programmable watchdog reset delay for automotive applications. The TPS3430-Q1 window watchdog achieves 2.5% timing accuracy (typical at 25°C) and the watchdog output (WDO) reset delay can be set by factory-programmed default delay settings, or programmed by an external capacitor. The watchdog can be disabled via the SET pins to avoid undesired watchdog timeouts during the development process or during power on.
The TPS3430-Q1 is available in a small 3.00-mm × 3.00-mm, 10-pin VSON package. The TPS3430-Q1 features wettable flanks for easy optical inspection.
The TPS3430-Q1 is a standalone automotive window watchdog timer with programmable watchdog window and programmable watchdog reset delay for automotive applications. The TPS3430-Q1 window watchdog achieves 2.5% timing accuracy (typical at 25°C) and the watchdog output (WDO) reset delay can be set by factory-programmed default delay settings, or programmed by an external capacitor. The watchdog can be disabled via the SET pins to avoid undesired watchdog timeouts during the development process or during power on.
The TPS3430-Q1 is available in a small 3.00-mm × 3.00-mm, 10-pin VSON package. The TPS3430-Q1 features wettable flanks for easy optical inspection. | 10-VSON (3x3) | 10-VFDFN Exposed Pad | AEC-Q100 | Watchdog Circuit | 125 °C | -40 °C | 10 µA | 6.5 V | 1.6 V | Automotive | Surface Mount, Wettable Flank | |||||||
Timing | Timer | Watchdog Timer | TPS3430 | Board(s) | On-Board Test Points | Board(s) | ||||||||||||
Texas Instruments TPS3430WDRCRThe TPS3430 is a standalone window watchdog timer with programmable watchdog window and programmable watchdog reset delay for a wide variety of applications. The TPS3430 window watchdog achieves 2.5% timing accuracy (typical at 25°C) and the watchdog output (WDO) reset delay can be set by factory-programmed default delay settings, or programmed by an external capacitor. The watchdog can be disabled via the SET pins to avoid undesired watchdog timeouts during the development process or during power on.
The TPS3430 is available in a small 3.00-mm × 3.00-mm, 10-pin VSON package.
The TPS3430 is a standalone window watchdog timer with programmable watchdog window and programmable watchdog reset delay for a wide variety of applications. The TPS3430 window watchdog achieves 2.5% timing accuracy (typical at 25°C) and the watchdog output (WDO) reset delay can be set by factory-programmed default delay settings, or programmed by an external capacitor. The watchdog can be disabled via the SET pins to avoid undesired watchdog timeouts during the development process or during power on.
The TPS3430 is available in a small 3.00-mm × 3.00-mm, 10-pin VSON package. | 10-VSON (3x3) | 10-VFDFN Exposed Pad | Watchdog Circuit | 125 °C | -40 °C | 10 µA | 6.5 V | 1.6 V | Surface Mount |
Description
General part information
TPS3430 Series
The TPS3430-Q1 is a standalone automotive window watchdog timer with programmable watchdog window and programmable watchdog reset delay for automotive applications. The TPS3430-Q1 window watchdog achieves 2.5% timing accuracy (typical at 25°C) and the watchdog output (WDO) reset delay can be set by factory-programmed default delay settings, or programmed by an external capacitor. The watchdog can be disabled via the SET pins to avoid undesired watchdog timeouts during the development process or during power on.
The TPS3430-Q1 is available in a small 3.00-mm × 3.00-mm, 10-pin VSON package. The TPS3430-Q1 features wettable flanks for easy optical inspection.
The TPS3430-Q1 is a standalone automotive window watchdog timer with programmable watchdog window and programmable watchdog reset delay for automotive applications. The TPS3430-Q1 window watchdog achieves 2.5% timing accuracy (typical at 25°C) and the watchdog output (WDO) reset delay can be set by factory-programmed default delay settings, or programmed by an external capacitor. The watchdog can be disabled via the SET pins to avoid undesired watchdog timeouts during the development process or during power on.
