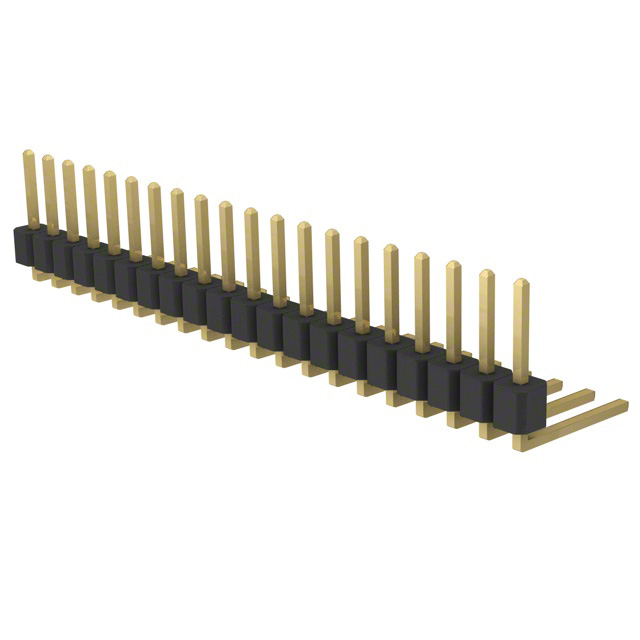

PRPC020SBCN-M71RC
ActiveSullins Connector Solutions
CONN HEADER R/A 20POS 2.54MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
PRPC020SBCN-M71RC
ActiveSullins Connector Solutions
CONN HEADER R/A 20POS 2.54MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | PRPC020SBCN-M71RC |
|---|---|
| Connector Type | Breakaway, Header |
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Gold |
| Contact Finish Thickness - Mating | Flash |
| Contact Finish Thickness - Post | Flash |
| Contact Length - Mating | 5.84 mm |
| Contact Length - Mating [x] | 0.23 in |
| Contact Length - Post [x] | 0.32 in |
| Contact Length - Post [x] | 8.13 mm |
| Contact Material | Brass |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Current Rating (Amps) | 3 A |
| Fastening Type | Push-Pull |
| Insulation Color | Black |
| Insulation Height [z] | 0.098 in |
| Insulation Height [z] | 2.5 mm |
| Insulation Material | Polybutylene Terephthalate (PBT) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 20 |
| Number of Positions Loaded | All |
| Number of Rows | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch - Mating | 0.1 in |
| Pitch - Mating | 2.54 mm |
| Shrouding | Unshrouded |
| Style | Board to Board, Cable |
| Termination | Solder |
PRPC020 Series
| Part | Shrouding | Contact Finish Thickness - Mating | Style | Insulation Height | Insulation Height | Pitch - Mating | Pitch - Mating | Contact Material | Material Flammability Rating | Operating Temperature [Min] | Operating Temperature [Max] | Connector Type | Number of Positions Loaded | Contact Shape | Insulation Color | Number of Rows | Contact Finish - Post | Contact Finish Thickness - Post | Row Spacing - Mating [x] | Row Spacing - Mating [x] | Mounting Type | Contact Type | Current Rating (Amps) | Contact Length - Post | Contact Length - Post | Insulation Material | Contact Finish - Mating | Contact Length - Mating [x] | Contact Length - Mating | Termination | Fastening Type | Number of Positions | Insulation Height [z] | Insulation Height [z] | Contact Length - Post [x] | Contact Length - Post [x] | Overall Contact Length | Overall Contact Length | Overall Contact Length | Contact Length - Mating [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Sullins Connector Solutions | Unshrouded | Flash | Board to Board Cable | 0.197 in | 5 mm | 0.1 in | 2.54 mm | Brass | UL94 V-0 | -40 °C | 105 ░C | Breakaway Header | All | Square | Black | 2 | Gold | Flash | 2.54 mm | 0.1 in | Through Hole Right Angle | Male Pin | 3 A | 0.22 in | 5.58 mm | Polybutylene Terephthalate (PBT) | Gold | 0.23 in | 5.84 mm | Solder | Push-Pull | 40 | ||||||||
Sullins Connector Solutions | Unshrouded | Flash | Board to Board Cable | 0.1 in | 2.54 mm | Brass | UL94 V-0 | -40 °C | 105 ░C | Breakaway Header | All | Square | Black | 1 | Gold | Flash | Through Hole Right Angle | Male Pin | 3 A | Polybutylene Terephthalate (PBT) | Gold | 0.23 in | 5.84 mm | Solder | Push-Pull | 20 | 0.098 in | 2.5 mm | 0.12 in | 3.05 mm | ||||||||||
Sullins Connector Solutions | Unshrouded | Flash | Board to Board Cable | 0.1 in | 2.54 mm | Brass | UL94 V-0 | -40 °C | 105 ░C | Breakaway Header | All | Square | Black | 2 | Gold | Flash | 2.54 mm | 0.1 in | Through Hole | Male Pin | 3 A | Polybutylene Terephthalate (PBT) | Gold | 0.23 in | 5.84 mm | Solder | Push-Pull | 40 | 0.098 in | 2.5 mm | 0.12 in | 3.05 mm | 0.448 in | 11.39 mm | ||||||
Sullins Connector Solutions | Unshrouded | Flash | Board to Board Cable | 0.1 in | 2.54 mm | Brass | UL94 V-0 | -40 °C | 105 ░C | Breakaway Header | All | Square | Black | 1 | Gold | Flash | Through Hole | Male Pin | 3 A | Polybutylene Terephthalate (PBT) | Gold | 0.318 " | Solder | Push-Pull | 20 | 0.098 in | 2.5 mm | 0.12 in | 3.05 mm | 0.537 " | 13.63 mm | 8.08 mm | ||||||||
Sullins Connector Solutions | Unshrouded | Flash | Board to Board Cable | 0.1 in | 2.54 mm | Brass | UL94 V-0 | -40 °C | 105 ░C | Breakaway Header | All | Square | Black | 1 | Gold | Flash | Through Hole Right Angle | Male Pin | 3 A | 0.22 in | 5.58 mm | Polybutylene Terephthalate (PBT) | Gold | 0.23 in | 5.84 mm | Solder | Push-Pull | 20 | 0.098 in | 2.5 mm | ||||||||||
Sullins Connector Solutions | Unshrouded | Flash | Board to Board Cable | 0.1 in | 2.54 mm | Brass | UL94 V-0 | -40 °C | 105 ░C | Breakaway Header | All | Square | Black | 2 | Gold | Flash | 2.54 mm | 0.1 in | Through Hole | Male Pin | 3 A | Polybutylene Terephthalate (PBT) | Gold | 0.318 " | Solder | Push-Pull | 40 | 0.098 in | 2.5 mm | 0.12 in | 3.05 mm | 0.537 " | 13.63 mm | 8.08 mm | ||||||
Sullins Connector Solutions | Unshrouded | Flash | Board to Board Cable | 0.1 in | 2.54 mm | Brass | UL94 V-0 | -40 °C | 105 ░C | Breakaway Header | All | Square | Black | 1 | Gold | Flash | Through Hole Right Angle | Male Pin | 3 A | Polybutylene Terephthalate (PBT) | Gold | 0.23 in | 5.84 mm | Solder | Push-Pull | 20 | 0.098 in | 2.5 mm | 0.32 in | 8.13 mm | ||||||||||
Sullins Connector Solutions | Unshrouded | Flash | Board to Board Cable | 0.1 in | 2.54 mm | Brass | UL94 V-0 | -40 °C | 105 ░C | Breakaway Header | All | Square | Black | 1 | Gold | Flash | Through Hole | Male Pin | 3 A | Polybutylene Terephthalate (PBT) | Gold | 0.23 in | 5.84 mm | Solder | Push-Pull | 20 | 0.098 in | 2.5 mm | 0.42 in | 10.67 mm | 0.748 in | 19.01 mm | ||||||||
Sullins Connector Solutions | Unshrouded | Flash | Board to Board Cable | 0.1 in | 2.54 mm | Brass | UL94 V-0 | -40 °C | 105 ░C | Breakaway Header | All | Square | Black | 1 | Gold | Flash | Through Hole | Male Pin | 3 A | Polybutylene Terephthalate (PBT) | Gold | 0.23 in | 5.84 mm | Solder | Push-Pull | 20 | 0.098 in | 2.5 mm | 0.12 in | 3.05 mm | 0.448 in | 11.39 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.09 | |
| 10 | $ 0.83 | |||
| 100 | $ 0.64 | |||
| 500 | $ 0.54 | |||
| 1000 | $ 0.50 | |||
| 5000 | $ 0.44 | |||
Description
General part information
PRPC020 Series
Connector Header Through Hole, Right Angle 20 position 0.100" (2.54mm)
