Q-2D03N000R072i

Active

Amphenol Custom Cable

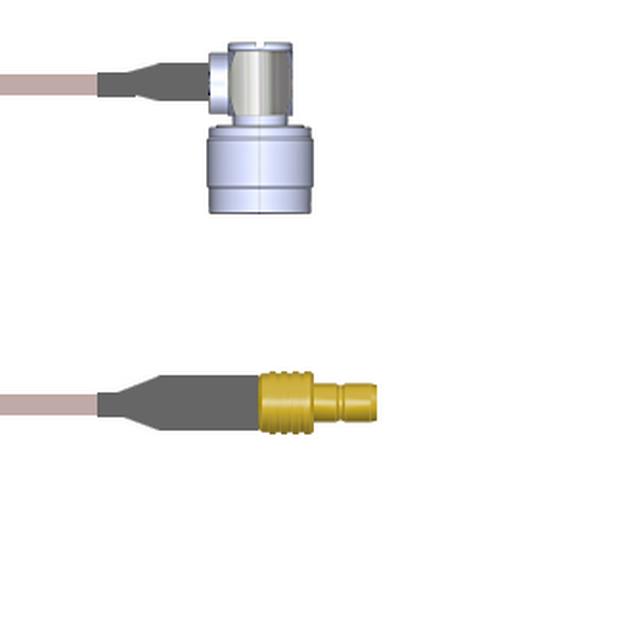

CBL ASSY SMB-NTYPE JACK-PLUG 6'

Deep-Dive with AI

Search across all available documentation for this part.

Q-2D03N000R072i

Active

Amphenol Custom Cable

CBL ASSY SMB-NTYPE JACK-PLUG 6'

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-2D03N000R072i

1st Connector	SMB Jack
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Male
2nd Connector	N-Type Plug, Right Angle
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Male
Cable Type	RG-316 DB
Color	Copper
Features	Shielded
Frequency - Max [Max]	4 GHz
Length	6 ft
Length	72 in
Length	1.8 m
Overall Impedance	50 Ohms
Style	SMB to N-Type

Q-2D03N0 Series

Part	1st Connector Mounting Type	1st Contact Gender	2nd Connector Mounting Type	Overall Impedance	1st Connector	Features	2nd Connector	Style	Color	2nd Contact Gender	Length [x]	Length [x]	Frequency - Max [Max]	Cable Type	Length	Length	Length
Amphenol Custom Cable Q-2D03N000R.25M	Free Hanging (In-Line)	Male	Free Hanging (In-Line)	50 Ohms	SMB Jack	Shielded	N-Type Plug Right Angle	SMB to N-Type	Copper	Male	9.843 "	250 mm	4 GHz	RG-316 DB
Amphenol Custom Cable Q-2D03N000R2.5M	Free Hanging (In-Line)	Male	Free Hanging (In-Line)	50 Ohms	SMB Jack	Shielded	N-Type Plug Right Angle	SMB to N-Type	Copper	Male			4 GHz	RG-316 DB	8.2 '	98.4 in	2.5 m
Amphenol Custom Cable Q-2D03N000R1.5M	Free Hanging (In-Line)	Male	Free Hanging (In-Line)	50 Ohms	SMB Jack	Shielded	N-Type Plug Right Angle	SMB to N-Type	Copper	Male			4 GHz	RG-316 DB	4.9 ft	59.1 in	1.5 m
Amphenol Custom Cable Q-2D03N000R060i	Free Hanging (In-Line)	Male	Free Hanging (In-Line)	50 Ohms	SMB Jack	Shielded	N-Type Plug Right Angle	SMB to N-Type	Copper	Male			4 GHz	RG-316 DB	5 ft	5 '	1.5 m
Amphenol Custom Cable Q-2D03N000R.75M	Free Hanging (In-Line)	Male	Free Hanging (In-Line)	50 Ohms	SMB Jack	Shielded	N-Type Plug Right Angle	SMB to N-Type	Copper	Male			4 GHz	RG-316 DB		29.53 "	750 mm
Amphenol Custom Cable Q-2D03N000R072i	Free Hanging (In-Line)	Male	Free Hanging (In-Line)	50 Ohms	SMB Jack	Shielded	N-Type Plug Right Angle	SMB to N-Type	Copper	Male			4 GHz	RG-316 DB	6 ft	72 in	1.8 m
Amphenol Custom Cable Q-2D03N000R084i	Free Hanging (In-Line)	Male	Free Hanging (In-Line)	50 Ohms	SMB Jack	Shielded	N-Type Plug Right Angle	SMB to N-Type	Copper	Male			4 GHz	RG-316 DB	7 ft	84 in	2.1 m
Amphenol Custom Cable Q-2D03N000R048i	Free Hanging (In-Line)	Male	Free Hanging (In-Line)	50 Ohms	SMB Jack	Shielded	N-Type Plug Right Angle	SMB to N-Type	Copper	Male			4 GHz	RG-316 DB	4 ft	48 in	1200 mm
Amphenol Custom Cable Q-2D03N000R036i	Free Hanging (In-Line)	Male	Free Hanging (In-Line)	50 Ohms	SMB Jack	Shielded	N-Type Plug Right Angle	SMB to N-Type	Copper	Male			4 GHz	RG-316 DB		36 in	91.44 cm
Amphenol Custom Cable Q-2D03N000R003i	Free Hanging (In-Line)	Male	Free Hanging (In-Line)	50 Ohms	SMB Jack	Shielded	N-Type Plug Right Angle	SMB to N-Type	Copper	Male			4 GHz	RG-316 DB		3 in	76.2 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 304.58
		25	$ 299.83
		50	$ 295.08
		100	$ 290.33
		250	$ 285.58

Description

General part information

Q-2D03N0 Series

Cable Assembly Coaxial SMB to N-Type RG-316 DB 72.0" (1.8m) 6.0'

Documents

Technical documentation and resources

No documents available
