0820426

Active

Phoenix Contact

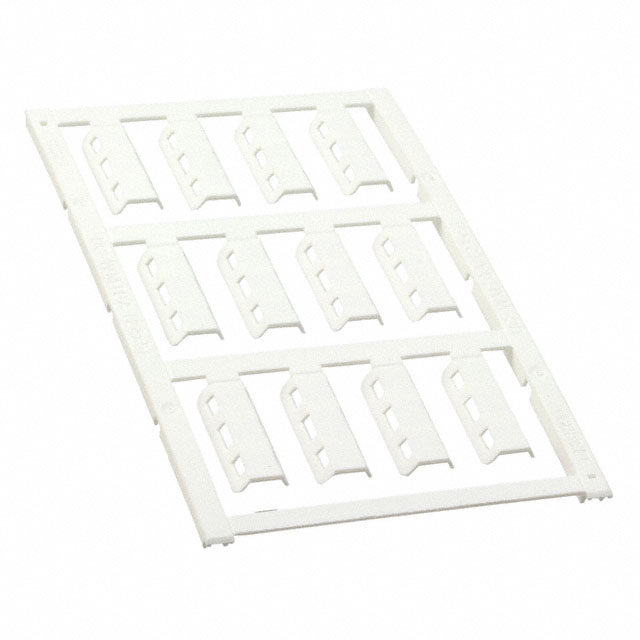

WIRE MARKER TIE 24X10MM WHT 12EA

Search across all available documentation for this part.

Active

Phoenix Contact

WIRE MARKER TIE 24X10MM WHT 12EA

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	0820426	UC-WMTBA Series

Cable Diameter [diameter]	4 mm	4 mm
Cable Diameter [diameter]	0.157 in	0.157 in
Color	White	Yellow, Green, White
Label Size	-	24 mm
Label Size	-	5 mm
Label Size	-	0.2 in
Label Size	-	0.94 in
Label Type	-	Standard
Legend	Blank	Blank, Custom
Material	Polyamide (PA), Nylon	Polyamide (PA), Nylon, Polyamide
Operating Temperature [Max]	120 °C	120 °C
Operating Temperature [Min]	-40 °C	-40 °C
Size	-	29 mm
Size	-	8 mm
Size [x]	10 mm	1.14 - 29 mm
Size [x]	0.39 "	0.39 - 1.14 "
Size [y]	24 mm	0.31 - 60 mm
Size [y]	0.94 "	0.53 - 2.36 in
Type	Wire Marker, Cable Tie	Wire Marker, Clip-On, Wire Marker, Cable Tie

WIRE MARKER CLIP-ON 60MM YELLOW

Part	Material	Type	Legend	Operating Temperature [Min]	Operating Temperature [Max]	Color	Size [y]	Size [y]	Label Type	Label Size [x]	Label Size [y]	Label Size [y]	Label Size [x]	Size [x]	Size [x]	Size [x]	Size [y]	Cable Diameter [diameter]	Cable Diameter [diameter]
Phoenix Contact 0820471	Polyamide (PA), Nylon	Wire Marker, Clip-On	Blank	-40 °C	120 °C	Yellow	2.36 in	60 mm
Phoenix Contact 0820390	Polyamide			-40 °C	120 °C	Yellow			Standard
Phoenix Contact 0825343	Polyamide			-40 °C	120 °C	Green			Standard	24 mm	5 mm	0.2 in	0.94 in
Phoenix Contact 0824868	Polyamide (PA), Nylon	Wire Marker, Cable Tie	Custom	-40 °C	120 °C	White	0.53 in	13.5 mm						29 mm	1.14 "
Phoenix Contact 0820439	Polyamide			-40 °C	120 °C	Yellow			Standard	24 mm	5 mm	0.2 in	0.94 in
Phoenix Contact 0820183	Polyamide (PA), Nylon	Wire Marker, Cable Tie	Blank	-40 °C	120 °C	White		0.31 in						1.14 in		29 mm	8 mm
Phoenix Contact 0820426	Polyamide (PA), Nylon	Wire Marker, Cable Tie	Blank	-40 °C	120 °C	White	0.94 "	24 mm						10 mm	0.39 "			4 mm	0.157 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Wire Marker, Cable Tie 0.94" W x 0.39" L (24.0mm x 10.0mm) White Polyamide (PA), Nylon
