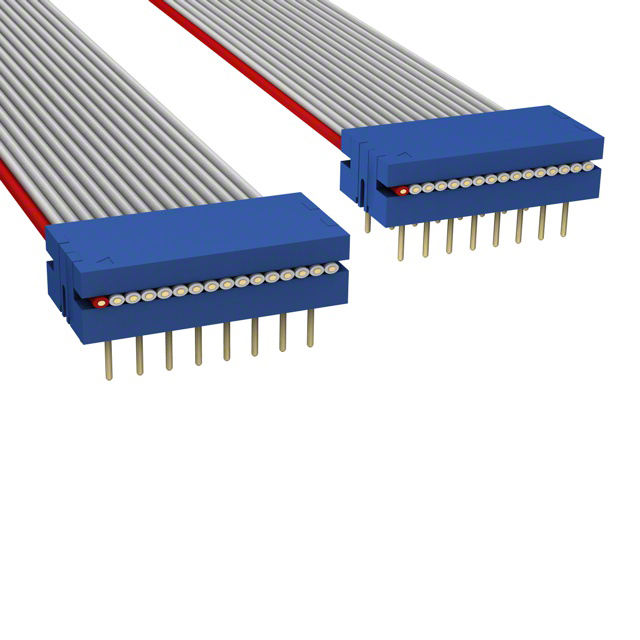

C0PPG-1606G

Active

CW Industries

DIP CABLE - CDP16G/AE16G/CDP16G

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsRibbon Cable Assembly Length Guide

C0PPG-1606G

Active

CW Industries

DIP CABLE - CDP16G/AE16G/CDP16G

Deep-Dive with AI

DocumentsRibbon Cable Assembly Length Guide

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 9.38
		10	$ 7.19
		25	$ 6.49
		50	$ 6.02
		100	$ 5.59
		250	$ 5.09
		500	$ 4.75
		1000	$ 4.44

Description

General part information

C0PPG-1 Series

16 Position Cable Assembly Rectangular DIP to DIP, Reversed 0.500' (152.40mm, 6.00")

Documents

Technical documentation and resources

Ribbon Cable Assembly Length Guide

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	C0PPG-1606G	C0PPG-1 Series

Cable Termination	IDC	IDC
Color	-	Ribbon, Multiple
Connector Type	DIP to DIP, Reversed	DIP to DIP, Reversed
Contact Finish	Gold	Gold
Contact Finish Thickness	10 Áin	10 Áin
Contact Finish Thickness	0.25 Ám	0.25 Ám
Length	152.4 mm	152.4 mm
Length	6 "	6 "
Length	0.5 '	0.5 '
Length	-	457.2 - 914.4 mm
Length	-	1.5 - 3 ft
Number of Positions	16	16
Number of Positions	-	14
Number of Rows	2	2
Pitch - Cable	0.05 "	0.05 "
Pitch - Cable	1.27 mm	1.27 mm
Pitch - Connector	0.1 in	0.1 in
Pitch - Connector	2.54 mm	2.54 mm
Shielding	Unshielded	Unshielded
Usage	Socket (0.3"), Board In	Socket (0.3"), Board In

C0PPG-1 Series

DIP CABLE - CDP16G/AE16G/CDP16G

Part	Contact Finish Thickness	Contact Finish Thickness	Shielding	Connector Type	Number of Positions	Usage	Cable Termination	Pitch - Connector	Pitch - Connector	Contact Finish	Number of Rows	Length [x]	Length [x]	Pitch - Cable	Pitch - Cable	Color	Number of Positions	Length	Length	Length
CW Industries C0PPG-1618G	10 Áin	0.25 Ám	Unshielded	DIP to DIP, Reversed	16	Board In, Socket (0.3")	IDC	0.1 in	2.54 mm	Gold	2	457.2 mm	1.5 ft	0.05 "	1.27 mm
CW Industries C0PPG-1636M	10 Áin	0.25 Ám	Unshielded	DIP to DIP, Reversed	16	Board In, Socket (0.3")	IDC	0.1 in	2.54 mm	Gold	2	914.4 mm	3 ft	0.05 "	1.27 mm	Multiple, Ribbon
CW Industries C0PPG-1418M	10 Áin	0.25 Ám	Unshielded	DIP to DIP, Reversed		Board In, Socket (0.3")	IDC	0.1 in	2.54 mm	Gold	2	457.2 mm	1.5 ft	0.05 "	1.27 mm	Multiple, Ribbon	14
CW Industries C0PPG-1418G	10 Áin	0.25 Ám	Unshielded	DIP to DIP, Reversed		Board In, Socket (0.3")	IDC	0.1 in	2.54 mm	Gold	2	457.2 mm	1.5 ft	0.05 "	1.27 mm		14
CW Industries C0PPG-1406G	10 Áin	0.25 Ám	Unshielded	DIP to DIP, Reversed		Board In, Socket (0.3")	IDC	0.1 in	2.54 mm	Gold	2			0.05 "	1.27 mm		14	152.4 mm	6 "	0.5 '
CW Industries C0PPG-1436M	10 Áin	0.25 Ám	Unshielded	DIP to DIP, Reversed		Board In, Socket (0.3")	IDC	0.1 in	2.54 mm	Gold	2	914.4 mm	3 ft	0.05 "	1.27 mm	Multiple, Ribbon	14
CW Industries C0PPG-1606G	10 Áin	0.25 Ám	Unshielded	DIP to DIP, Reversed	16	Board In, Socket (0.3")	IDC	0.1 in	2.54 mm	Gold	2			0.05 "	1.27 mm			152.4 mm	6 "	0.5 '
CW Industries C0PPG-1636G	10 Áin	0.25 Ám	Unshielded	DIP to DIP, Reversed	16	Board In, Socket (0.3")	IDC	0.1 in	2.54 mm	Gold	2	914.4 mm	3 ft	0.05 "	1.27 mm
CW Industries C0PPG-1606M	10 Áin	0.25 Ám	Unshielded	DIP to DIP, Reversed	16	Board In, Socket (0.3")	IDC	0.1 in	2.54 mm	Gold	2			0.05 "	1.27 mm	Multiple, Ribbon		152.4 mm	6 "	0.5 '
