RP8400B2M1CEBLKBLKRED

Active

E-Switch

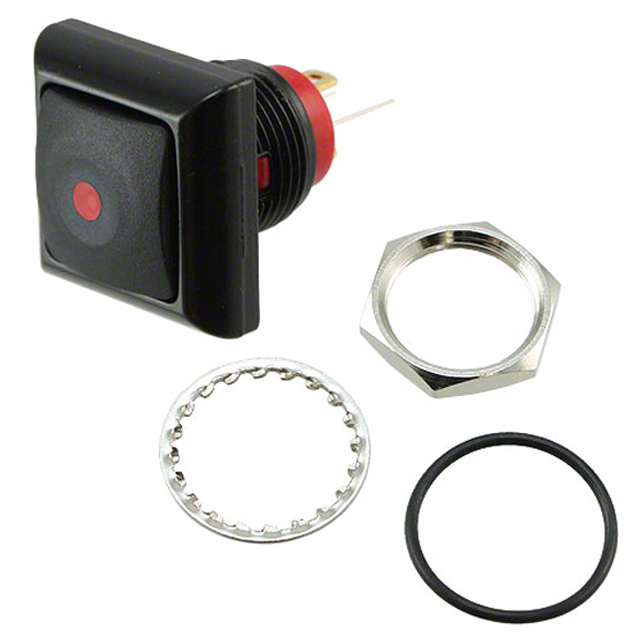

SWITCH: PUSH-BUTTON; POS: 2; SPST-NO; 0.2A/50VDC; 0.5A/48VAC; BLACK

Search across all available documentation for this part.

Active

E-Switch

SWITCH: PUSH-BUTTON; POS: 2; SPST-NO; 0.2A/50VDC; 0.5A/48VAC; BLACK

Technical Specifications

Parameters and characteristics for this part

Specification	RP8400B2M1CEBLKBLKRED

Actuator Marking	No Marking
Actuator Type	Button, Square
Circuit	SPST-NO
Color - Actuator/Cap	Black
Current Rating (Amps)	125 mA, 100 mA
Electrical Life	500000 Cycles
Illumination Type, Color	Red, LED
Illumination Voltage (Nominal)	2.1 VDC
Ingress Protection	IP67 - Dust Tight, Waterproof
Mounting Type	Panel Mount, Front
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-30 ░C
Panel Cutout Dimensions [diameter]	13.6 mm
Switch Function	Off-Mom
Termination Style	Solder Lug
Type	Illuminated, Standard
Voltage Rating - AC	125 V
Voltage Rating - DC	50 VDC

Part	Illumination Voltage (Nominal)	Current Rating (Amps)	Actuator Type	Color - Actuator/Cap	Actuator Marking	Voltage Rating - AC	Panel Cutout Dimensions [diameter]	Voltage Rating - DC	Electrical Life	Illumination Type, Color	Circuit	Switch Function	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Termination Style	Type	Ingress Protection
E-Switch RP8400B2M1CEBLKBLKRED	2.1 VDC	100 mA 125 mA	Button Square	Black	No Marking	125 V	13.6 mm	50 VDC	500000 Cycles	LED Red	SPST-NO	Off-Mom	Panel Mount Front	-30 ░C	85 °C	Solder Lug	Illuminated Standard	IP67 - Dust Tight Waterproof
E-Switch RP8400B2M1CENICBLKBLU	2.8 VDC	100 mA 125 mA	Button Square	Black	No Marking	125 V	13.6 mm	50 VDC	500000 Cycles	Blue LED	SPST-NO	Off-Mom	Panel Mount Front	-30 ░C	85 °C	Solder Lug	Illuminated Standard	IP67 - Dust Tight Waterproof
E-Switch RP8400B2M1CENICBLKNIL		100 mA 125 mA	Button Square	Black	No Marking	125 V	13.6 mm	50 VDC	500000 Cycles		SPST-NO	Off-Mom	Panel Mount Front	-30 ░C	85 °C	Solder Lug	Standard	IP67 - Dust Tight Waterproof
E-Switch RP8400B2M1CECHRBLUNIL		100 mA 125 mA	Button Square	Blue	No Marking	125 V	13.6 mm	50 VDC	500000 Cycles		SPST-NO	Off-Mom	Panel Mount Front	-30 ░C	85 °C	Solder Lug	Standard	IP67 - Dust Tight Waterproof
