2382-0
ActivePomona Electronics

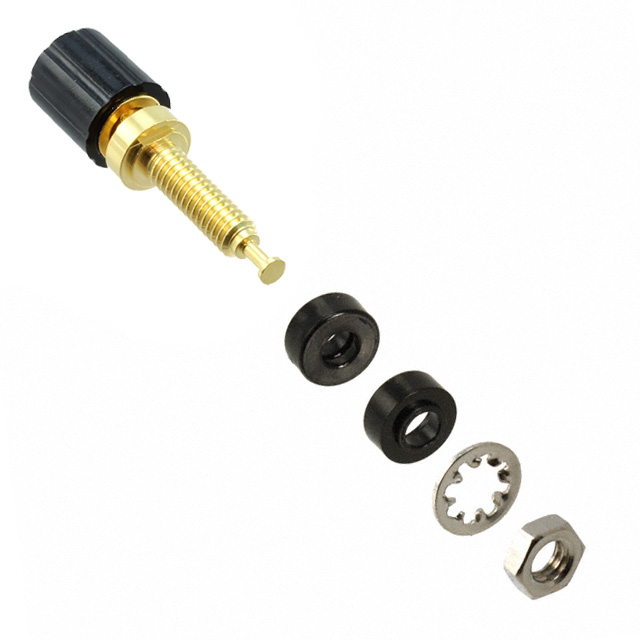

TEST PLUGS & TEST JACKS BINDING POST, MINI INSULATED NYLON, BLACK
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
2382-0
ActivePomona Electronics
TEST PLUGS & TEST JACKS BINDING POST, MINI INSULATED NYLON, BLACK
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 2382-0 |
|---|---|
| Color | Black |
| Current Rating (Amps) | 5 A |
| Head Size [custom] | 0.086 in |
| Head Size [custom] | 2.18 mm |
| Head Size [diameter] | 9.65 mm |
| Head Size [diameter] | 0.38 in |
| Material - Body | Brass |
| Material - Insulation | Polycarbonate |
| Material - Insulation | PC |
| Nut Material | Brass |
| Nut Plating | Nickel |
| Panel Thickness [Max] | 0.17 " |
| Panel Thickness [Max] | 4.32 mm |
| Panel Thickness [Min] | 0.07 " |
| Panel Thickness [Min] | 1.78 mm |
| Plating - Body [custom] | Gold |
| Termination | Turret, Threaded |
| Termination Thread | 8-32 |
| Type | Miniature |
| Voltage Rating | 1500 V rms |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 11.04 | |
Description
General part information
2382 Series
Binding Post Connector Miniature Knurled Black Gold
