TEP 75-2415WI-CM
ActiveTraco Power
DC/DC CONVERTER 24V 77W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
TEP 75-2415WI-CM
ActiveTraco Power
DC/DC CONVERTER 24V 77W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | TEP 75-2415WI-CM |
|---|---|
| Applications | Railway, ITE (Commercial) |
| Approval Agency | CB, cURus, CE |
| Current - Output (Max) [Max] | 3.2 A |
| Efficiency | 87 % |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 75 ░C |
| Operating Temperature [Min] | -40 °C |
| Power (Watts) | 77 W |
| Size / Dimension [x] | 3.35 in |
| Size / Dimension [x] | 85.1 mm |
| Size / Dimension [y] | 2.4 " |
| Size / Dimension [y] | 61 mm |
| Size / Dimension [z] | 27.9 mm |
| Size / Dimension [z] | 1.1 in |
| Type | Open Frame |
| Voltage - Input (Max) [Max] | 36 V |
| Voltage - Input (Min) [Min] | 9 V |
| Voltage - Isolation | 3000 V |
| Voltage - Output 1 | 24 V |
TEP 75 Series
| Part | Approval Agency | Voltage - Input (Max) [Max] | Type | Number of Outputs | Applications | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [z] | Efficiency | Voltage - Output 1 | Mounting Type | Current - Output (Max) [Max] | Voltage - Isolation | Operating Temperature [Min] | Operating Temperature [Max] | Voltage - Input (Min) [Min] | Power (Watts) | Supplier Device Package | Features | Package / Case |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Traco Power | CB CE cURus | 75 V | Open Frame | 1 | ITE (Commercial) Railway | 3.35 in | 2.4 " | 85.1 mm | 27.9 mm | 61 mm | 1.1 in | 90 % | 12 V | Chassis Mount | 6.3 A | 3000 V | -40 °C | 75 ░C | 18 V | 76 W | |||
Traco Power | CB CE cURus | 160 V | Open Frame | 1 | ITE (Commercial) Railway | 3.35 in | 2.4 " | 85.1 mm | 38.9 mm | 61 mm | 1.53 in | 90 % | 28 V | Chassis Mount | 2.7 A | 3000 V | -40 °C | 75 ░C | 43 V | 76 W | |||
Traco Power | CB CE cURus | 36 V | Open Frame | 1 | ITE (Commercial) Railway | 3.35 in | 2.4 " | 85.1 mm | 38.9 mm | 61 mm | 1.53 in | 87 % | 24 V | Chassis Mount | 3.2 A | 3000 V | -40 °C | 75 ░C | 9 V | 77 W | |||
Traco Power | CB CE cURus | 75 V | Open Frame | 1 | ITE (Commercial) Railway | 3.35 in | 2.4 " | 85.1 mm | 38.9 mm | 61 mm | 1.53 in | 88 % | 24 V | Chassis Mount | 3.2 A | 3000 V | -40 °C | 75 ░C | 18 V | 77 W | |||
Traco Power | CB CE cURus | 36 V | Open Frame | 1 | ITE (Commercial) Railway | 3.35 in | 2.4 " | 85.1 mm | 38.9 mm | 61 mm | 1.53 in | 88 % | 5 V | Chassis Mount | 15 A | 3000 V | -40 °C | 75 ░C | 9 V | 75 W | |||
Traco Power | 36 V | Isolated Module | 1 | ITE (Commercial) Railway | 2.4 in | 2.28 in | 61 mm | 12.7 mm | 57.9 mm | 0.5 in | 3.3 V | Through Hole | 20 A | 2250 VDC | -40 °C | 75 ¯C | 9 V | Half Brick | OTP OVP Remote On/Off SCP UVLO | Half Brick | |||
Traco Power | 75 V | Isolated Module | 1 | ITE (Commercial) Railway | 2.4 in | 2.28 in | 61 mm | 12.7 mm | 57.9 mm | 0.5 in | 88 % | 24 V | Through Hole | 3.2 A | 2250 VDC | -40 °C | 75 ░C | 18 V | 77 W | OTP OVP Remote On/Off SCP UVLO | 9-DIP Module | ||
Traco Power | CB CE cURus | 36 V | Open Frame | 1 | ITE (Commercial) Railway | 3.35 in | 2.4 " | 85.1 mm | 27.9 mm | 61 mm | 1.1 in | 88 % | 15 V | Chassis Mount | 5 A | 3000 V | -40 °C | 75 ░C | 9 V | 75 W | |||
Traco Power | CB CE cURus | 75 V | Open Frame | 1 | ITE (Commercial) Railway | 3.35 in | 2.4 " | 85.1 mm | 27.9 mm | 61 mm | 1.1 in | 88 % | 28 V | Chassis Mount | 2.7 A | 3000 V | -40 °C | 75 ░C | 18 V | 76 W | |||
Traco Power | CB CE cURus | 36 V | Open Frame | 1 | ITE (Commercial) Railway | 3.35 in | 2.4 " | 85.1 mm | 27.9 mm | 61 mm | 1.1 in | 87 % | 24 V | Chassis Mount | 3.2 A | 3000 V | -40 °C | 75 ░C | 9 V | 77 W |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 187.50 | |
| 10 | $ 173.06 | |||
| 25 | $ 169.35 | |||
| 50 | $ 166.58 | |||
| 100 | $ 139.20 | |||
Description
General part information
TEP 75 Series

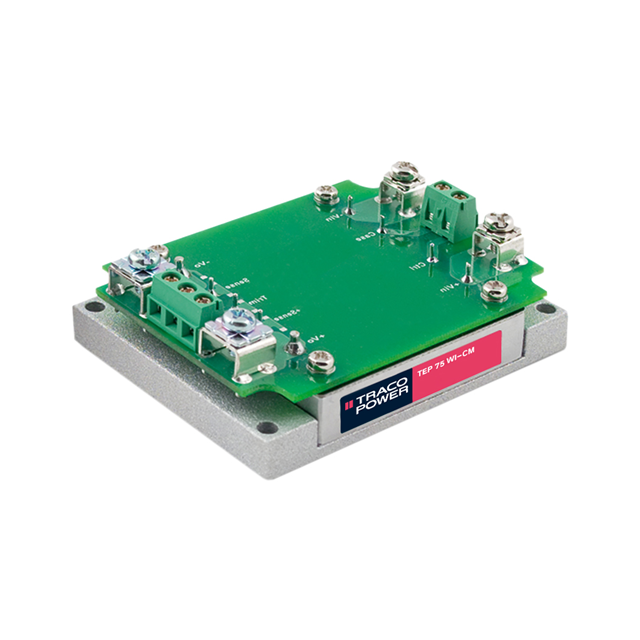

Open Frame DC DC Converter 1 Output 24V 3.2A 36V Input
