0368-0-33-01-13-27-10-0

Active

Mill-Max Manufacturing Corp.

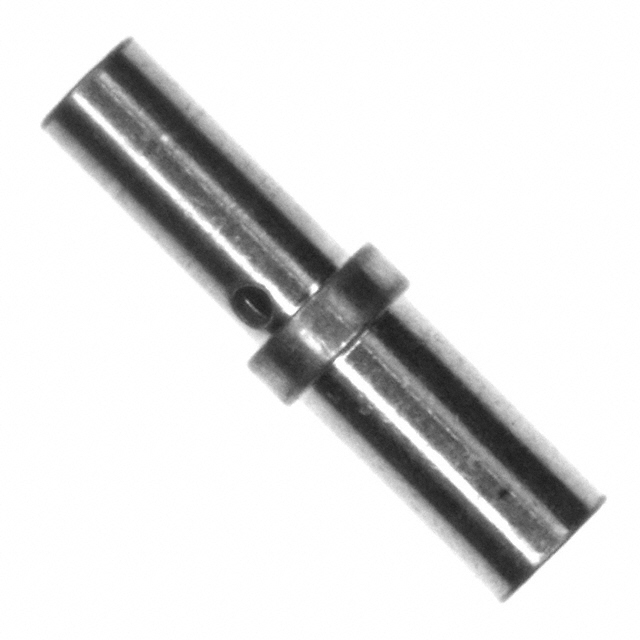

CONN PIN RCPT .048-.064 SOLDER

Search across all available documentation for this part.

Active

Mill-Max Manufacturing Corp.

CONN PIN RCPT .048-.064 SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	0368-0-33-01-13-27-10-0

Accepts Pin Diameter [Max] [diameter]	1.63 mm
Accepts Pin Diameter [Max] [diameter]	0.064 "
Accepts Pin Diameter [Min] [diameter]	0.048 "
Accepts Pin Diameter [Min] [diameter]	1.22 mm
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Material	Beryllium Copper
Flange Diameter [diameter]	0.141 in
Flange Diameter [diameter]	3.58 mm
Length - Overall [x]	0.531 "
Length - Overall [x]	13.5 mm
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pin Hole Diameter [diameter]	0.088 in
Pin Hole Diameter [diameter]	2.24 mm
Socket Depth	4.57 mm
Socket Depth	0.18 in
Tail Type	Crimp
Termination	Solder

Part	Pin Hole Diameter [diameter]	Pin Hole Diameter [diameter]	Tail Type	Length - Overall [x]	Length - Overall [x]	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish	Contact Material	Contact Finish Thickness	Contact Finish Thickness	Accepts Pin Diameter [Max] [diameter]	Accepts Pin Diameter [Min] [diameter]	Accepts Pin Diameter [Min] [diameter]	Accepts Pin Diameter [Max] [diameter]	Termination	Flange Diameter [diameter]	Flange Diameter [diameter]	Socket Depth	Socket Depth
Mill-Max Manufacturing Corp. 0368-0-33-80-13-80-10-0	0.088 in	2.24 mm	Crimp	0.531 "	13.5 mm	-55 °C	125 °C	Tin	Beryllium Copper	200 Áin	5.08 Ám	1.63 mm	0.048 "	1.22 mm	0.064 "	Solder	0.141 in	3.58 mm	4.57 mm	0.18 in
Mill-Max Manufacturing Corp. 0368-0-33-15-13-14-10-0	0.088 in	2.24 mm	Crimp	0.531 "	13.5 mm	-55 °C	125 °C	Gold	Beryllium Copper	10 Áin	0.25 Ám	1.63 mm	0.048 "	1.22 mm	0.064 "	Solder	0.141 in	3.58 mm	4.57 mm	0.18 in
Mill-Max Manufacturing Corp. 0368-0-33-01-13-27-10-0	0.088 in	2.24 mm	Crimp	0.531 "	13.5 mm	-55 °C	125 °C	Gold	Beryllium Copper	30 Áin	0.76 Ám	1.63 mm	0.048 "	1.22 mm	0.064 "	Solder	0.141 in	3.58 mm	4.57 mm	0.18 in
Mill-Max Manufacturing Corp. 0368-0-33-80-13-27-10-0	0.088 in	2.24 mm	Crimp	0.531 "	13.5 mm	-55 °C	125 °C	Gold	Beryllium Copper	30 Áin	0.76 Ám	1.63 mm	0.048 "	1.22 mm	0.064 "	Solder	0.141 in	3.58 mm	4.57 mm	0.18 in
Mill-Max Manufacturing Corp. 0368-0-33-80-13-14-10-0	0.088 in	2.24 mm	Crimp	0.531 "	13.5 mm	-55 °C	125 °C	Gold	Beryllium Copper	10 Áin	0.25 Ám	1.63 mm	0.048 "	1.22 mm	0.064 "	Solder	0.141 in	3.58 mm	4.57 mm	0.18 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pin Receptacle Connector 0.048" ~ 0.064" (1.22mm ~ 1.63mm) Crimp Solder
