FMAC-091D-5010

Active

SCHURTER Inc.

THREE-PHASE (ANGLE CONNECTION) BASE INSTALLATION EMC FILTERS ROHS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

FMAC-091D-5010

Active

SCHURTER Inc.

THREE-PHASE (ANGLE CONNECTION) BASE INSTALLATION EMC FILTERS ROHS

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 187.38
		50	$ 158.55
LCSC	Piece	1	$ 246.40
		200	$ 98.32
		500	$ 95.03

Description

General part information

FMAC Series

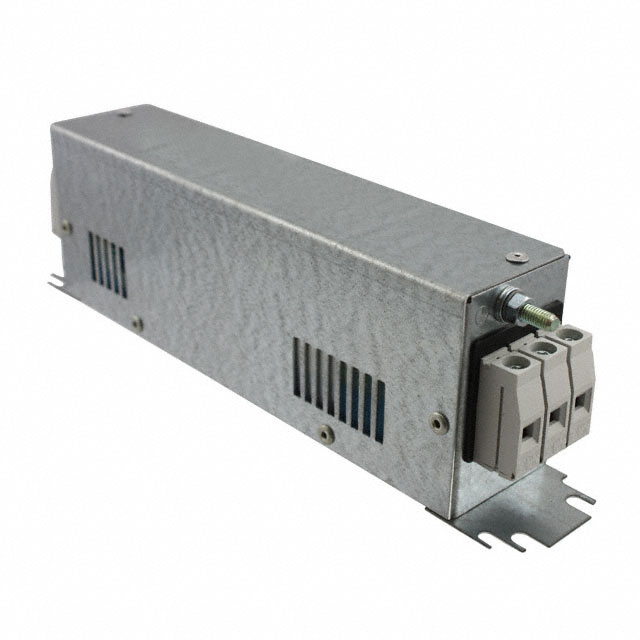

Three Phase (Delta) EMC/EMI Line Filter 50 A 480V 50/60Hz Single Stage Terminal Block

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	FMAC-091D-5010	FMAC Series

Applications	Power Drive Systems, Inverters	Photovoltaic Inverter, Power Drive Systems, Inverters, General Purpose
Approval Agency	cURus, VDE, ENEC	cURus, VDE, ENEC
Configuration	Single Stage	Single Stage
Current	50 A	8 - 550 A
Filter Type	Three Phase (Delta)	Three Phase (Delta)
Frequency - Operating [Max]	60 Hz	60 Hz
Frequency - Operating [Min]	50 Hz	50 Hz
Inductance	650 µH	1 - 700 µH
Mounting Type	Chassis Mount	Chassis Mount, DIN Rail
Operating Temperature [custom]	100 °C, -25 °C	-25 - 100 °C
Termination Style	Terminal Block	Terminal Block, Terminal Post
Voltage - Rated AC	480 V	480 - 550 V
Voltage - Rated AC	-	520 V
Voltage - Rated AC	-	480 V

FMAC Series

LINE FILTER 480V/520VAC 64A CHAS

Part	Applications	Approval Agency	Inductance	Filter Type	Voltage - Rated AC [Max]	Voltage - Rated AC [Min]	Mounting Type	Termination Style	Operating Temperature [custom]	Configuration	Frequency - Operating [Max]	Frequency - Operating [Min]	Current	Voltage - Rated AC
SCHURTER Inc. FMAC-0934-6410L	Photovoltaic Inverter	cURus, ENEC, VDE	600 µH	Three Phase (Delta)	520 V	480 V	Chassis Mount	Terminal Block	-25 °C, 100 °C	Single Stage	60 Hz	50 Hz	64 A
SCHURTER Inc. FMAC-091G-H210	Inverters, Power Drive Systems	cURus, ENEC, VDE	480 µH	Three Phase (Delta)			Chassis Mount	Terminal Block	-25 °C, 100 °C	Single Stage	60 Hz	50 Hz	150 A	480 V
SCHURTER Inc. FMAC-0956-H312I	Photovoltaic Inverter	cURus, ENEC, VDE	300 µH	Three Phase (Delta)	520 V	480 V	Chassis Mount	Terminal Block	-25 °C, 100 °C	Single Stage	60 Hz	50 Hz	250 A
SCHURTER Inc. FMAC-0A27-1613	General Purpose	cURus, ENEC, VDE	200 µH	Three Phase (Delta)			Chassis Mount	Terminal Block	-25 °C, 100 °C	Single Stage	60 Hz	50 Hz	16 A	550 V
SCHURTER Inc. FMAC-091C-1610	Inverters, Power Drive Systems	cURus, ENEC, VDE	550 µH	Three Phase (Delta)			Chassis Mount	Terminal Block	-25 °C, 100 °C	Single Stage	60 Hz	50 Hz	16 A	480 V
SCHURTER Inc. FMAC-091D-5010	Inverters, Power Drive Systems	cURus, ENEC, VDE	650 µH	Three Phase (Delta)			Chassis Mount	Terminal Block	-25 °C, 100 °C	Single Stage	60 Hz	50 Hz	50 A	480 V
SCHURTER Inc. FMAC-0934-3610	Photovoltaic Inverter	cURus, ENEC, VDE	1.5 mH	Three Phase (Delta)	520 V	480 V	Chassis Mount	Terminal Block	-25 °C, 100 °C	Single Stage	60 Hz	50 Hz	36 A
SCHURTER Inc. FMAC-0956-H350	Photovoltaic Inverter	cURus, ENEC, VDE	300 µH	Three Phase (Delta)	520 V	480 V	Chassis Mount	Terminal Block	-25 °C, 100 °C	Single Stage	60 Hz	50 Hz	250 A
SCHURTER Inc. FMAC-0957-H650	Photovoltaic Inverter	cURus, ENEC, VDE	200 µH	Three Phase (Delta)	520 V	480 V	Chassis Mount	Terminal Post	-25 °C, 100 °C	Single Stage	60 Hz	50 Hz	550 A
SCHURTER Inc. FMAC-0A38-3213	General Purpose	cURus, ENEC, VDE	200 µH	Three Phase (Delta)			Chassis Mount	Terminal Block	-25 °C, 100 °C	Single Stage	60 Hz	50 Hz	32 A	550 V
