Description

General part information

71V2556 Series

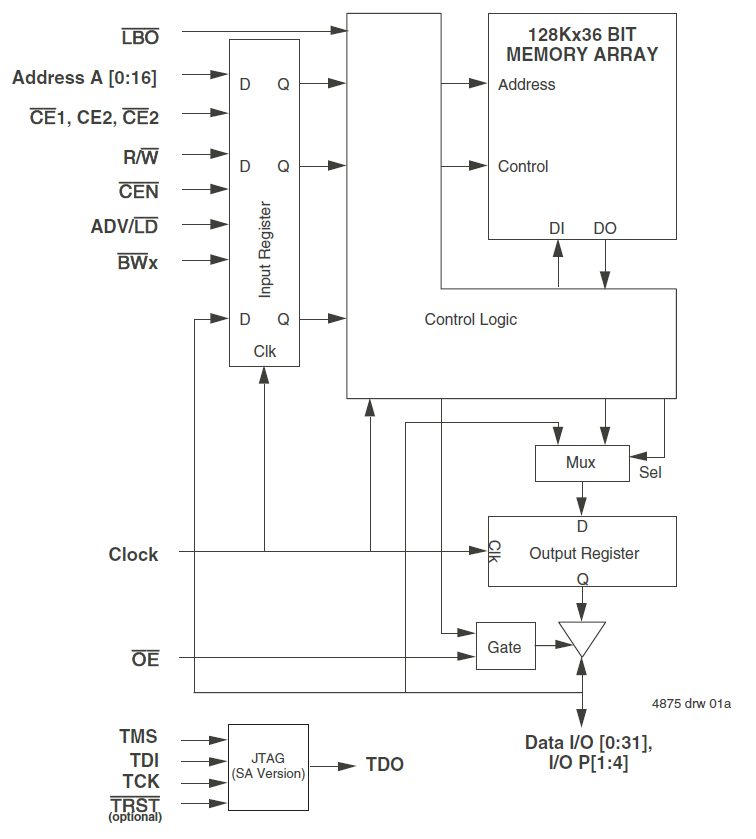

The 71V2556 3.3V CMOS synchronous SRAM, organized as 128K x 36, is designed to eliminate dead bus cycles when turning the bus around between reads and writes or writes and reads. Thus, it has been given the name ZBT™, or Zero Bus Turnaround. The 71V2556 contains data I/O, address, and control signal registers. It can provide four cycles of data for a single address presented to the SRAM.

Technical Specifications

Parameters and characteristics for this part

Specification	71V2556S133PFGI

Access Time	4.2 ns
Clock Frequency	133 MHz
Memory Depth	128 K
Memory Format	SRAM
Memory Interface (Type)	Parallel
Memory Size	4.5 Mbit
Memory Type	Volatile
Memory Width	36 bit
Mounting Type	Surface Mount
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-40 °C
Package / Case	100-LQFP
Package Length	14 mm
Package Name	100-TQFP
Package Width	14 mm
Technology	SDR (ZBT), SRAM - Synchronous
Voltage - Supply (Maximum)	3.465 V
Voltage - Supply (Minimum)	3.135 V

71V2556 Series

3.3V 128Kx36 ZBT Synchronous Pipelined SRAM with 2.5V I/O

Part	Mounting Type	Access Time	Memory Format	Package / Case	Operating Temperature (Min)	Operating Temperature (Max)	Clock Frequency	Package Width	Package Name	Package Length	Memory Type	Memory Interface (Type)	Memory Width	Memory Depth	Voltage - Supply (Minimum)	Voltage - Supply (Maximum)	Technology	Memory Size
Renesas Electronics Corporation 71V2556S133PFG8	Surface Mount	4.2 ns	SRAM	100-LQFP	0 °C	70 °C	133 MHz	14 mm	100-TQFP	14 mm	Volatile	Parallel	36 bit	128 K	3.135 V	3.465 V	SDR (ZBT) SRAM - Synchronous	4.5 Mbit
Renesas Electronics Corporation 71V2556S133PFGI	Surface Mount	4.2 ns	SRAM	100-LQFP	-40 °C	85 °C	133 MHz	14 mm	100-TQFP	14 mm	Volatile	Parallel	36 bit	128 K	3.135 V	3.465 V	SDR (ZBT) SRAM - Synchronous	4.5 Mbit
Renesas Electronics Corporation 71V2556S100PFGI	Surface Mount	5 ns	SRAM	100-LQFP	-40 °C	85 °C	100 MHz	14 mm	100-TQFP	14 mm	Volatile	Parallel	36 bit	128 K	3.135 V	3.465 V	SDR (ZBT) SRAM - Synchronous	4.5 Mbit
Renesas Electronics Corporation 71V2556S166PFGI8	Surface Mount	3.5 ns	SRAM	100-LQFP	-40 °C	85 °C	166 MHz	14 mm	100-TQFP	14 mm	Volatile	Parallel	36 bit	128 K	3.135 V	3.465 V	SDR (ZBT) SRAM - Synchronous	4.5 Mbit
Renesas Electronics Corporation 71V2556SA100BG8	Surface Mount	5 ns	SRAM	119-BGA	0 °C	70 °C	100 MHz	22 mm	119-PBGA	14 mm	Volatile	Parallel	36 bit	128 K	3.135 V	3.465 V	SDR (ZBT) SRAM - Synchronous	4.5 Mbit
Renesas Electronics Corporation 71V2556SA166BG	Surface Mount	3.5 ns	SRAM	119-BGA	0 °C	70 °C	166 MHz	22 mm	119-PBGA	14 mm	Volatile	Parallel	36 bit	128 K	3.135 V	3.465 V	SDR (ZBT) SRAM - Synchronous	4.5 Mbit
Renesas Electronics Corporation 71V2556S100PFGI8	Surface Mount	5 ns	SRAM	100-LQFP	-40 °C	85 °C	100 MHz	14 mm	100-TQFP	14 mm	Volatile	Parallel	36 bit	128 K	3.135 V	3.465 V	SDR (ZBT) SRAM - Synchronous	4.5 Mbit
Renesas Electronics Corporation 71V2556SA100BGI8	Surface Mount	5 ns	SRAM	119-BGA	-40 °C	85 °C	100 MHz	22 mm	119-PBGA	14 mm	Volatile	Parallel	36 bit	128 K	3.135 V	3.465 V	SDR (ZBT) SRAM - Synchronous	4.5 Mbit
Renesas Electronics Corporation 71V2556S150PFGI8	Surface Mount	3.8 ns	SRAM	100-LQFP	-40 °C	85 °C	150 MHz	14 mm	100-TQFP	14 mm	Volatile	Parallel	36 bit	128 K	3.135 V	3.465 V	SDR (ZBT) SRAM - Synchronous	4.5 Mbit
Renesas Electronics Corporation 71V2556S100PFG	Surface Mount	5 ns	SRAM	100-LQFP	0 °C	70 °C	100 MHz	14 mm	100-TQFP	14 mm	Volatile	Parallel	36 bit	128 K	3.135 V	3.465 V	SDR (ZBT) SRAM - Synchronous	4.5 Mbit
