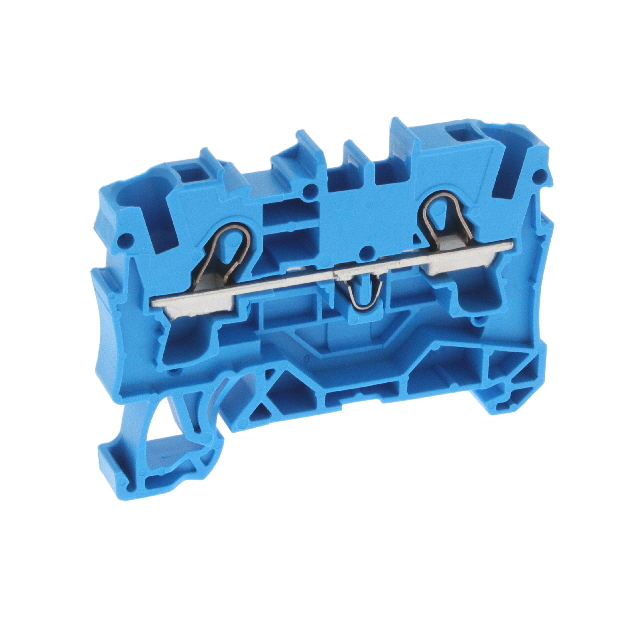

2004-1204

Active

WAGO Corporation

2-CONDUCTOR THROUGH TERMINAL BLO

Search across all available documentation for this part.

Active

WAGO Corporation

2-CONDUCTOR THROUGH TERMINAL BLO

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	2004-1204	2004-12 Series

Color	Blue	Gray, Green, Yellow, Blue
Current - IEC	41 A	41 A
Current - UL	30 A	30 A
For Use With/Related Products	-	TOPJOB®S Series
Material - Insulation	Polyamide (PA66), Nylon 6/6	Polyamide (PA66), Nylon 6/6
Number of Levels	1	1
Number of Positions	2	2
Stripping Length [Max]	13 mm	13 mm
Stripping Length [Min]	11 mm	11 mm
Terminal - Width [y]	6.2 mm	6.2 mm
Termination Style	Push In, Spring	Push In, Spring
Type	Feed Through	Feed Through, End Plate, Ground, Earth
Voltage - IEC	800 V	800 V
Voltage - UL	600 V	600 V
Wire Gauge or Range - AWG [Max]	14 AWG	14 AWG
Wire Gauge or Range - AWG [Min]	10 AWG	10 AWG
Wire Gauge or Range - mm² [Max]	6 mm²	6 mm²
Wire Gauge or Range - mm² [Min]	1.5 mm²	1.5 mm²

DIN RAIL MOUNT TERMINAL BLOCK, 2 POSITIONS, 20 AWG, 10 AWG, 4 MM², CLAMP, 32 A

Part	Number of Levels	Current - IEC	Color	Terminal - Width [y]	Voltage - UL	Type	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - AWG [Min]	Termination Style	Current - UL	Stripping Length [Max]	Stripping Length [Min]	Wire Gauge or Range - mm² [Max]	Wire Gauge or Range - mm² [Min]	Material - Insulation	Voltage - IEC	Number of Positions	For Use With/Related Products
WAGO Corporation 2004-1201	1	41 A	Gray	6.2 mm	600 V	Feed Through	14 AWG	10 AWG	Push In, Spring	30 A	13 mm	11 mm	6 mm²	1.5 mm²	Polyamide (PA66), Nylon 6/6	800 V	2
WAGO Corporation 2004-1291			Gray			End Plate												TOPJOB®S Series
WAGO Corporation 2004-1207	1		Green, Yellow	6.2 mm		Ground, Earth	14 AWG	10 AWG	Push In, Spring		13 mm	11 mm	6 mm²	1.5 mm²	Polyamide (PA66), Nylon 6/6		2
WAGO Corporation 2004-1292						End Plate												TOPJOB®S Series
WAGO Corporation 2004-1204	1	41 A	Blue	6.2 mm	600 V	Feed Through	14 AWG	10 AWG	Push In, Spring	30 A	13 mm	11 mm	6 mm²	1.5 mm²	Polyamide (PA66), Nylon 6/6	800 V	2

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Terminal Block Connector 2 Position Feed Through Blue 10-14 AWG
